Brand: Erico
563608

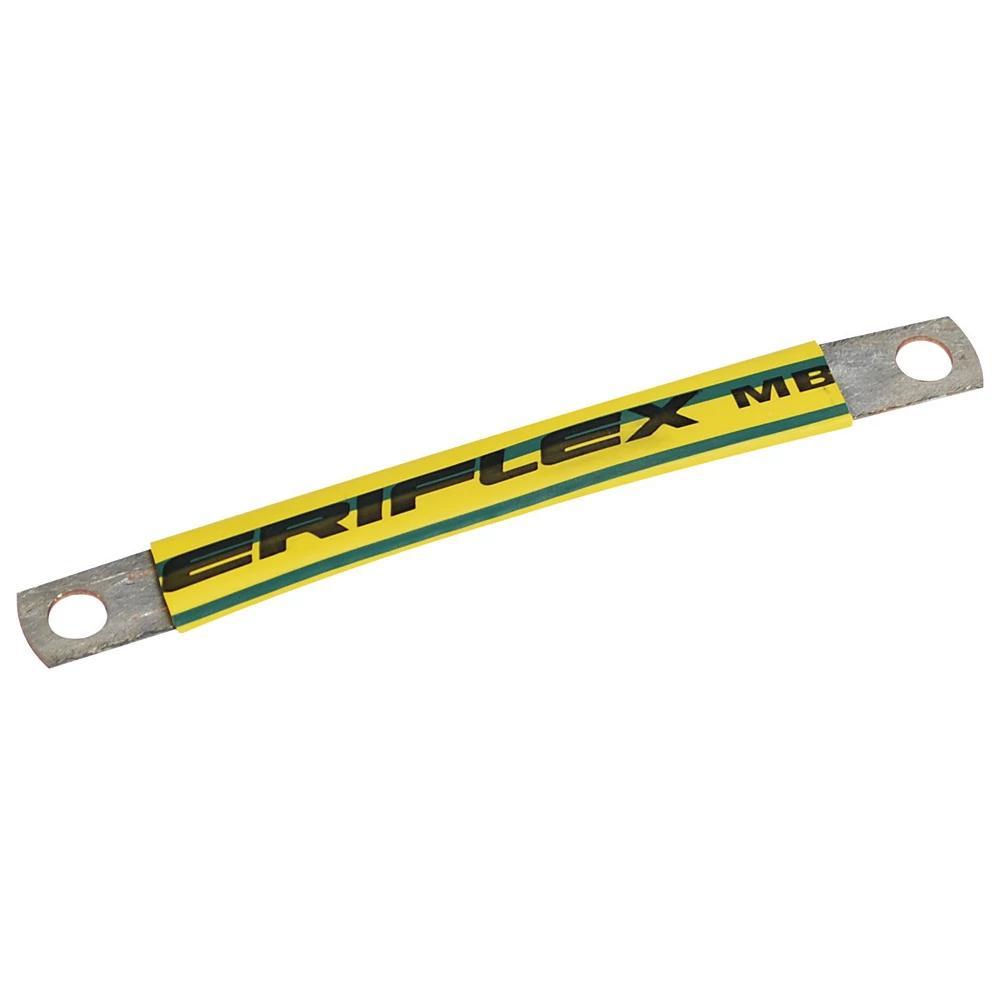

Erico 563608 Nvent Eriflex Grounding And Bonding Braid
Part Number # 563608
SKU # 2398637
$120.40 / 10Each
Typical price:$178.60 / Each
Erico 563608 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 563608 |
| SKU #: | 2398637 |
| Amperage Rating: | 75 A |
| Cable Size: | 19.74 kcmil |
| Finish: | Tin Plated |
| Mounting Hole Size: | 0.256 in |
| Series: | MBJYG |
| Thickness: | 0.043 in |
| Country of origin: | FR |
| Length: | 7.874 in |
| Material: | Copper/Polyolefin |
| Width: | 0.433 in |
| Manufacturer Name: | nVent |
| UNSPSC: | 26121517 |
| UPC: | 00078285695162 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$120.40 / 10Each
Typical price:$178.60 / Each
Quantity:
- nVent ERIFLEX Grounding and Bonding Braid, Series: MBJYG, 19.74 kcmil Cable, 7.874 in Length, 0.433 in Width, 0.043 in Thickness, 75 A, 15 kV/mm Tensile, 0.256 in Mounting Hole, Copper/Polyolefin, Tin Plated
563608 Item Features
- Complete range of earth/ground flexible connections from 6 - 25 mm sq (11.84 - 49.33 kcmil) cross section and from 100 - 300 mm (3.937 in - 11.811 in) length
- Integral palm, without tin or crimped lugs for superior electrical contact and tensile strength resistance
- Resistant to vibration and fatigue, reducing maintenance
- Provides weight savings, material savings and lower impedance when compared to similar lugged cables with insulation
- Ready to use out of the box, eliminates the need for cutting, stripping, crimping and punching
- Halogen free and flame retardant yellow green insulation
- Quick and easy to install
- Recommended by the EMC/EMI directives and less impedance than cables
563608 Standards
cULus Listed|CE Certified|CSA Certified|Bureau Veritas Certified|RoHS Compliant|UL 467|UL 224 VW-1 Flammability Rating|EN 14582|IEC 60439-1/61439-1SKU #2398637Part Number #563608UNSPSC26121517UPC00078285695162
