Brand: Erico
Erico 569050 Electrical Connector Assembly
Part Number # 569050
SKU # 2137254
Brand: Erico
569050
Erico 569050 Electrical Connector Assembly
Part Number # 569050
SKU # 2137254
$58.69 / Each
Typical price:$87.04 / Each
Erico 569050 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 569050 |
| SKU #: | 2137254 |
| Amperage Rating: | 400/335 A |
| Dimensions: | 3.79 in H x 1.93 in W x 1.99 in D |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | ERI2 |
| Short Circuit Current Rating (kA): | 100 kA |
| Wire Size: | (2) 8 to 1 AWG |
| Country of origin: | CN |
| Material: | Copper/Thermoplastic |
| Manufacturer Name: | nVent |
| UNSPSC: | 39121421 |
| UPC: | 00078285659423 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.69 / Each
Typical price:$87.04 / Each
Quantity:

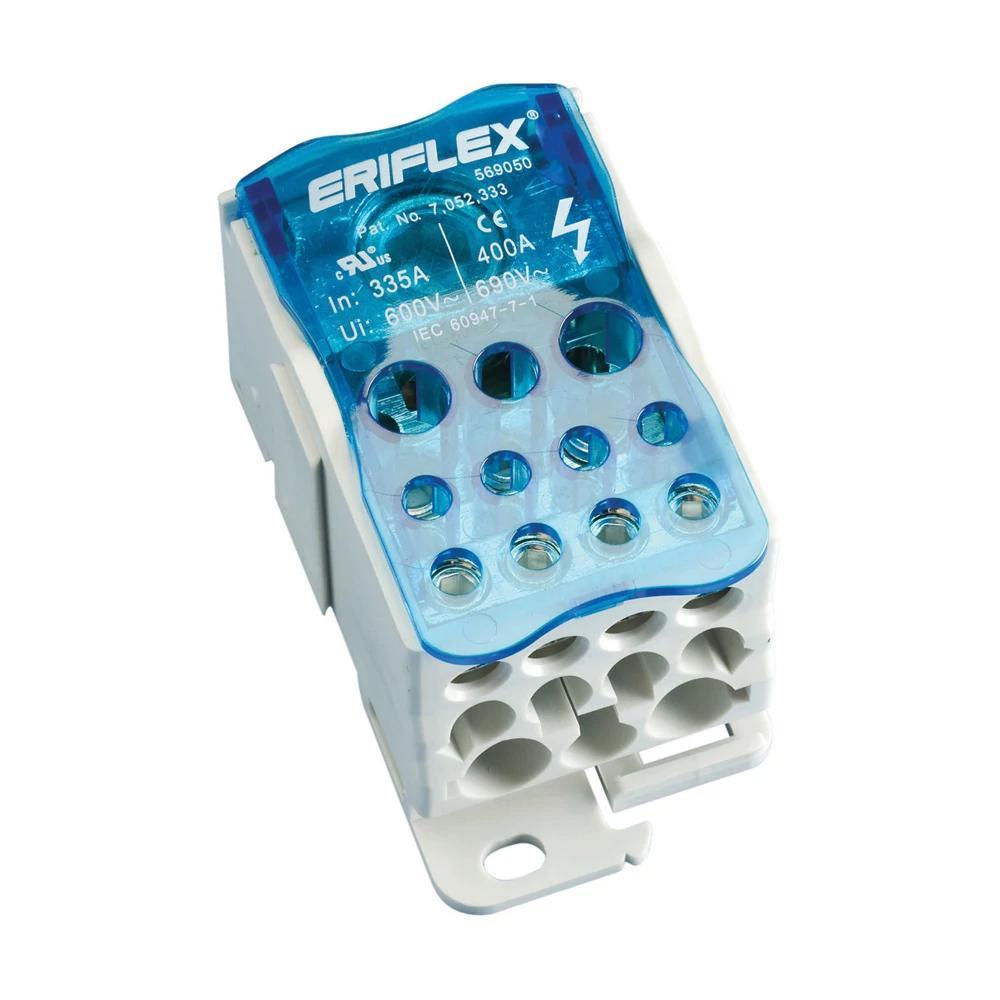

- nVent ERIFLEX Distribution Block, Series: ERI2, 600 V AC, 1000 V AC/DC, 400/335 A, 1 Pole, 1 Primary Connections/Pole, 11/Pole Secondary Connection/Pole, (2) 8 to 1 AWG Wire, 100 kA Short Circuit, Copper/Thermoplastic, Tin Plated, 3.79 in H x 1.93 in W x 1.99 in D Dimensions
569050 Includes
569050569050 Item Features
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
- Screw retaining cover is hinged and removable
- Design allows for visual inspection of conductor and confirmation of connection
- Modular snap-together blocks for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- https://youtu.be://4s_sucFZ_hQ
569050 Standards
UL 1059 E198301|cUL CSA C22.2 No. 158|E198301|UL 94V-0|CSA C22.2 No. 158-10, 70044370|IEC 60947-7-1|IEC 60529|IP20|EAC 0234267|RoHS CompliantSKU #2137254Part Number #569050UNSPSC39121421UPC00078285659423
Image provided may only be a representation of final product and may include optional equipment
