Brand: Erico
Erico 569209 Electrical Connector Assembly
Part Number # 569209
SKU # 2411771
Brand: Erico
569209
Erico 569209 Electrical Connector Assembly
Part Number # 569209
SKU # 2411771
$163.65 / Each
Typical price:$242.72 / Each
Erico 569209 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | 569209 |
| SKU #: | 2411771 |
| Amperage Rating: | 950/1250 A |
| Dimensions: | 4.17 in H x 2.78 in W x 7.7 in D |
| Finish: | Tin Plated |
| Number of Poles: | 1 |
| Series: | UD Series |
| Short Circuit Current Rating (kA): | 100 kA |
| Wire Size: | 400 to 750 kcmil Line Side/#8 to 3/0 AWG Load Side |
| Country of origin: | CN |
| Material: | Aluminum/Thermoplastic |
| Manufacturer Name: | nVent |
| UNSPSC: | 39121421 |
| UPC: | 00078285697543 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$163.65 / Each
Typical price:$242.72 / Each
Quantity:

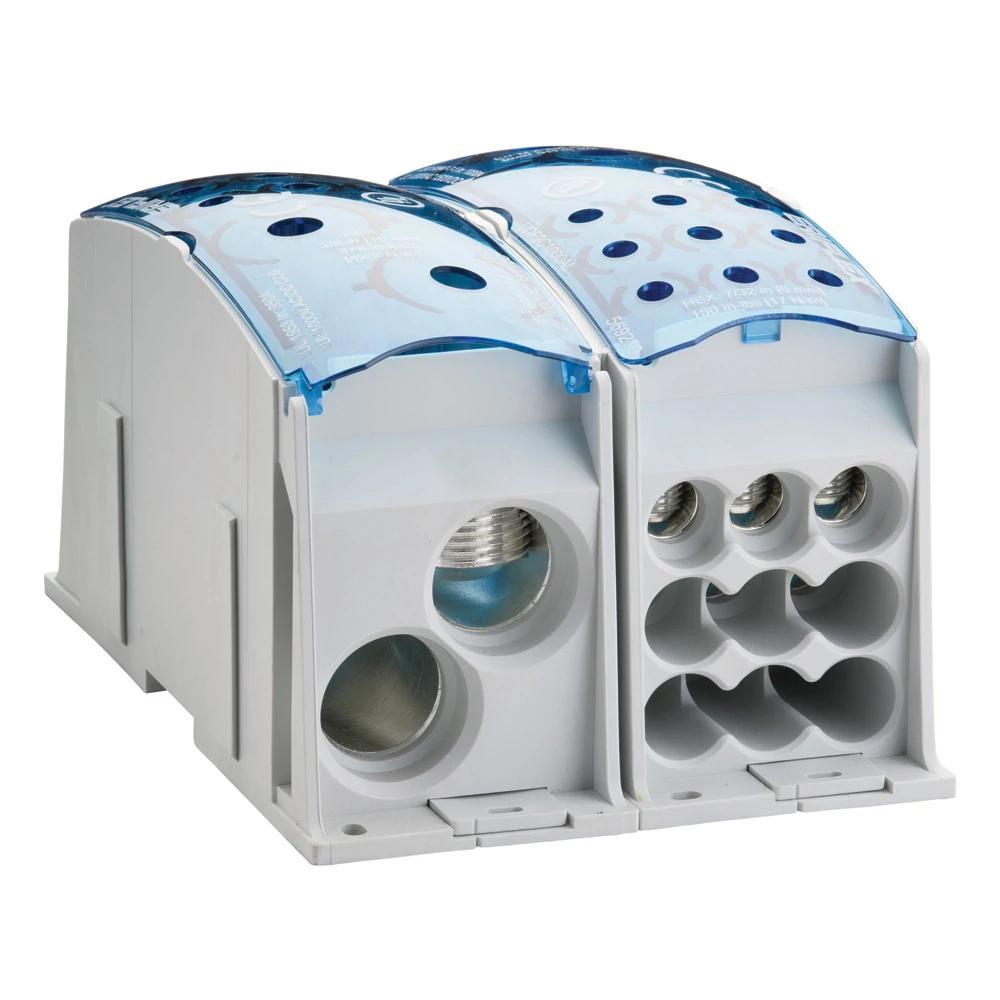

- nVent ERIFLEX Distribution Block, Series: UD Series, 1000 VAC/VDC, 1500 VDC, 950/1250 A, 1 Pole, (2) Line Primary Connections/Pole, (9) Load Secondary Connection/Pole, 400 to 750 kcmil Line Side/#8 to 3/0 AWG Load Side Wire, 100 kA Short Circuit, Aluminum/Thermoplastic, Tin Plated, 4.17 in H x 2.78 in W x 7.7 in D Dimensions
569209 Application
For visual inspection of conductor and confirmation of connection569209 Item Features
- Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
- Screw retaining cover is hinged and removable
- Modular snap-together blocks for building multi-pole power blocks
- Easily clips onto DIN rail or mounts to panel with screws
- 95% fill ratio
- Halogen free
- https://youtu.be://-UpH6J2S_a4
569209 Standards
RoHS Compliant|CSA Certified|UL 1953|IEC 60947-7-1|UL 94 V-0 Flammability RatingSKU #2411771Part Number #569209UNSPSC39121421UPC00078285697543
Image provided may only be a representation of final product and may include optional equipment
