Brand: Erico
Erico International BC260025EG
Part Number # BC260025EG
SKU # 2453093
Brand: Erico
BC260025EG
Erico International BC260025EG
Part Number # BC260025EG
SKU # 2453093
$467.83 / 100Each
Typical price:$980.20 / Each
Erico BC260025EG Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | BC260025EG |
| SKU #: | 2453093 |
| Dimensions: | 3/4 in L x 3/4 in W |
| Finish: | Electro-Galvanized |
| Load Capacity: | 100/250 lb Static |
| Series: | BC26 |
| Specifications: | 13/16 in Hole, 1/4 in Dia Screw, 40 ft-lb Torque |
| Suitable For Use With: | Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron |
| Type: | Universal |
| Country of origin: | CN |
| Material: | Steel |
| Manufacturer Name: | nVent |
| UNSPSC: | 31162905 |
| UPC: | 00078285634025 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$467.83 / 100Each
Typical price:$980.20 / Each
Quantity:
- nVent CADDY Beam Clamp, Universal, Series: BC26, 1/4 in Rod, 13/16 in Flange Thickness, 100/250 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 13/16 in Hole, 1/4 in Dia Screw, 40 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 3/4 in W
BC260025EG Application
Datacom and Low Voltage, Electrical, HVAC, Plumbing and Refrigeration ApplicationsBC260025EG Item Features
- One thru-hole for easier installation of threaded rod
BC260025EG Standards
cULus Listed|Federal Specification WW-H-171 Type 23|ANSI/MSS-SP-58 Type 19 and 23|RoHS CompliantSKU #2453093Part Number #BC260025EGUNSPSC31162905UPC00078285634025

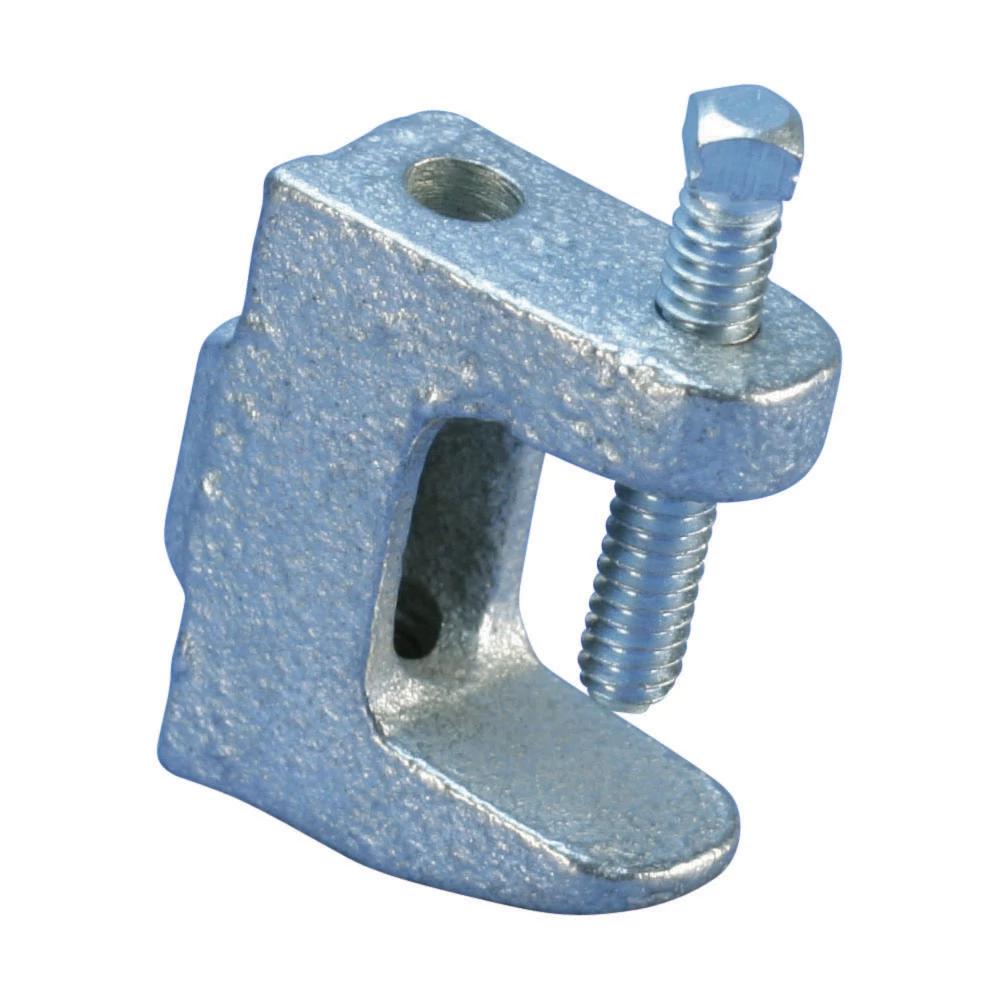

Image provided may only be a representation of final product and may include optional equipment
