STS2346
Erico STS2346 Electrical Box Hardware And Accessories
Part Number # STS2346
SKU # 2412694
Erico STS2346 Key Features
| Brand: | Erico |
|---|---|
| Part Number # : | STS2346 |
| SKU #: | 2412694 |
| Dimensions: | 7.45 in H x 8.25 in W x 3.625 in D x 0.032 in THK |
| Specifications: | 2-1/2 in, 3-5/8 in, 4 in, 6 in D Stud Wall |
| Suitable For Use With: | Electrical Box |
| Mounting type: | Stud |
| UNSPSC: | 39121321 |
| UPC: | 00078285686507 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Erico STS2346 Electrical Box Hardware And Accessories
Brand: Erico
Part Number: STS2346

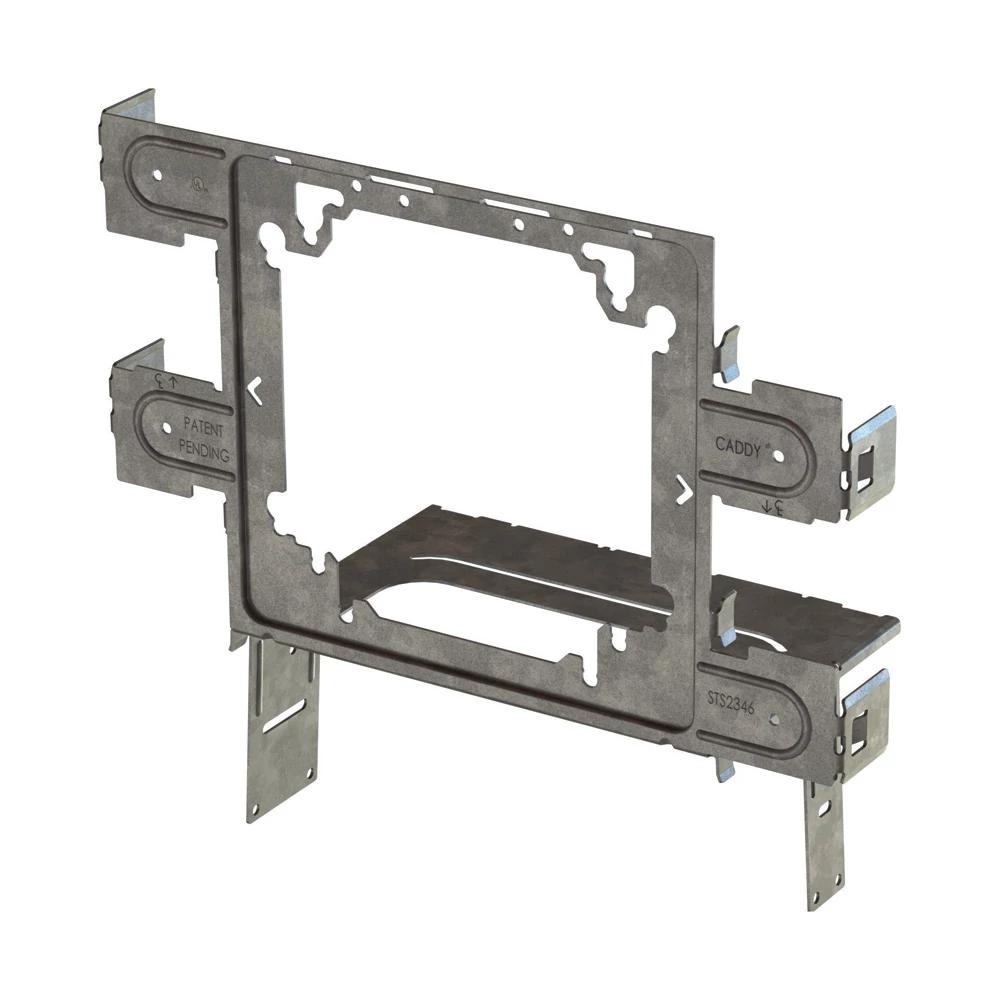

nVent CADDY Electrical Box Bracket, Snap to Stud, 4 in, 4-11/16 in Box, Stud Mounting, For Use With: Electrical Box, Specifications: 2-1/2 in, 3-5/8 in, 4 in, 6 in D Stud Wall, Steel, Electro-Galvanized, 7.45 in H x 8.25 in W x 3.625 in D x 0.032 in THK Dimensions
Additional Description: ERIC-STS2346 SNAP TO STUD ELECTRICAL BOX BRACKET, 2 1/2"", 3 5/8"", 4"", 6"" WALL DEPTH, 4"", 4 11/16"" BOX
Catalog Description: Snap to Stud Electrical Box Bracket, 2 1/2", 3 5/8", 4", 6" Wall Depth, 4", 4 11/16" Box
STS2346 Application
Electrical Fixing and Fastening ApplicationsSTS2346 Item Features
- Snap to stud function makes installation fast and easy, saving time and increasing productivity
- Self-leveling feature ensures the electrical box is always square to the stud, for a consistent and professional installation
- Mounts to either side of the stud and can be mounted side by side on the same stud
- Accommodates all stud depths, simplifying purchasing and pre-fab operations
- Works with standard or adjustable single and double gang mud rings
- Rigid design delivers consistency and quality during the trim out phase, helping reduce call backs and costly repairs
- Additional mounting tabs allow the bracket to be secured to the front and inside face of the stud for extra stability
- Unique fold-out tabs eliminate the need to use scrap pieces of floor track to provide rigidity when mounting to the open face of studs
- Specially shaped key holes help keep the box assembled even when the mud ring is removed, providing greater access to the box in the field
- https://youtu.be://Btw779iLwuE
STS2346 Standards
BABA Compliant|UL Recognized|cUL Recognized|cULus Listed|cUL QCRV7.E165702|CAN/CSA C22.2 No. 18.1-04|UL QCRV.E165702|ANSI/UL 514ASKU #2412694Part Number #STS2346UNSPSC39121321UPC00078285686507
Image provided may only be a representation of final product and may include optional equipment
