Brand: Finder
385100120060

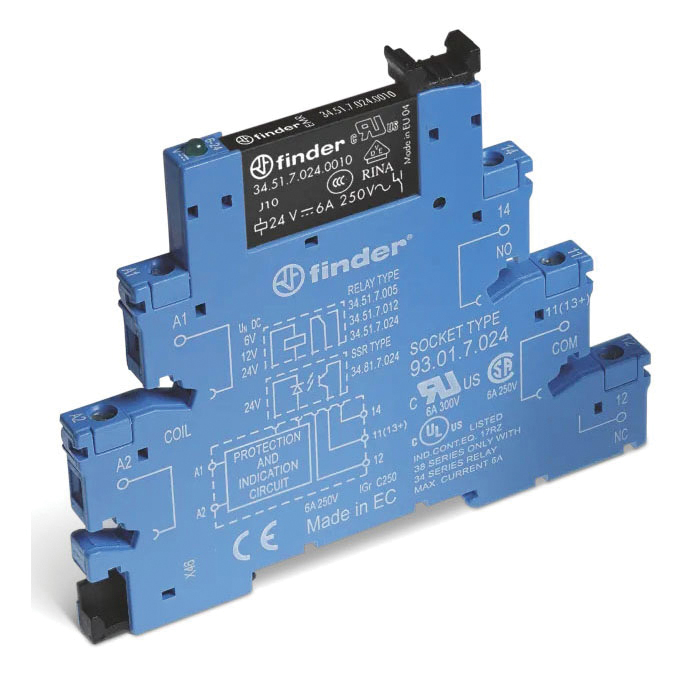

FINDER 385100120060 Emr interface module
Part Number # 385100120060
SKU # 2200250
$126.30 / 10Each
Typical price:$176.30 / Each
Finder 385100120060 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 385100120060 |
| SKU #: | 2200250 |
| Contact Configuration: | 1CO SPDT, 1CO/SPDT |
| Dimensions: | 6.2 mm W x 87.8 mm H |
| Release time: | 6 ms |
| Series: | 38 Series |
| Specifications: | 6 A Rated Current, 12 V AC/DC Coil, 500 mW Minimum Switching Load and AgNi Standard Contact Material, 6 A Rated Current, 12 VAC/VDC Coil, 500 mW Minimum Switching Load and AgNi Standard Contact Material |
| Type: | 1-Pole Electromechanical |
| Manufacturer Name: | FINDER |
| UNSPSC: | 43201544 |
| UPC: | 08012823186597 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$126.30 / 10Each
Typical price:$176.30 / Each
Quantity:
- Finder Relay Interface Module, 1-Pole Electromechanical, Series: 38 Series, 1CO SPDT Contact Configuration, 5 ms Operate, 6 ms Release Time, Specifications: 6 A Rated Current, 12 V AC/DC Coil, 500 mW Minimum Switching Load and AgNi Standard Contact Material, 6.2 mm W x 87.8 mm H Dimensions
385100120060 Application
Bottling Plant, Control Panel, Packaging Machine, Programmable Controller, Labelling Machine, Traffic Light Control and Vending Machine Applications385100120060 Item Features
- Sensitive DC/AC current coils
- Integral coil indication and protection circuit
- Removal of the relay through the plastic retaining and release clip
- 35 mm rail (EN 60715) mounting
385100120060 Standards
CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EN 60715|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL ListedSKU #2200250Part Number #385100120060UNSPSC43201544UPC08012823186597
