Part Number # 385101250060
SKU # 357799
385101250060

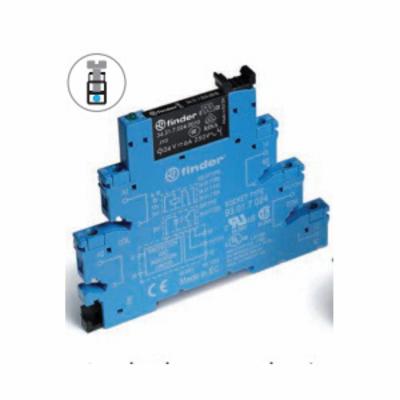

FINDER 385101250060 Relay Interface Module
Part Number # 385101250060
SKU # 357799
$170.10 / 10Each
Typical price:$237.50 / Each
Finder 385101250060 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 385101250060 |
| SKU #: | 357799 |
| Contact Configuration: | SPDT |
| Dimensions: | 75.6 mm L x 6.2 mm W x 87.9 mm H |
| Release time: | 6 ms |
| Series: | 38 Series |
| Specifications: | 1 Pole 6 A Screw Terminal, 125 V AC Coil Voltage, AgNi Standard Contact |
| Type: | Electromechanical |
| Country of origin: | US |
| UNSPSC: | 43201544 |
| UPC: | 08012823195476 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.10 / 10Each
Typical price:$237.50 / Each
Quantity:
FINDER 385101250060 Relay Interface Module
Brand: Finder
Part Number: 385101250060
Finder Relay Interface Module, Electromechanical, Series: 38 Series, SPDT Contact Configuration, 5 ms Operate, 6 ms Release time, Specifications: 1 Pole 6 A Screw Terminal, 125 VAC Coil Voltage, AgNi Standard Contact, 75.6 mm L x 6.2 mm W x 87.9 mm H Dimensions
Additional Description: FIND-385101250060 EMR INTERFACE MODULE, SPDT 6A, 125V AC/DC COIL, AGNI CONTACT, SCREW TERMINAL SOCKET
385101250060 Application
For PLC and electronic systems interface385101250060 Item Features
- 6 A rated current/10 a maximum peak current
- 250 rated voltage/400 VAC maximum switching voltage
- 0.185 kW single phase motor rating at 230 VAC
- 6 kV insulation between coil and contacts
- 1000 VAC dielectric strength between open contacts
- -40 to 70/-40 to 55 deg C ambient temperature range
- IP20 protection
- 35 mm rail mounting
385101250060 Standards
CE Marked|CSA Certified|cRUus CertifiedSKU #357799Part Number #385101250060UNSPSC43201544UPC08012823195476
Image provided may only be a representation of final product and may include optional equipment
