Part Number # 385201250060
SKU # 2148255
Image Disclaimers Message
385201250060

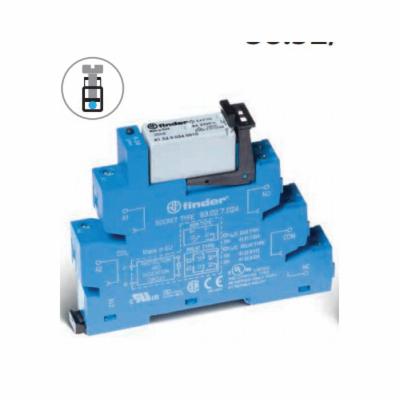

FINDER 385201250060 Relay Interface Module
Part Number # 385201250060
SKU # 2148255
$17.84 / Each
Typical price:$24.89 / Each
Finder 385201250060 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 385201250060 |
| SKU #: | 2148255 |
| Contact Configuration: | DPDT |
| Dimensions: | 77.1 mm L x 14 mm W x 89.7 mm H |
| Release time: | 10 ms |
| Series: | 38 Series |
| Specifications: | 2 Pole 8 A Screw Terminal, 125 V AC/DC Coil Voltage, AgNi Standard Contact, 2 Pole 8 A Screw Terminal, 125 VAC/VDC Coil Voltage, AgNi Standard Contact |
| Type: | Electromechanical |
| Country of origin: | US |
| Manufacturer Name: | FINDER |
| UNSPSC: | 43201544 |
| UPC: | 08012823310138 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.84 / Each
Typical price:$24.89 / Each
Quantity:
- Finder Relay Interface Module, Electromechanical, Series: 38 Series, DPDT Contact Configuration, 8 ms Operate, 10 ms Release time, Specifications: 2 Pole 8 A Screw Terminal, 125 V AC/DC Coil Voltage, AgNi Standard Contact, 77.1 mm L x 14 mm W x 89.7 mm H Dimensions
385201250060 Application
For PLC and electronic systems interface385201250060 Item Features
- 8 A rated current/15 a maximum peak current
- 250 rated voltage/400 VAC maximum switching voltage
- 0.3 kW single phase motor rating at 230 VAC
- 6 kV insulation between coil and contacts
- 1000 VAC dielectric strength between open contacts
- -40 to 70/-40 to 55 deg C ambient temperature range
- IP20 protection
- 35 mm rail mounting
385201250060 Standards
CE Marked|CSA Certified|cRUus CertifiedSKU #2148255Part Number #385201250060UNSPSC43201544UPC08012823310138
