Part Number # 386100240060
SKU # 1033827
Image Disclaimers Message
386100240060

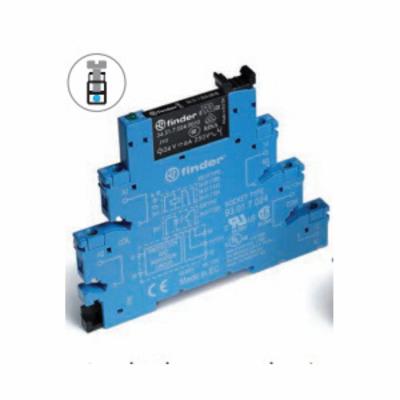

FINDER 386100240060 Relay Interface Module
Part Number # 386100240060
SKU # 1033827
$138.10 / 10Each
Typical price:$192.70 / Each
Finder 386100240060 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 386100240060 |
| SKU #: | 1033827 |
| Contact Configuration: | SPDT |
| Dimensions: | 76 mm L x 6.2 mm W x 93.6 mm H |
| Release time: | 6 ms |
| Series: | 38 Series |
| Specifications: | 1 Pole 6 A Screwless Terminal, 24 V AC/DC Coil Voltage, AgNi Standard Contact, 1 Pole 6 A Screwless Terminal, 24 VAC/VDC Coil Voltage, AgNi Standard Contact |
| Type: | Electromechanical |
| Country of origin: | US |
| Manufacturer Name: | FINDER |
| UNSPSC: | 43201544 |
| UPC: | 08012823231969 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$138.10 / 10Each
Typical price:$192.70 / Each
Quantity:
- Finder Relay Interface Module, Electromechanical, Series: 38 Series, SPDT Contact Configuration, 5 ms Operate, 6 ms Release time, Specifications: 1 Pole 6 A Screwless Terminal, 24 V AC/DC Coil Voltage, AgNi Standard Contact, 76 mm L x 6.2 mm W x 93.6 mm H Dimensions
386100240060 Application
For PLC and electronic systems interface386100240060 Item Features
- 6 A rated current/10 a maximum peak current
- 250 rated voltage/400 VAC maximum switching voltage
- 0.185 kW single phase motor rating at 230 VAC
- 6 kV insulation between coil and contacts
- 1000 VAC dielectric strength between open contacts
- -40 to 70/-40 to 55 deg C ambient temperature range
- IP20 protection
- 35 mm rail mounting
386100240060 Standards
CE Marked|CSA Certified|cRUus CertifiedSKU #1033827Part Number #386100240060UNSPSC43201544UPC08012823231969
