Part Number # 389170249024
SKU # 1221906
Image Disclaimers Message
Brand: Finder
389170249024

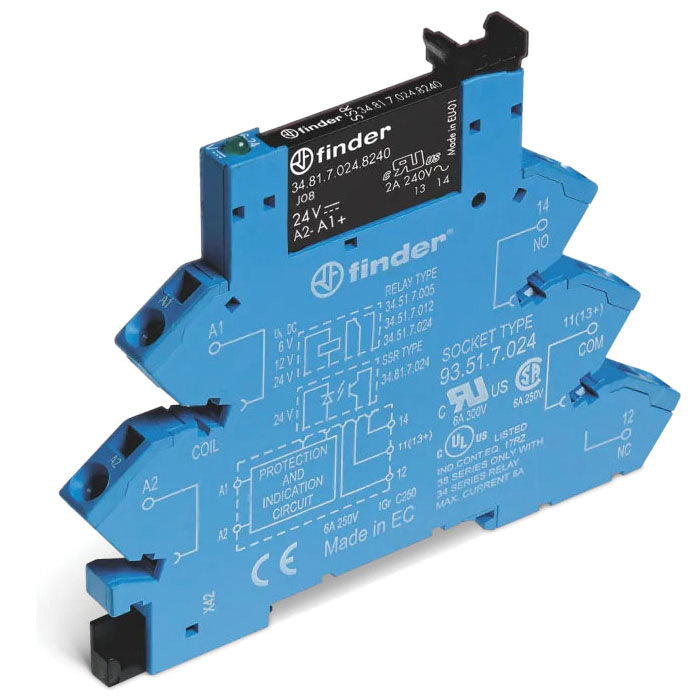

FINDER 389170249024 Ssr interface module
Part Number # 389170249024
SKU # 1221906
$264.30 / 10Each
Typical price:$368.90 / Each
Finder 389170249024 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 389170249024 |
| SKU #: | 1221906 |
| Contact Configuration: | 1NO SPST, 1NO/SPST |
| Dimensions: | 6.2 mm W x 93.6 mm H |
| Release time: | 0.6 ms |
| Series: | 38 Series |
| Specifications: | 6 A Rated Current and 24 V AC Coil, 6 A Rated Current and 24 VAC Coil |
| Type: | Solid State |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122333 |
| UPC: | 08012823238722 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$264.30 / 10Each
Typical price:$368.90 / Each
Quantity:
- Finder Relay Interface Module, Solid State, Series: 38 Series, 1NO SPST Contact Configuration, 0.2 ms Operate, 0.6 ms Release Time, Specifications: 6 A Rated Current and 24 V AC Coil, 6.2 mm W x 93.6 mm H Dimensions
389170249024 Application
Bottling Plant, Control Panel, Packaging Machine, Programmable Controller, Labelling Machine, Traffic Light Control and Vending Machine Applications389170249024 Item Features
- Sensitive AC/DC input voltage
- AC/DC output switching (1NO)
- Supplied with integral coil indication and protection circuit
- Quick and easy ejection of relay by plastic retaining clip
- 35 mm rail (EN 60715) mounting
389170249024 Standards
CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EN 60715|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL ListedSKU #1221906Part Number #389170249024UNSPSC39122333UPC08012823238722
