Part Number # 405180240000
SKU # 13011
Image Disclaimers Message
Brand: Finder
405180240000

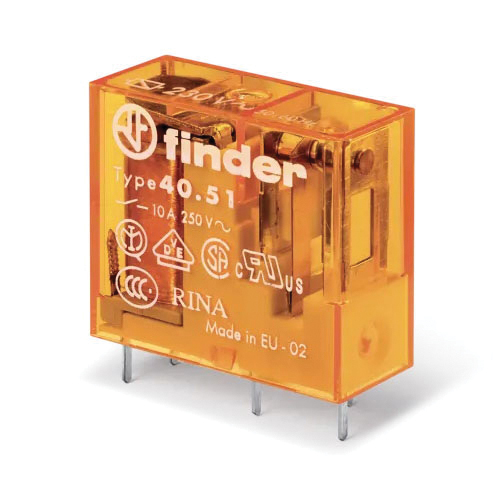

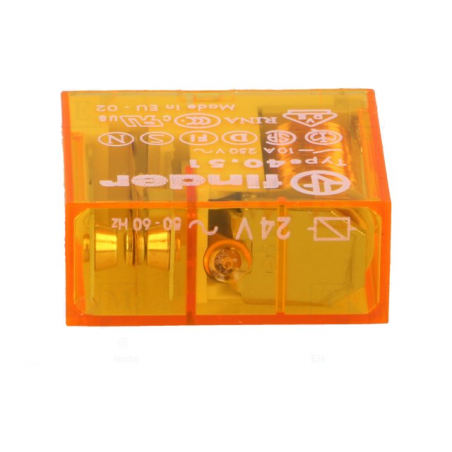

FINDER 405180240000 Pcb/plug-in relay
Part Number # 405180240000
SKU # 13011
$4.96 / Each
Typical price:$6.91 / Each
Finder 405180240000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 405180240000 |
| SKU #: | 13011 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Form: | 1CO 1 Form C SPDT, 1CO/SPDT |
| Dimensions: | 29 mm L x 12.4 mm W |
| Enclosure Type: | RTI I |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Series: | 40 Series |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Push-In/Screw/Screwless |
| Type: | Miniature |
| Mounting type: | Plug-In/PC Board |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122335 |
| UPC: | 08012823262666 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.96 / Each
Typical price:$6.91 / Each
Quantity:
- Finder Relay, Miniature, Series: 40 Series, 10 A, 1.2 VA, 0.65/0.5 W Power, 50/60 Hz Frequency, 24 V AC Coil, 1CO 1 Form C SPDT Contact Form, 1 Pole, Plug-In/PC Board Mounting, Push-In/Screw/Screwless Terminal, RTI I Enclosure, -40 to 85 deg C, 29 mm L x 12.4 mm W Dimensions
405180240000 Application
Automation, Control Panel, Door, Gate Opener, Electronic Circuit Board, Grille, Shutter, Medical, Dentistry, Panel, Toy and Vending Machine Applications405180240000 Item Features
- 3.5 mm L pin for PCB mounting
- 5.3 mm L pin for plug-in relays
- Direct current coil (650 mW or 500 mW)
- Variant with cadmium-free contacts
- 8 mm, 6 kV (1.2/50 us) insulation between coil and contacts
- Compliance with glow wire test according to EN 60335-1
- For use with 95 series socket with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB
- For use with 99 series coil indication and EMC suppression module and type 86.30 timer module
- Protection category - RT II - flux-proof (standard) and RT III - washable (special version)
- AgNi contact
405180240000 Standards
CCC Certified|cRUus Listed|CSA Certified|EAC Compliant|EN 60335-1/60715|ENEC 03|RoHS Compliant|RINA Approved|UKCA Compliant|VDE ApprovedSKU #13011Part Number #405180240000UNSPSC39122335UPC08012823262666
