Part Number # 406290240000
SKU # 2400338
Image Disclaimers Message
406290240000

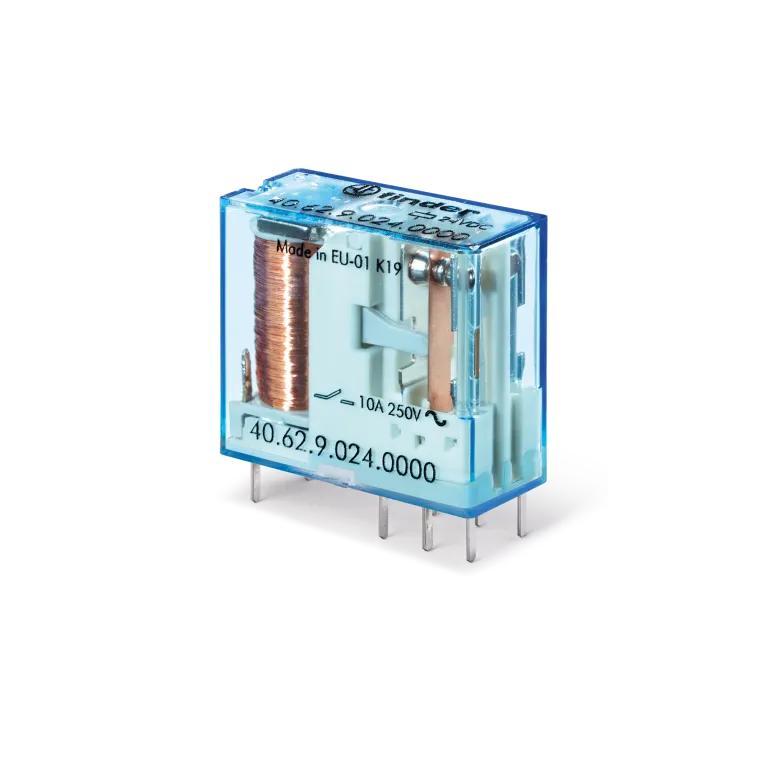

FINDER 406290240000 General Purpose Relay
Part Number # 406290240000
SKU # 2400338
$54.20 / 10Each
Typical price:$75.70 / Each
Finder 406290240000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 406290240000 |
| SKU #: | 2400338 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 VDC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO-DPDT |
| Contact Rating: | 250/400 VAC |
| Dimensions: | 25 mm H x 12.4 mm W x 29 in D |
| Display Type: | Mechanical |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 40 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Plug-In |
| Type: | Miniature |
| Country of origin: | IT |
| Mounting type: | Socket |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122325 |
| UPC: | 08012823422848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$54.20 / 10Each
Typical price:$75.70 / Each
Quantity:
- Finder, 40.62.9.024.0000, Relay, Miniature, Series: 40, 10 A, 1.2 VA Power, 50/60 Hz Frequency, 24 VDC Coil, 2CO 2 Form C DPDT Contact Form, 250/400 VAC Contact, 2 Pole, Socket Mounting, Plug-In Terminal, Mechanical Display, -40 to 85 deg C, 25 mm H x 12.4 mm W x 29 in D Dimensions
406290240000 Application
Medical and dentistry, Control panels, Panels for electrical distribution, Toys, Automation for blinds, grilles and shutters, Door and gate openers, Electronic circuit boards, Vending machines406290240000 Item Features
- AC coil and DC coils
- Cadmium free contact material
- 5.3 mm pin pitch for 95 Series socket or direct PCB mount
406290240000 Standards
CCC Certified|CSA Certified|EAC Certified|ENEC Certified|RINA Certified|cRUus Listed|UL Listed|Compliance with the Glow wire test according to EN 60335-1SKU #2400338Part Number #406290240000UNSPSC39122325UPC08012823422848
