Part Number # 466181200040
SKU # 2121599
466181200040
FINDER 466181200040 General Purpose Relay
Part Number # 466181200040
SKU # 2121599
Finder 466181200040 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 466181200040 |
| SKU #: | 2121599 |
| Amperage Rating: | 16 A |
| Coil Voltage: | 120 V AC |
| Contact Form: | 1CO 1 Form C SPDT |
| Contact Rating: | 250/440 V AC |
| Dimensions: | 29 in W x 12.4 in D x 32.8 in H |
| Display Type: | Mechanical |
| Series: | 46 Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Faston 187 Spade/Blade |
| Type: | Industrial Miniature Standard |
| Country of origin: | US |
| Mounting type: | Socket |
| UNSPSC: | 39122335 |
| UPC: | 08012823301792 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
FINDER 466181200040 General Purpose Relay
Brand: Finder
Part Number: 466181200040
Finder General Purpose Relay, Industrial Miniature Standard, Series: 46 Series, 16 A, 1.2 VA Power, 50/60 Hz Frequency, 120 VAC Coil, 1CO/SPDT Contact Form, 250/440 VAC Contact, 1 Pole, Socket Mounting, Faston 187 Spade/Blade Terminal, Mechanical Display, -40 to 70 deg C, 29 in W x 12.4 in D x 32.8 in H Dimensions
Additional Description: FIND-466181200040 (N) MIN. INDUSTRIAL RELAY, SPDT 16A, 120V AC COIL, AGNI CONTACT, LOCKABLE TEST BUTTON & MECH. INDICATOR
466181200040 Application
For air conditioners, automatic car-washes, automation for blinds, grilles and shutters, alarm systems, automation control, back-up generators, bottling plant, building automation, burners, boilers and furnaces, carousel warehouses, circuit boards for caravans, circuit boards for household equipment, coffee machines, coil winders, confectionary machines, control and management of electric power, control panels, control panels for pumps and control systems466181200040 Item Features
- AgNi contact material
- CO nPDT contact circuit
- Lockable test button and mechanical indicator
- 0.55 kW single phase motor rating at 230 VAC
- 300 mW minimum switching load
- 15 ms operate and 5 ms release time
- 1000 VAC dielectric strength between open contacts
- RT II environmental protection
466181200040 Standards
CE Marked|CSA Certified|RINA|VDE|UL ListedSKU #2121599Part Number #466181200040UNSPSC39122335UPC08012823301792

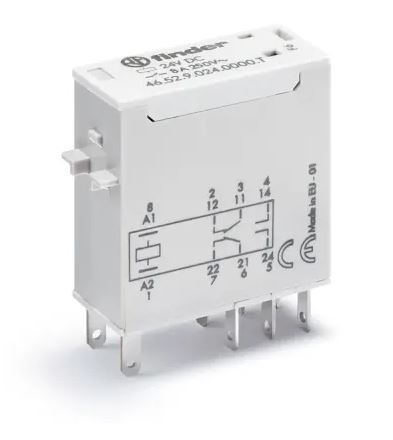

Image provided may only be a representation of final product and may include optional equipment
