Part Number # 485270240050SPA
SKU # 357795
Image provided may only be a representation of
final product and may include optional equipment
485270240050SPA

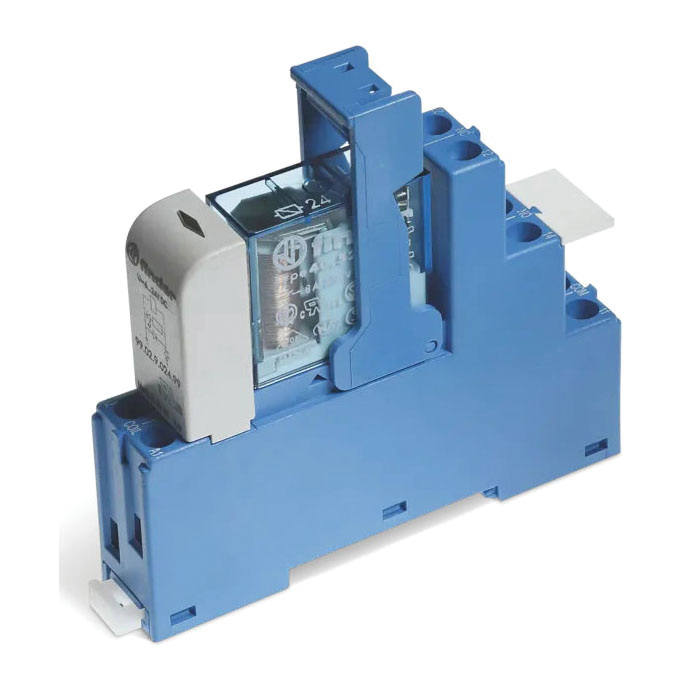

FINDER 485270240050SPA Interface module
Part Number # 485270240050SPA
SKU # 357795
$123.10 / 10Each
Typical price:$171.80 / Each
Finder 485270240050SPA Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 485270240050SPA |
| SKU #: | 357795 |
| Contact Configuration: | 2CO DPDT, 2CO/DPDT |
| Dimensions: | 15.8 mm W x 75.3 mm D x 78.6 mm H |
| Release time: | 4 ms at AC and 12 ms at DC |
| Series: | 48 Series |
| Specifications: | 8 A Rated Current, 24 V DC Coil, 300 mW Minimum Switching Load and AgNi Standard Contact Material, 8 A Rated Current, 24 VDC Coil, 300 mW Minimum Switching Load and AgNi Standard Contact Material |
| Type: | 2-Pole |
| Manufacturer Name: | FINDER |
| UNSPSC: | 43201544 |
| UPC: | 08012823246130 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$123.10 / 10Each
Typical price:$171.80 / Each
Quantity:
FINDER 485270240050SPA Interface module
Brand: Finder
Part Number: 485270240050SPA
Additional Description: FIND-485270240050SPA INTERFACE MODULE, DPDT 8A, 24V DC COIL, AGNI CONTACT, LED, DIODE & POLARITY PROTECTION DIODE, SCREW TERMINAL SOCKET POLARITY PROTECTION DIODE, SCREW TERMINAL SOCKET
485270240050SPA Application
Building Automation, Carousel Warehouse, Control Panel, Elevator, Lift, Hoist, Crane, Medical, Dentistry and Shipyard Applications485270240050SPA Includes
Green LED and Polarity Protection Diode485270240050SPA Item Features
- DC coil - identification label
- 35 mm rail (EN 60715) mounting
- Cadmium-free contact material
- https://www.findernet.com/en/usa/video/masterin-vs-screw-terminal/
485270240050SPA Standards
CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EN 60715|EZU Certified|IMQ Certified|NF Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL Listed|VDE ApprovedSKU #357795Part Number #485270240050SPAUNSPSC43201544UPC08012823246130
