Brand: Finder
4C0290240050SPA

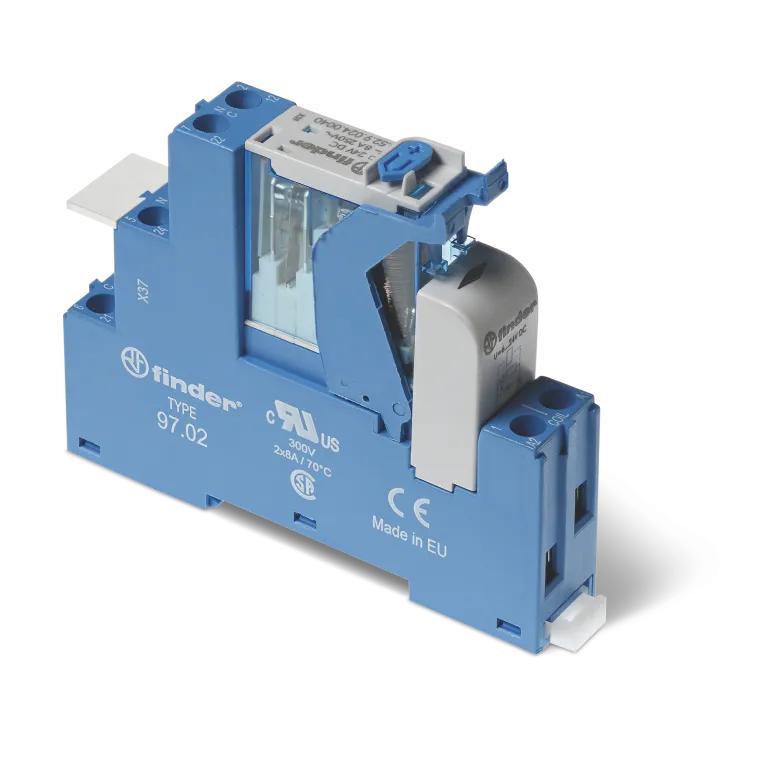

FINDER 4C0290240050SPA Interface Bus Converter Or Controller
Part Number # 4C0290240050SPA
SKU # 2327808
$164.80 / 10Each
Typical price:$230.00 / Each
Finder 4C0290240050SPA Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 4C0290240050SPA |
| SKU #: | 2327808 |
| Contact Configuration: | 2NO DPDT, 2NO-DPDT |
| Contact Rating: | 8 A |
| Dimensions: | 66 mm H x 15.8 mm W x 82.85 mm L |
| Release time: | 10 ms |
| Series: | 4C |
| Specifications: | Coil Voltage 24 V DC, 440 V AC Switching Voltage, 20 mA Coil Current, -40 to 70 deg C Operating Temperature, Coil Voltage 24 VDC, 440 VAC Switching Voltage, 20 mA Coil Current, -40 to 70 deg C Operating Temperature |
| Country of origin: | IT |
| Material: | Silver Nickel |
| Manufacturer Name: | FINDER |
| UNSPSC: | 43201544 |
| UPC: | 08012823308111 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$164.80 / 10Each
Typical price:$230.00 / Each
Quantity:
- Finder, 4C.02.9.024.0050SPA, Interface Module, Series: 4C, 2NO DPDT Contact Configuration, 8 A Contact, 10 ms Operate, 10 ms Release Time, Specifications: Coil Voltage 24 V DC, 440 V AC Switching Voltage, 20 mA Coil Current, -40 to 70 deg C Operating Temperature, Silver Nickel, 66 mm H x 15.8 mm W x 82.85 mm L Dimensions
4C0290240050SPA Application
Escalators, Road/tunnel lighting, Hoists and cranes, Carousel warehouses, Control panels, Panels for electrical distribution4C0290240050SPA Item Features
- AC or DC coil
- Coil Indication and EMC suppression module
- Identification label
- 35 mm rail EN 60715 mounting
- Cadmium free contacts
- https://www.findernet.com/en/usa/video/masterin-vs-screw-terminal/
4C0290240050SPA Standards
CE Marked|EAC Certified|CSA Certified|IMQ Certified|cRUus Listed|UL Listed|DVE CertifiedSKU #2327808Part Number #4C0290240050SPAUNSPSC43201544UPC08012823308111
