Part Number # 501290245000
SKU # 2133780
Image Disclaimers Message
Brand: Finder
501290245000

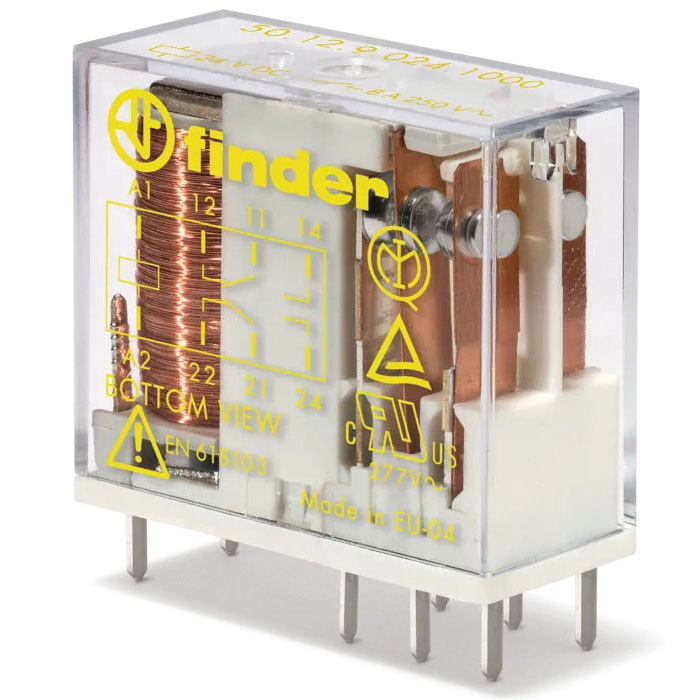

FINDER 501290245000 Relay with forcibly guided
Part Number # 501290245000
SKU # 2133780
$17.46 / Each
Typical price:$24.37 / Each
Finder 501290245000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 501290245000 |
| SKU #: | 2133780 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO/DPDT |
| Dimensions: | 29 mm L x 12.4 mm W |
| Enclosure Type: | RTI I |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 50 Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Mounting type: | PC Board |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122314 |
| UPC: | 08012823331287 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.46 / Each
Typical price:$24.37 / Each
Quantity:
- Finder Relay, Series: 50 Series, 8 A, 0.7 W Power, 50/60 Hz Frequency, 24 V DC Coil, 2CO 2 Form C DPDT Contact Form, 2 Poles, PC Board Mounting, RTI I Enclosure, -40 to 70 deg C, 29 mm L x 12.4 mm W Dimensions
501290245000 Application
Carousel Warehouse, Disabled Lift, Elevator, Lift, Escalator, Hoist, Crane, Hospital, Medical, Dentistry and Wood Processing Machine Applications501290245000 Item Features
- High insulation between adjacent contacts
- Cadmium-free contact material
- 8 mm, 6 kV (1.2/50 us) insulation between coil and contacts
- Flux-proof - RT II
- AgNi and gold plated contact
501290245000 Standards
cRUus Listed|CSA Certified|EAC Compliant|RoHS CompliantSKU #2133780Part Number #501290245000UNSPSC39122314UPC08012823331287
