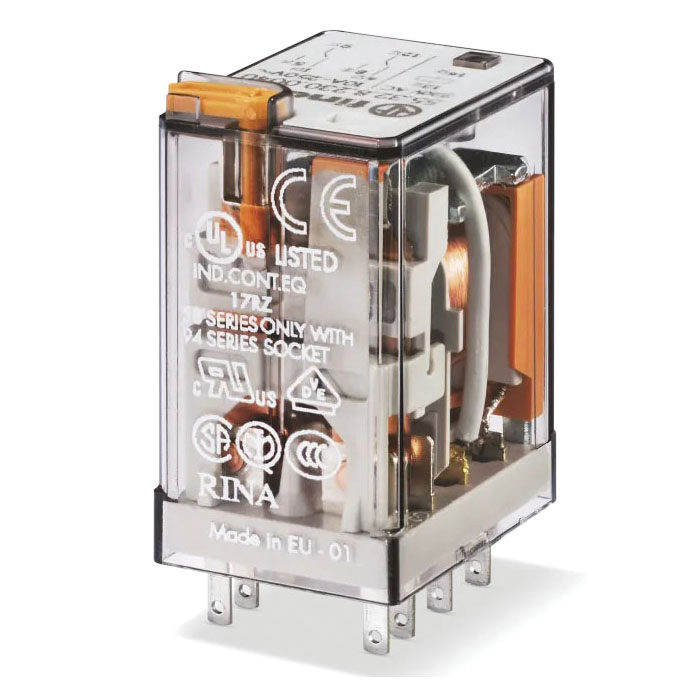

FINDER 553280240050 Ind. plug-in relay
Part Number # 553280240050
SKU # 2271144
$94.20 / 10Each
Typical price:$131.40 / Each
Finder 553280240050 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 553280240050 |
| SKU #: | 2271144 |
| Amperage Rating: | 10 A |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO/DPDT |
| Dimensions: | 27.7 mm W x 20.7 mm D |
| Display Type: | LED |
| Enclosure Type: | RTI |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 55 Series |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Push-In/Screw/Screwless |
| Type: | Standard |
| Mounting type: | Plug-In |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122326 |
| UPC: | 08012823026800 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$94.20 / 10Each
Typical price:$131.40 / Each
Quantity:
- Finder General Purpose Relay, Standard, Series: 55 Series, 10 A, 1.5 VA Power, 50/60 Hz Frequency, 24 V AC Coil, 2CO 2 Form C DPDT Contact Form, 2 Poles, Plug-In Mounting, Push-In/Screw/Screwless Terminal, LED Display, RTI Enclosure, -40 to 85 deg C, 27.7 mm W x 20.7 mm D Dimensions
553280240050 Application
Industrial, Blind, Grille and Shutter Automation, Control and Management of Electric Power, Shipyard, Road, Tunnel Lighting, Hoist, Crane, Circuit Breaker, Switch, Control Panel and Electrical Distribution Panel Applications553280240050 Item Features
- AC/DC coils
- Variant with LED and integrated protection circuit
- For use with 94 series socket for printed circuit board, solder or for 35 mm rail mount (EN 60715) with push-in, screw or screwless terminal
- For use with 99 series coil indication and EMC suppression module and type 86.30 timer module
- Cadmium-free contact material
- European patent
- Standard AgNi contact
- Lockable test button
553280240050 Standards
ANCE Standard|CCC Certified|CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EC Certified|EN 60715|ENEC 03|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL Listed|VDE ApprovedSKU #2271144Part Number #553280240050UNSPSC39122326UPC08012823026800
