Part Number # 553480240050
SKU # 2121172
Image Disclaimers Message
553480240050

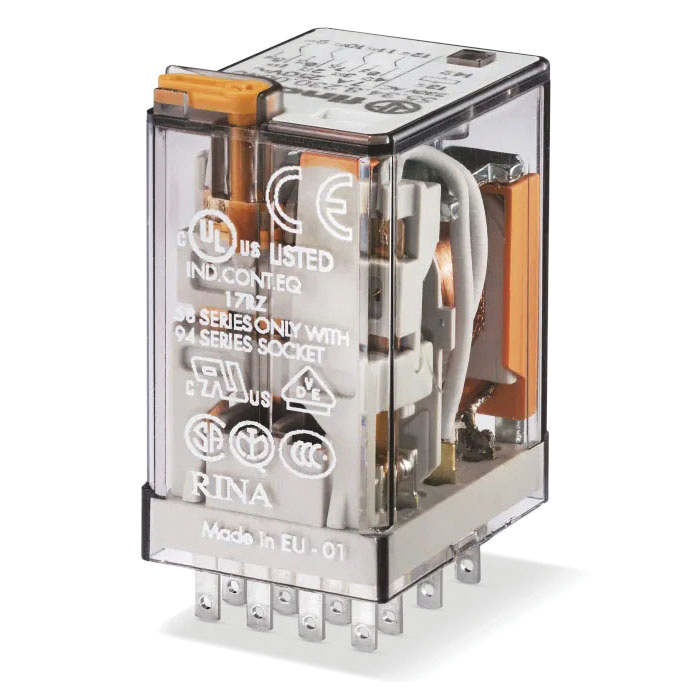

FINDER 553480240050 Ind. plug-in relay
Part Number # 553480240050
SKU # 2121172
$9.90 / Each
Typical price:$13.81 / Each
Finder 553480240050 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 553480240050 |
| SKU #: | 2121172 |
| Amperage Rating: | 7 A |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Form: | 4CO 4 Form C 4PDT, 4CO/4PDT |
| Dimensions: | 27.7 mm W x 20.7 mm D |
| Display Type: | LED |
| Enclosure Type: | RTI |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Series: | 55 Series |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Push-In/Screw/Screwless |
| Type: | Standard |
| Mounting type: | Plug-In |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122326 |
| UPC: | 08012823033082 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.90 / Each
Typical price:$13.81 / Each
Quantity:
- Finder General Purpose Relay, Standard, Series: 55 Series, 7 A, 1.5 VA Power, 50/60 Hz Frequency, 24 V AC Coil, 4CO 4 Form C 4PDT Contact Form, 4 Poles, Plug-In Mounting, Push-In/Screw/Screwless Terminal, LED Display, RTI Enclosure, -40 to 85 deg C, 27.7 mm W x 20.7 mm D Dimensions
553480240050 Application
Industrial, Blind, Grille and Shutter Automation, Control and Management of Electric Power, Shipyard, Road, Tunnel Lighting, Hoist, Crane, Circuit Breaker, Switch, Control Panel and Electrical Distribution Panel Applications553480240050 Item Features
- AC/DC coils
- Variant with LED and integrated protection circuit
- Socket series 94 for printed circuit board, solder or for 35 mm rail mount (EN 60715) with push-in, screw or screwless terminal
- 99 series coil indication and EMC suppression module and type 86.30 timer module
- Cadmium-free contact material
- European patent
- Standard AgNi contact
- Lockable test button
553480240050 Standards
ANCE Standard|CCC Certified|CE Certified|cRUus Listed|CSA Certified|EAC Compliant|EC Certified|EN 60715|ENEC 03|IMQ Certified|RINA Approved|RoHS Compliant|UKCA Compliant|UL Listed|VDE ApprovedSKU #2121172Part Number #553480240050UNSPSC39122326UPC08012823033082
