Part Number # 563281200050
SKU # 336048
Image Disclaimers Message
563281200050

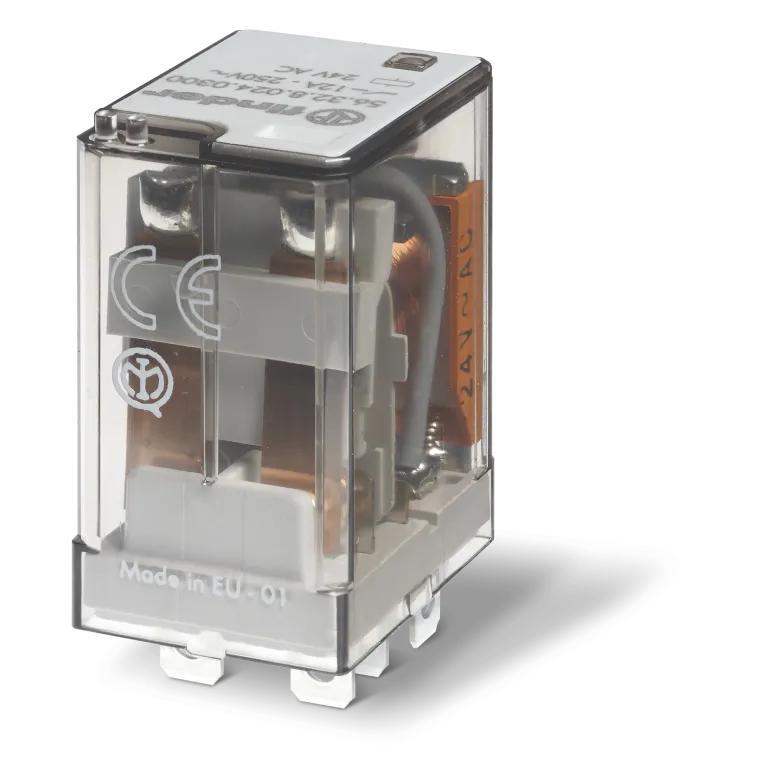

FINDER 563281200050 Ind. plug-in relay
Part Number # 563281200050
SKU # 336048
$107.00 / 10Each
Typical price:$149.40 / Each
Finder 563281200050 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 563281200050 |
| SKU #: | 336048 |
| Amperage Rating: | 12 A |
| Coil Voltage: | 120 V AC, 120 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO-DPDT |
| Contact Rating: | 250/400 V AC, 250/400 VAC |
| Dimensions: | 37.7 mm H x 20.7 mm W x 27.7 mm D |
| Display Type: | Mechanical |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 56 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Plug-In |
| Country of origin: | IT |
| Mounting type: | Socket |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122326 |
| UPC: | 08012823097442 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$107.00 / 10Each
Typical price:$149.40 / Each
Quantity:
- Finder, 56.32.8.120.0050, Relay, Series: 56, 12 A, 1.5 VA Power, 50/60 Hz Frequency, 120 V AC Coil, 2CO 2 Form C DPDT Contact Form, 250/400 VAC Contact, 2 Pole, Socket Mounting, Plug-In Terminal, Mechanical Display, -40 to 70 deg C, 37.7 mm H x 20.7 mm W x 27.7 mm D Dimensions
563281200050 Application
Industrial furnaces and ovens, Control and management of electric power,Industrial motors, Circuit breakers and switche, Panels for electrical distribution, Control panels, Carousel warehouses, Vending machines563281200050 Item Features
- Flange mounting possible using adaptor with 187 Faston, 4.8 x 0.5 mm connection
- AC or DC coil
- Lockable test button and mechanical indicator
- Cadmium free contacts standard version
- Contact material options
- For use with 96 Series sockets
- For use with 99 Series coil indication and EMC suppression modules
563281200050 Standards
CE Marked|CCC Certified|CSA Certified|EAC Certified|ENEC Certified|LR Certified|RINA Certified|VDE Certified|cRUus Listed|UL ListedSKU #336048Part Number #563281200050UNSPSC39122326UPC08012823097442
