Part Number # 563290240040
SKU # 2251872
Image Disclaimers Message
Brand: Finder
563290240040

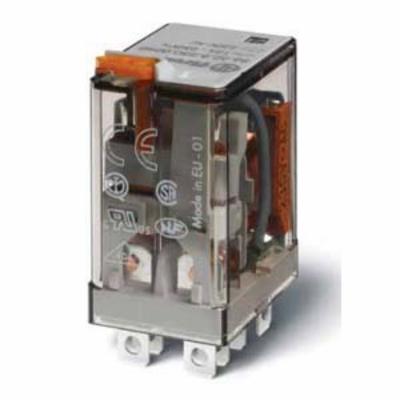

FINDER 563290240040 Power Relay
Part Number # 563290240040
SKU # 2251872
$91.90 / 10Each
Typical price:$128.30 / Each
Finder 563290240040 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 563290240040 |
| SKU #: | 2251872 |
| Amperage Rating: | 12 A |
| Coil Voltage: | 24 VDC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO/DPDT |
| Dimensions: | 37.2 in H x 27.7 in W x 20.7 in D |
| Number of Poles: | 2 |
| Series: | 56 Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Quick-Connect |
| Type: | Miniature Standard |
| Mounting type: | Plug-In |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122326 |
| UPC: | 08012823098197 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$91.90 / 10Each
Typical price:$128.30 / Each
Quantity:
- Finder Power Relay, Miniature Standard, Series: 56 Series, 12 A, 24 VDC Coil, 2CO 2 Form C DPDT Contact Form, 2 Pole, Plug-In Mounting, Quick-Connect Terminal, -40 to 70 deg C, 37.2 in H x 27.7 in W x 20.7 in D Dimensions
563290240040 Application
Air Conditioners, Automatic Car-Washes, Alarm Systems and Back-Up Generators563290240040 Item Features
- AgNi standard contact material
- AC coils and DC coils
- Lockable test button and mechanical flag indicator
- Cadmium free contacts (standard version)
- Coil EMC suppression
- 20 A maximum peak current
- 0.55 kW single-phase motor rating (230 VAC )
- 500 mW minimum switching load
- 8 ms operate time
- 4 ms release time
- 4 kV insulation between coil and contacts
- 1000 VAC dielectric strength between open contacts
563290240040 Standards
cULus Listed|CSA Certified|PCT Approval, VDE Certificate, RINA Certification, CE Listed|Lloyds RegisterSKU #2251872Part Number #563290240040UNSPSC39122326UPC08012823098197
