Part Number # 7S3490244310
SKU # 2365846
Image Disclaimers Message
7S3490244310

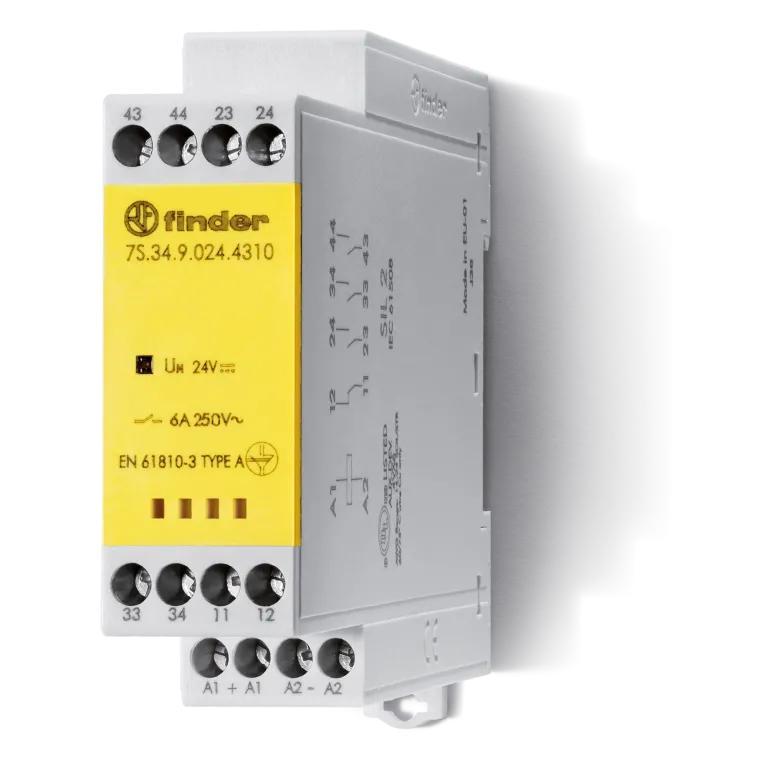

FINDER 7S3490244310 Relay module with forcibly guided
Part Number # 7S3490244310
SKU # 2365846
$93.52 / Each
Typical price:$130.54 / Each
Finder 7S3490244310 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 7S3490244310 |
| SKU #: | 2365846 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 3CO-4PST/1CO-3NO, 3NO-1NC 3 Form A/1 Form B |
| Contact Rating: | 250/400 V AC, 250/400 VAC |
| Dimensions: | 86.2 mm H x 22.5 mm W x 96 mm D |
| Display Type: | Mechanical |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Series: | 7S |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Modular |
| Country of origin: | IT |
| Mounting type: | DIN Rail |
| Manufacturer Name: | FINDER |
| UNSPSC: | 32151802 |
| UPC: | 08012823420769 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$93.52 / Each
Typical price:$130.54 / Each
Quantity:
- Finder, 7S.34.9.024.4310, Relay, Modular, Series: 7S, 6 A, 2.3 VA Power, 50/60 Hz Frequency, 24 V DC Coil, 3NO-1NC 3 Form A/1 Form B Contact Form, 250/400 VAC Contact, 4 Pole, DIN Rail Mounting, Screw Terminal, Mechanical Display, IP20 Enclosure, -40 to 70 deg C, 86.2 mm H x 22.5 mm W x 96 mm D Dimensions
7S3490244310 Application
Chemical and petrolchemical, Hoists and cranes, Wood-processing machine, Carousel warehouses, Escalators, Elevators and lifts, Process Industry, Automatic car-washes7S3490244310 Item Features
- Relays with guided contacts Type A according to EN 61810-3 EN 50205 for applications of safety
- For the functional safety of machines and systems according to EN 13849-1
- For railway application plastic materials compliant with fire and smoke specifications according to EN 45545 mechanical and climatic characteristics according to EN 61373 and EN 50155Versions with DC and AC power supply
- 24 and 110 V DC versions with extended operating range 0.7 to 1.25 UN
- Indication LED
- 35 mm rail EN 60715 mounting
7S3490244310 Standards
CE Marked|cULus Listed|EAC CertifiedSKU #2365846Part Number #7S3490244310UNSPSC32151802UPC08012823420769
