Part Number # 804102400000
SKU # 2165212
Image Disclaimers Message
804102400000

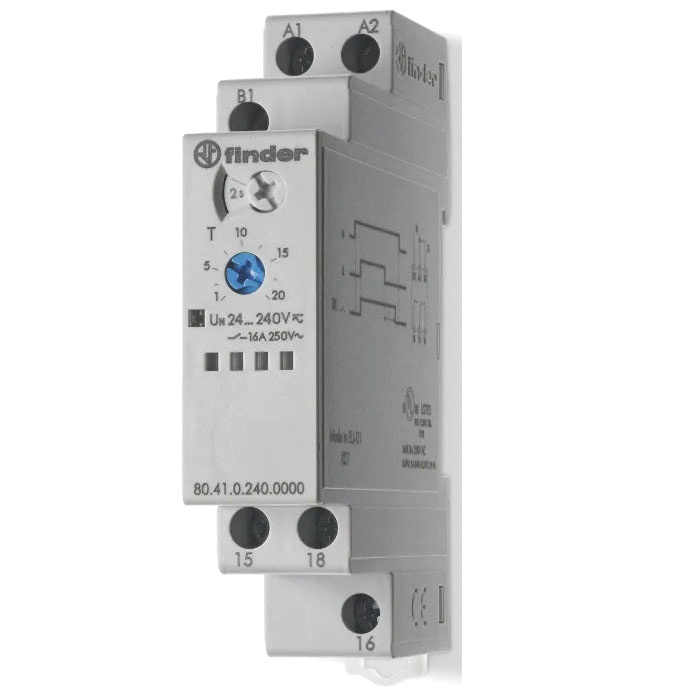

FINDER 804102400000 Signal off-delay
Part Number # 804102400000
SKU # 2165212
$46.31 / Each
Typical price:$64.65 / Each
Finder 804102400000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 804102400000 |
| SKU #: | 2165212 |
| Amperage Rating: | 16 A |
| Coil Voltage: | 24 to 240 V AC/DC, 24 to 240 VAC/VDC |
| Contact Form: | 1CO 1 Form C SPDT, 1CO/SPDT |
| Dimensions: | 17.5 mm W x 88.8 mm H |
| Electrical Connections: | Screw Terminal |
| Enclosure Type: | IP20 |
| Number of Poles: | 1 |
| Operation Mode: | Off-Delay with Control Signal |
| Series: | 80 Series |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Time Setting: | 0.1 s to 24 hr |
| Type: | Mono-Function Multi-Voltage Standard |
| Mounting type: | DIN Rail |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39121523 |
| UPC: | 08012823324678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.31 / Each
Typical price:$64.65 / Each
Quantity:
- Finder Modular Timer, Mono-Function Multi-Voltage Standard, Series: 80 Series, Operation Mode: Off-Delay with Control Signal, 250 V AC, 16 A, 1 Pole, 1CO 1 Form C SPDT Contact Form, 0.1 s to 24 hr Time Setting, 24 to 240 V AC/VDC Coil, 50 ms Pulse, Screw Terminal Electrical Connections, IP20 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 17.5 mm W x 88.8 mm H Dimensions
804102400000 Application
Building Automation, Elevator, Lift, Blind, Grille and Shutter Automation, Hoist, Crane, Electrical Distribution Panel, Door and Gate Opener Applications804102400000 Item Features
- 0.1 s to 24 hr from six time scale
- High input/output insulation
- Blade and cross - both flat blade and cross-head screwdriver can be used to adjust the range and function selector, the timing trimmer and to disengage the 35 mm rail clip
- New multi-voltage version with PWM clever technology
- 35 mm rail (EN 60715) mounting
- https://www.findernet.com/en/usa/video/timers-range/
804102400000 Standards
CE Certified|cULus Listed|EAC Compliant|EC Certified|EN 60715|RINA Approved|RoHS Compliant|UKCA CompliantSKU #2165212Part Number #804102400000UNSPSC39121523UPC08012823324678
