Part Number # 834102400000
SKU # 2281387
Image Disclaimers Message
834102400000

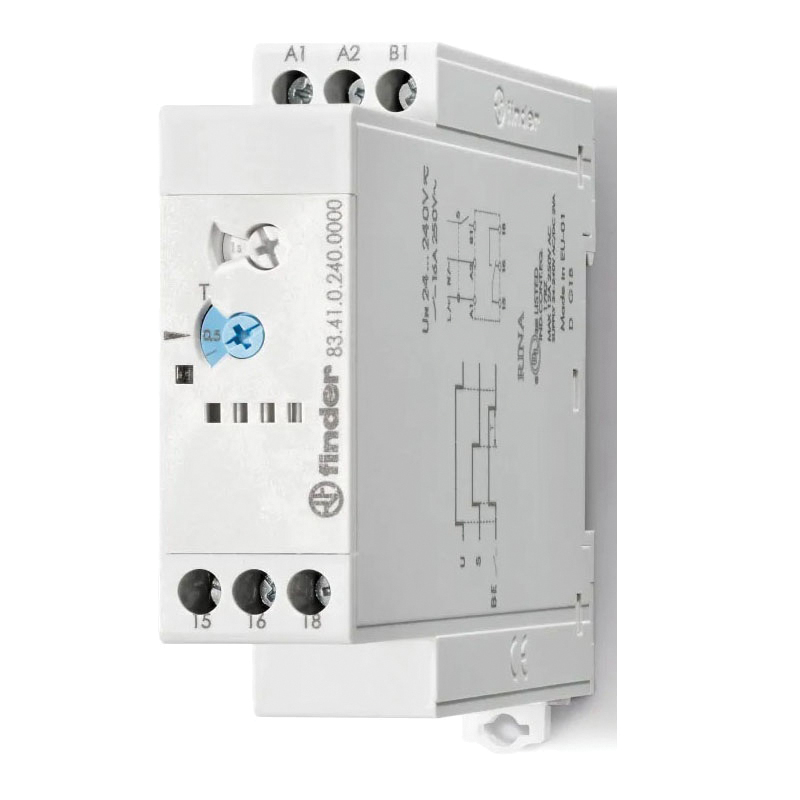

FINDER 834102400000 Timer Controls
Part Number # 834102400000
SKU # 2281387
$46.90 / Each
Typical price:$65.45 / Each
Finder 834102400000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 834102400000 |
| SKU #: | 2281387 |
| Amperage Rating: | 16 A |
| Coil Voltage: | 24 to 240 VAC/VDC |
| Contact Form: | 1CO 1 Form C SPDT, 1CO/SPDT |
| Dimensions: | 22.5 mm W x 86.2 mm H |
| Electrical Connections: | Screw Terminal |
| Enclosure Type: | IP20 |
| Number of Poles: | 1 |
| Operation Mode: | Off-Delay with Control Signal |
| Series: | 83 Series |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Time Setting: | 0.05 s to 10 days |
| Type: | Mono-Function Multi-Voltage Standard |
| Mounting type: | DIN Rail |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39121523 |
| UPC: | 08012823328027 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.90 / Each
Typical price:$65.45 / Each
Quantity:
- Finder Modular Timer, Mono-Function Multi-Voltage Standard, Series: 83 Series, Operation Mode: Off-Delay with Control Signal, 250 V AC, 16 A, 1 Pole, 1CO 1 Form C SPDT Contact Form, 0.05 s to 10 days Time Setting, 24 to 240 V AC/VDC Coil, 50 ms Pulse, Screw Terminal Electrical Connections, IP20 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 22.5 mm W x 86.2 mm H Dimensions
834102400000 Application
Electrical Distribution Panel, Automatic Car Wash, Packaging Machine, Pump Control, Industrial Refrigeration and Fountain Applications834102400000 Item Features
- 0.05 s to 10 days from eight time scale
- High input/output insulation
- Blade and cross - both flat blade and cross-head screwdriver can be used to adjust the range and function selector, the timing trimmer and to disengage the 35 mm rail clip
- New multi-voltage version with PWM clever technology
- Compliant with EN 45545-2: 2013 (protection against fire and fumes), EN 61373 (resistance to shock and vibration, category 1, class B) and EN 50155 (resistance to temperature and humidity, class T1)
- 35 mm rail (EN 60715) mounting
- https://www.findernet.com/en/usa/video/timers-range/
834102400000 Standards
CE Certified|cULus Listed|EAC Compliant|EC Certified|EN 45545-2: 2013/61373/50155/60715|RINA Approved|RoHS Compliant|UKCA CompliantSKU #2281387Part Number #834102400000UNSPSC39121523UPC08012823328027
