Part Number # 840200240000
SKU # 2372605
Image provided may only be a representation of
final product and may include optional equipment
840200240000

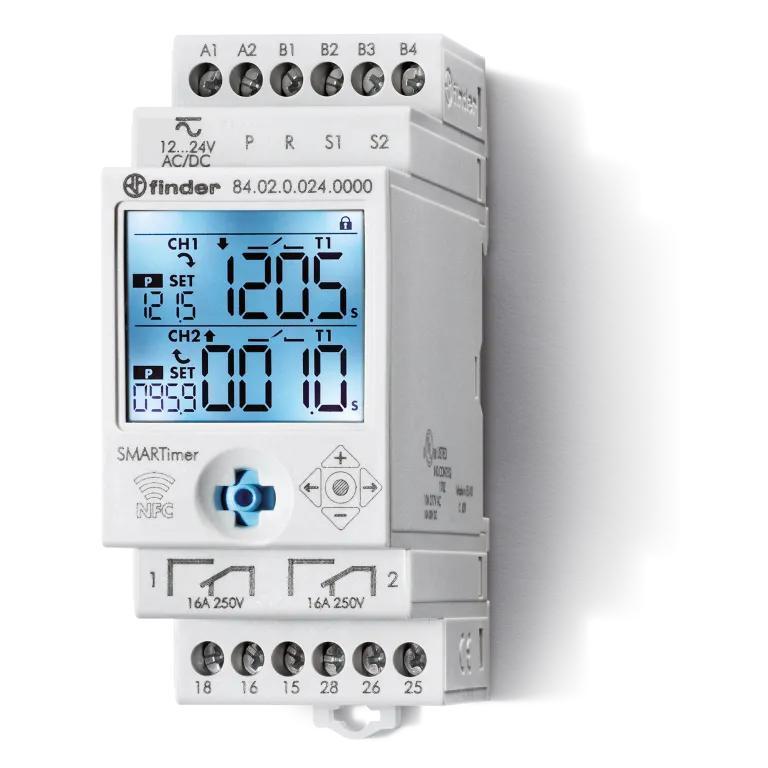

FINDER 840200240000 Multi Function Digital Relay
Part Number # 840200240000
SKU # 2372605
$108.58 / Each
Typical price:$151.57 / Each
Finder 840200240000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 840200240000 |
| SKU #: | 2372605 |
| Amperage Rating: | 16 A |
| Contact Form: | 2CO 2 Form C DPDT, 2CO-DPDT |
| Dimensions: | 88.8 in H x 35 in W |
| Number of Poles: | 2 |
| Operation Mode: | On/Off |
| Series: | 84 |
| Temperature Rating (Degrees F): | -20 to 50 deg |
| Time Setting: | 1 s to 9999 hr |
| Type: | Multi-Function |
| Country of origin: | IT |
| Mounting type: | DIN Rail |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122323 |
| UPC: | 08012823407265 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$108.58 / Each
Typical price:$151.57 / Each
Quantity:
- Finder, 84.02.0.024.0000, Mechanical Relay, Multi-Function, Series: 84, Operation Mode: On/Off, 12 to 24 V AC/DC, 16 A, 2 Pole, 2CO 2 Form C DPDT Contact Form, 1 s to 9999 hr Time Setting, -20 to 50 deg, DIN Rail Mounting, 88.8 in H x 35 in W Dimensions
840200240000 Application
Timers and lighting controls, Automatic car-washes, Labelling machine, Punches, cleaners, planers and sanders, Industrial furnaces and ovens, Discotheques, swimming pools and fountains840200240000 Item Features
- 2 changeover contacts 16 A
- Great precision and possibility of choice for defining times
- Scale settable in tenths of a second, seconds, minutes, hours
- Times settable from 1 tenth of a second to 9999 hours
- Separate Start inputs for each channel; common reset input and common pause input
- PIN that can be set to protect access to programming
- Type of counting selectable ascending or descending
- 35 mm rail EN 60715 mounting
- https://www.findernet.com/en/usa/video/timers-range/
840200240000 Standards
CE Marked|EAC Certified|cULus ListedSKU #2372605Part Number #840200240000UNSPSC39122323UPC08012823407265
