Part Number # P-P11R2-H3R0
SKU # 2236865
Image Disclaimers Message
P-P11R2-H3R0

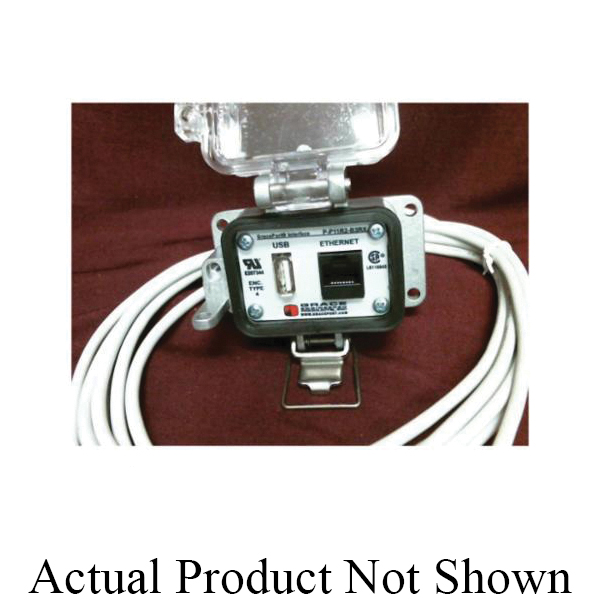

Grace Engineered Products P-P11R2-H3R0 USB Connector
Part Number # P-P11R2-H3R0
SKU # 2236865
Grace Technologies P-P11R2-H3R0 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-P11R2-H3R0 |
| SKU #: | 2236865 |
| Connector Type: | USB Type A-A F/M Extension |
| Cable length: | 10, 10 ft |
| Length: | 5.51, 5.51 in |
| Width: | 1.65, 1.65 in |
| UNSPSC: | 43211609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-P11R2-H3R0 USB Connector
GracePorts USB Connector, USB Type A-A F/M Extension Connector, 2 Ports, 10 ft Cable Length, 5.51 in Length, 1.65 in Width, Aluminum
Additional Description: GRAC-P-P11R2-H3R0 N12/4 USB (10FT)/ETHERNET (NO-CABLE)/120VAC Device,GRACEPORT,2 Port,5.510 IN LEN,1.650 IN W W/CABLE RECEPT
Catalog Description: GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 2; Power Device: 120 VAC, 15 AMP, Used in US, Canada, Mexico, Japan And Taiwan; Length: 5.510 IN; Width: 1.650 IN; Connector: USB Type A-A F/M Extension With 10 FT Cable; Category 5e Ethernet RJ45 F/F Bulkhead; Circuit Breaker: No Breaker; Housing: 24 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
P-P11R2-H3R0 Item Features
- Low voltage (data), Limited to 30 VDC, High voltage supply (for computer use only)
- USB type A-A F/M extension with 10 ft cable connector
- Category 5e ethernet RJ45 F/F bulkhead
- 24 point housing, NEMA 12/4, IP-65, cast aluminum base
- UV rated, V-O flame rated, panel mounting
- 120 VAC, 15 A, Used in US, Canada, Mexico, Japan and Taiwan Power Device
- 120 VAC, 20 A, GFCI inside outlet power device
- Cast aluminum base, polycarbonate cover
SKU #2236865Part Number #P-P11R2-H3R0UNSPSC43211609UPC
