Part Number # P-P11R2-H3R3
SKU # 2262041
P-P11R2-H3R3

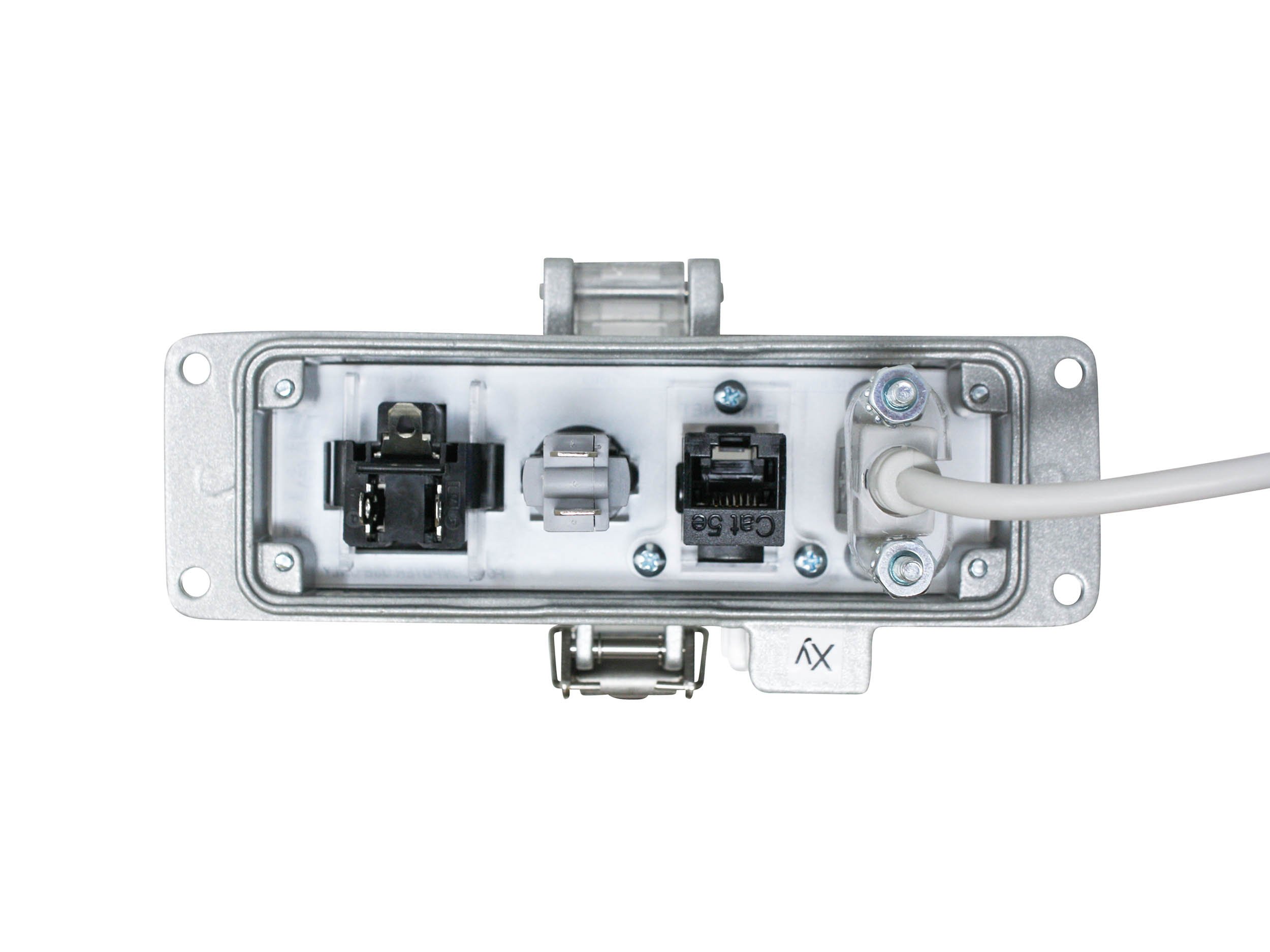

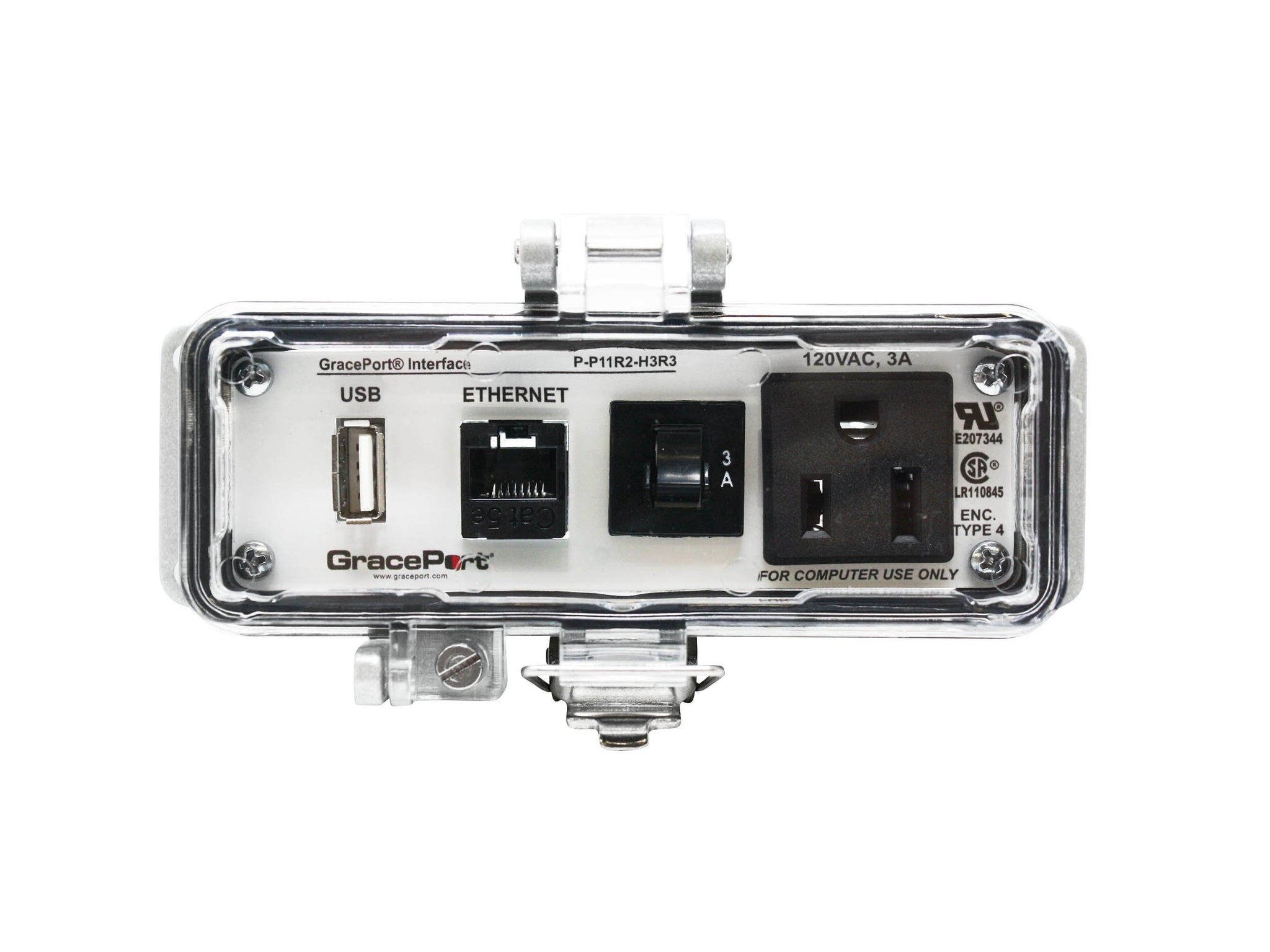

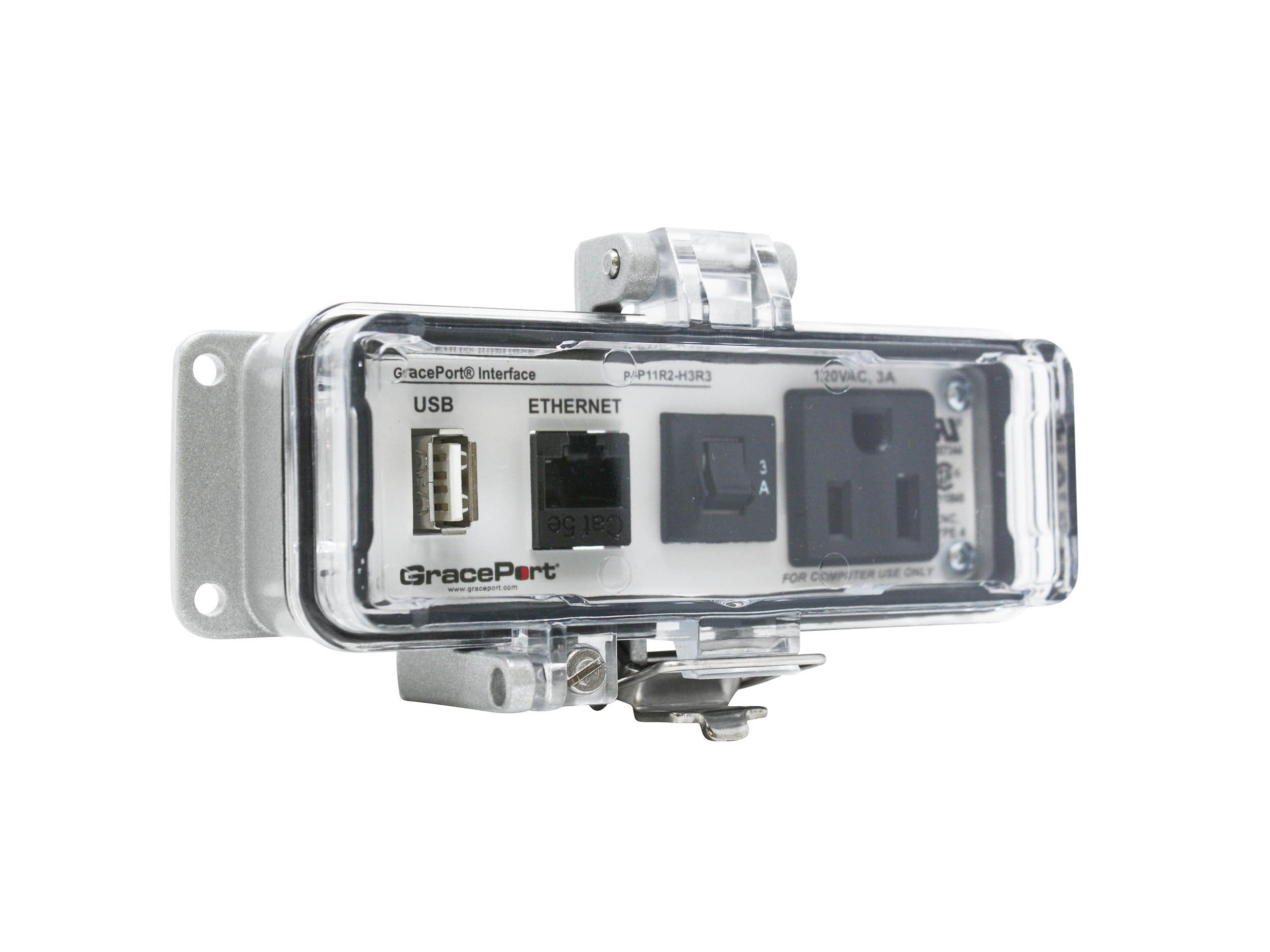

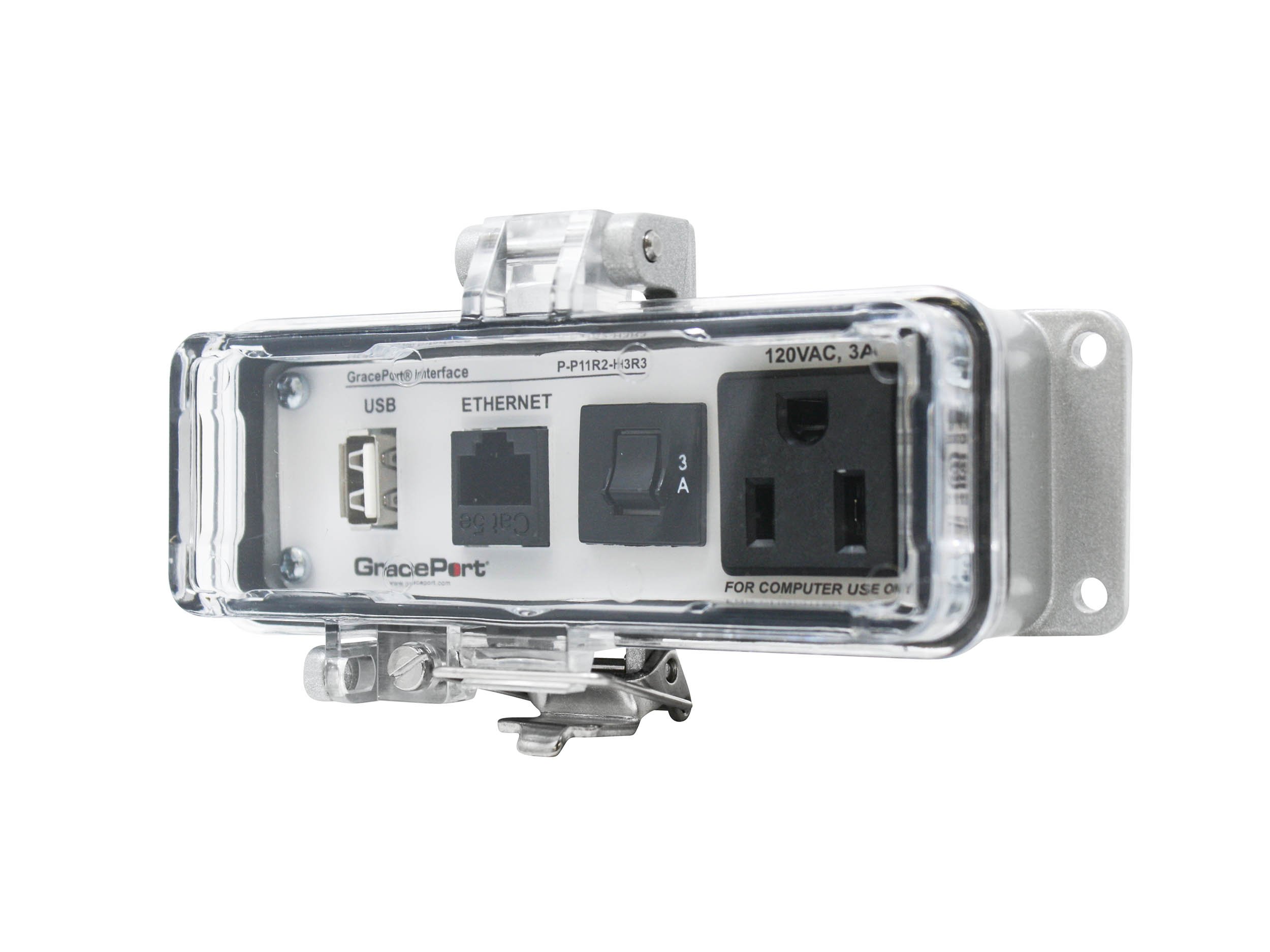

Grace Engineered Products P-P11R2-H3R3 Universal Serial Bus Interface Device Number Of Ports 2 Power Device 120 VAC
Part Number # P-P11R2-H3R3
SKU # 2262041
Grace Technologies P-P11R2-H3R3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-P11R2-H3R3 |
| SKU #: | 2262041 |
| Connector Type: | Female USB A x Male USB A |
| Dimensions: | 1.72 in H x 5.51 in W x 1.6 in D |
| Type: | Cable |
| Country of origin: | US |
| Housing material: | Polycarbonate |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102717 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-P11R2-H3R3 Universal Serial Bus Interface Device Number Of Ports 2 Power Device 120 VAC
Brand: Grace Technologies
Part Number: P-P11R2-H3R3
GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 2; Power Device: 120 VAC, 15 AMP, Used in US, Canada, Mexico, Japan And Taiwan; Length: 5.510 IN; Width: 1.650 IN; Connector: USB Type A-A F/M Extension With 10 FT Cable; Category 5e Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 3 AMP 250 V; Housing: 24 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
Additional Description: GRAC-P-P11R2-H3R3 N12/4 USB 10FT/ETHERNET (NO-CABLE)/120VAC 3A CB Device,GRACEPORT,2 Port,5.510 IN LEN,1.650 IN W
Catalog Description: GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 2; Power Device: 120 VAC, 15 AMP, Used in US, Canada, Mexico, Japan And Taiwan; Length: 5.510 IN; Width: 1.650 IN; Connector: USB Type A-A F/M Extension With 10 FT Cable; Category 5e Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 3 AMP 250 V; Housing: 24 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
P-P11R2-H3R3 Application
Outdoor UseP-P11R2-H3R3 Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
P-P11R2-H3R3 Standards
RoHSSKU #2262041Part Number #P-P11R2-H3R3UNSPSC32151708UPC00842864102717
Image provided may only be a representation of final product and may include optional equipment
