Part Number # P-P11R2-K3RF5
SKU # 2414347
P-P11R2-K3RF5
Grace Engineered Products P-P11R2-K3RF5 Cable Panel Interface Connector, Polycarbonate Housing
Part Number # P-P11R2-K3RF5
SKU # 2414347
Grace Technologies P-P11R2-K3RF5 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-P11R2-K3RF5 |
| SKU #: | 2414347 |
| Connector Type: | Female USB A x Male USB A |
| Dimensions: | 3.54 in H x 5.08 in W x 1.6 in D |
| Type: | Cable |
| Country of origin: | US |
| Housing material: | Polycarbonate |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-P11R2-K3RF5 Cable Panel Interface Connector, Polycarbonate Housing
Brand: Grace Technologies
Part Number: P-P11R2-K3RF5
Additional Description: GRAC-P-P11R2-K3RF5 N12/4 USB 10 FT/ ETHERNET/GFCI 5A CB Device,GRACEPORT,2 Port,5.080 IN LEN,1.650 IN W
Catalog Description: GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 2; Power Device: 120 VAC, 20 AMP, GFCI Inside-Outlet; Length: 580 IN; Width: 1.650 IN; Connector: USB Type A-A F/M Extension With 10 FT Cable; Category 5e Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 5 AMP 250 V; Housing: 32 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
P-P11R2-K3RF5 Application
Outdoor UseP-P11R2-K3RF5 Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
P-P11R2-K3RF5 Standards
UL Listed|CSA Certified|RoHS|CESKU #2414347Part Number #P-P11R2-K3RF5UNSPSC32151708UPC

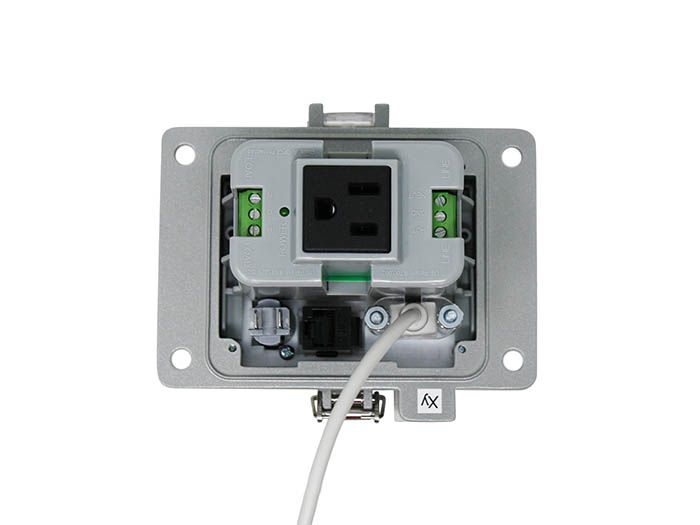

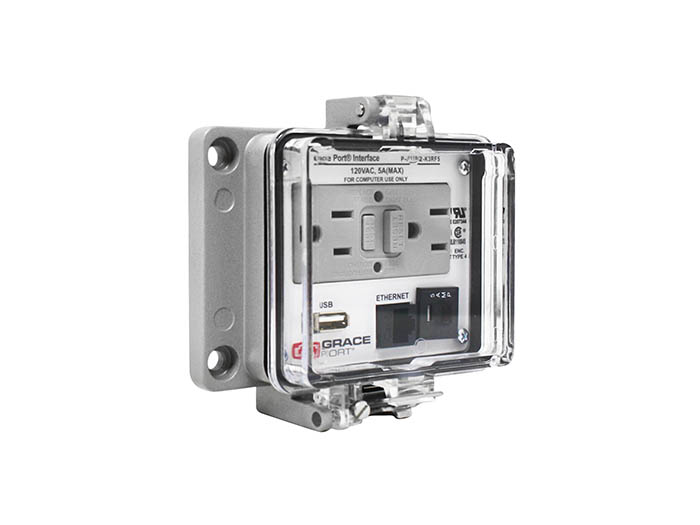

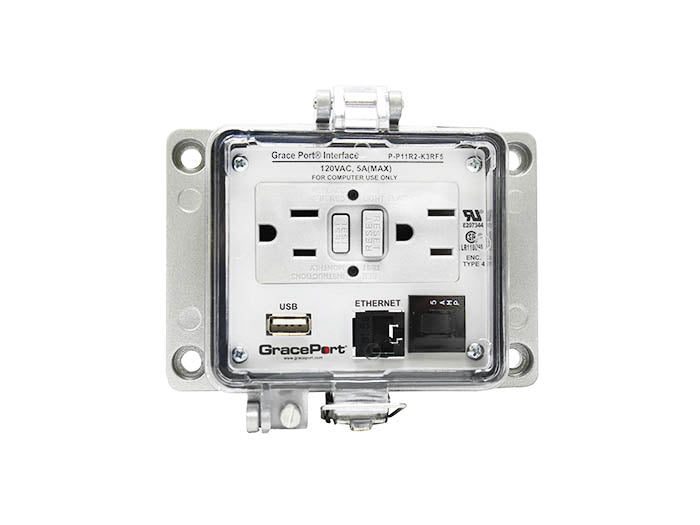

Image provided may only be a representation of final product and may include optional equipment
