Part Number # P-P15-B3RX
SKU # 2226512
P-P15-B3RX

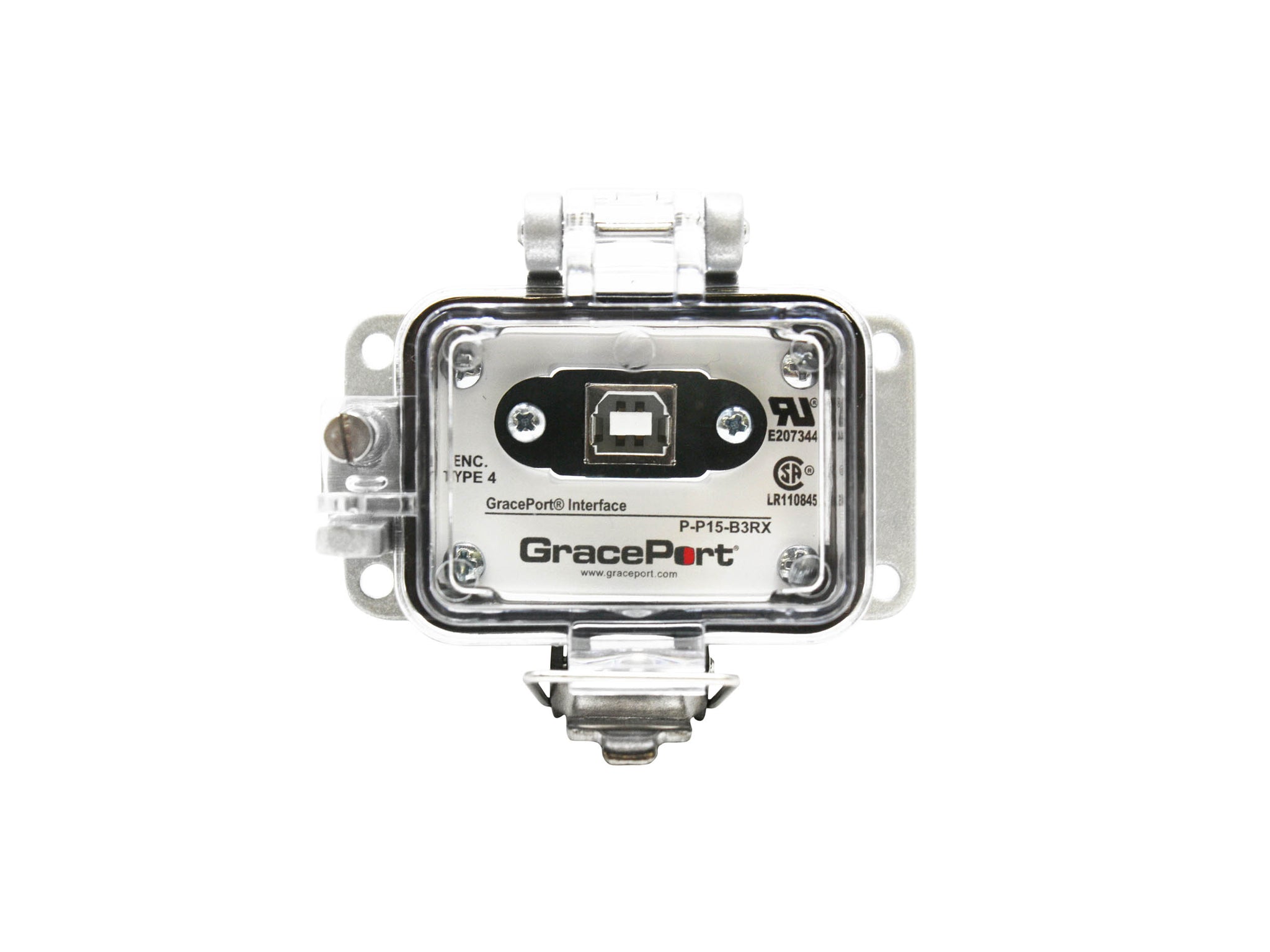

Grace Engineered Products P-P15-B3RX Universal Serial Bus Interface Device Number Of Ports 1 Power Device 120 VAC
Part Number # P-P15-B3RX
SKU # 2226512
Grace Technologies P-P15-B3RX Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-P15-B3RX |
| SKU #: | 2226512 |
| Connector Type: | Male USB B x Female USB B |
| Dimensions: | 1.72 in H x 3.75 in W x 1.6 in D |
| Type: | Cable |
| Country of origin: | US |
| Housing material: | Polycarbonate |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-P15-B3RX Universal Serial Bus Interface Device Number Of Ports 1 Power Device 120 VAC
Brand: Grace Technologies
Part Number: P-P15-B3RX
GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 1; Power Device: 120 VAC, 15 AMP, Used in US, Canada, Mexico, Japan And Taiwan; Length: 3.150 IN; Width: 1.650 IN; Connector: Type B-B F/M With 6 FT Cable; Housing: 6 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
Additional Description: GRAC-P-P15-B3RX N12/4 USB B-F - B-M 6 FT CABLE Device,GRACEPORT,1 Port,3.150 IN LEN,1.650 IN W
Catalog Description: GRACEPORT; Universal Serial Bus Interface Device; Number Of Ports: 1; Power Device: 120 VAC, 15 AMP, Used in US, Canada, Mexico, Japan And Taiwan; Length: 3.150 IN; Width: 1.650 IN; Connector: Type B-B F/M With 6 FT Cable; Housing: 6 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated; Mounting: Panel
P-P15-B3RX Application
Outdoor UseP-P15-B3RX Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
P-P15-B3RX Standards
UL Listed|CSA Certified|RoHSSKU #2226512Part Number #P-P15-B3RXUNSPSC32151708UPC
Image provided may only be a representation of final product and may include optional equipment
