Part Number # P-P22-B3RX
SKU # 2217734
Image Disclaimers Message
P-P22-B3RX

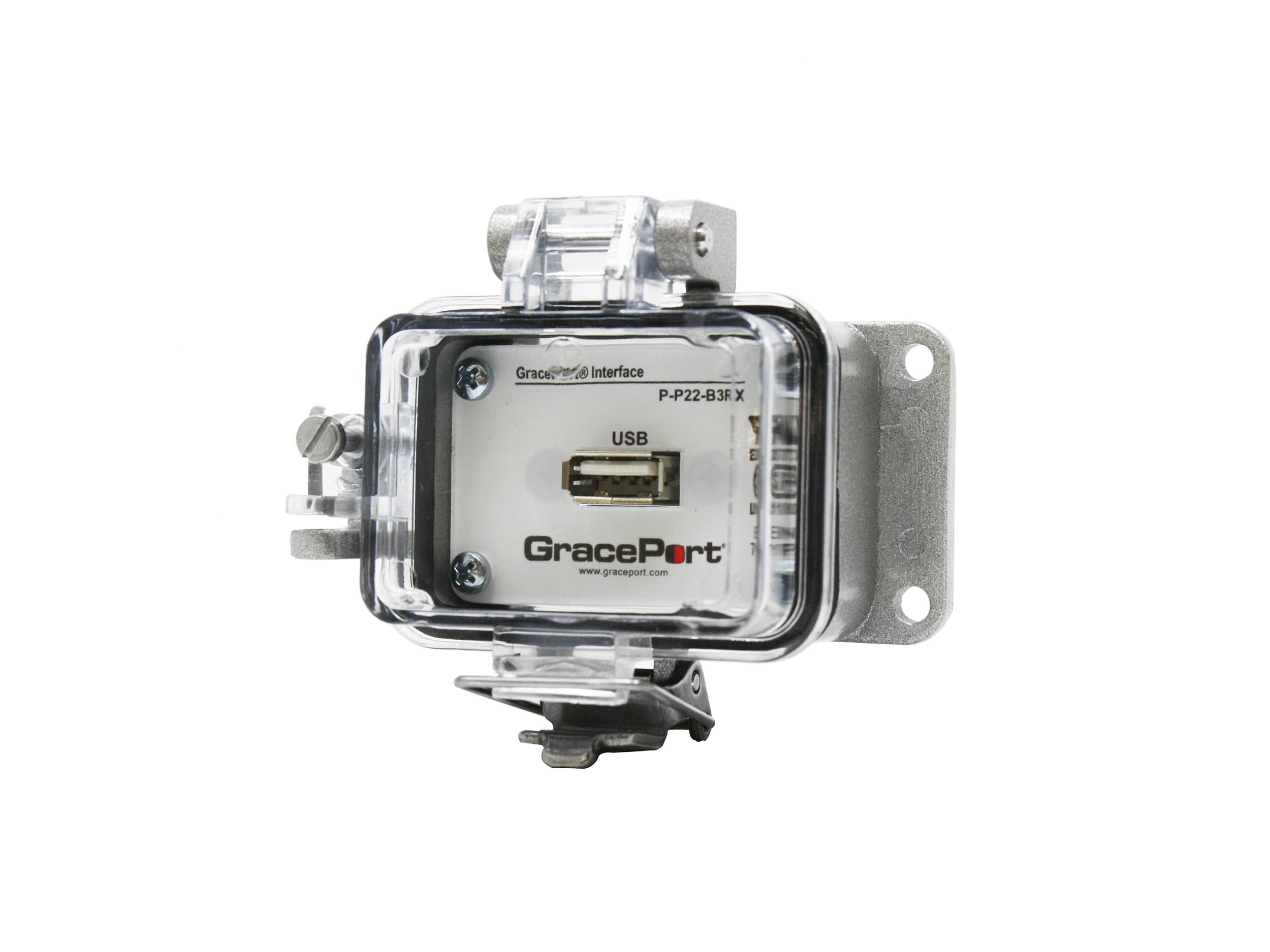

Grace Engineered Products P-P22-B3RX USB Connector
Part Number # P-P22-B3RX
SKU # 2217734
$232.62 / Each
Typical price:$240.00 / Each
Grace Technologies P-P22-B3RX Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-P22-B3RX |
| SKU #: | 2217734 |
| Connector Type: | USB Type A-A F/F Bulkhead |
| Country of origin: | US |
| Length: | 3.15, 3.15 in |
| Width: | 1.65, 1.65 in |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102328 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$232.62 / Each
Typical price:$240.00 / Each
Quantity:
Grace Engineered Products P-P22-B3RX USB Connector
Brand: Grace Engineered Products
Part Number: P-P22-B3RX
GracePorts USB Connector, USB Type A-A F/F Bulkhead Connector, 1 Port, 3.15 in Length, 1.65 in Width, Aluminum
Additional Description: GRAC-P-P22-B3RX N12/4 USB F-F/ (NO-CABLES) TYPE A/F TO A/F, PMH, UL TYPE 4, NO OUTLET
Catalog Description: PANEL INTERFACE CONNECTOR WITH USB TYPE A/F TO A/F, PMH, UL TYPE 4, NO OUTLET
P-P22-B3RX Application
Outdoor ApplicationsP-P22-B3RX Item Features
- Low voltage (data), Limited to 30 VDC, High voltage supply (for computer use only)
- 6 point housing, NEMA 12/4, IP-65
- UV rated, V-O flame rated, Panel mounting
- 120 VAC, 15 A, Used in US, Canada, Mexico, Japan and Taiwan Power Device
- Cast aluminum base, polycarbonate cover
P-P22-B3RX Standards
UL E207344|CSA LR110845 CertifiedSKU #2217734Part Number #P-P22-B3RXUNSPSC32151708UPC00842864102328
