Part Number # P-P43-B3RX
SKU # 2235087
Image Disclaimers Message
Brand: Grace Technologies
P-P43-B3RX
Grace Engineered Products P-P43-B3RX Through Panel Control Connection System
Part Number # P-P43-B3RX
SKU # 2235087
$499.15 / Each
Typical price:$515.00 / Each
Grace Technologies P-P43-B3RX Key Features
Brand: | Grace Technologies |
---|---|
Part Number # : | P-P43-B3RX |
SKU #: | 2235087 |
Mounting type: | Panel |
UNSPSC: | 32151910 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$499.15 / Each
Typical price:$515.00 / Each
Quantity:

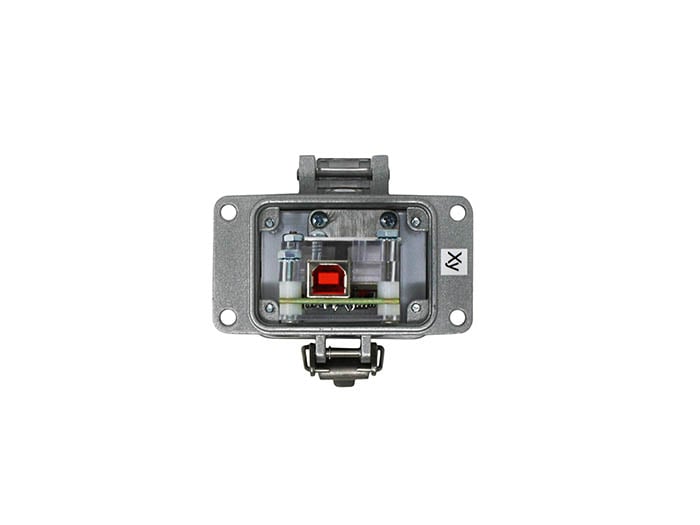

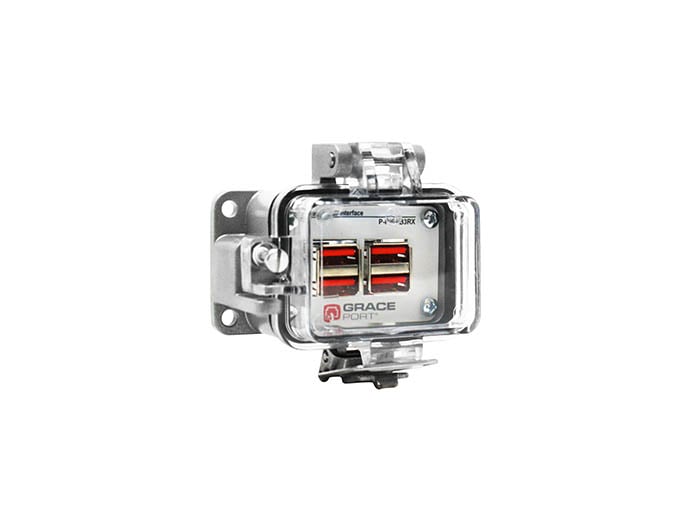

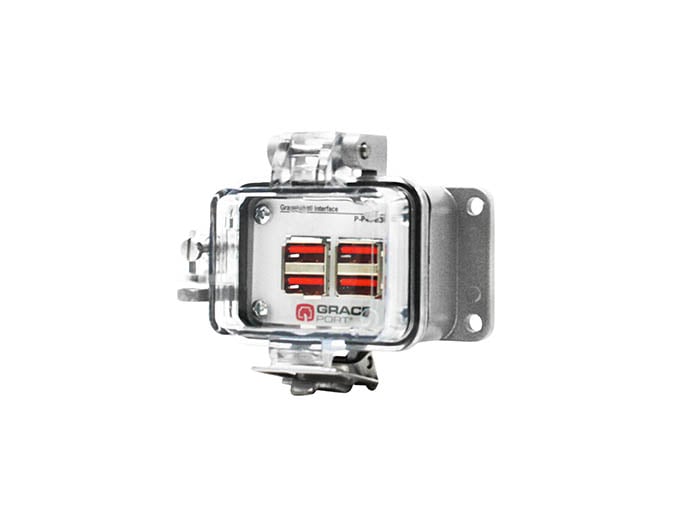

Grace Engineered Products P-P43-B3RX Through Panel Control Connection System
Additional Description: GRAC-P-P43-B3RX N12/4 USB 4 TO 1 HUB
P-P43-B3RX Item Features
- GracePort USB 4 to 1 hub connector code P43 represents USB-A female x USB-B female component
- Low voltage (data), limited to 30 VDC
- High voltage supply (for computer use only):120 VAC, 15 A according to UL, 5 A according to CSA and 230 to 240 VAC, 16 A according to CE only
- There are various connectors available and are represented by a 2- to 3-digit code
- Multiple connectors in a GracePort are listed alpha-numerically
- Several housing types are available to meet your needs
- The size of your housing depends on several variables including the kinds of components you choose, the power option you want and in some cases, the UL rating you need
- B3 housing code, NEMA 4/IP65 enclosure rated
- ThruView housings
- Many power options for international and domestic use are available and are represented by a 1-, 2- or 3-lettercode
- Null power option
- Because circuit breakers offer the ability to limit what devices can be run through the GracePort, we offer different amperage
- Customize section in our part number layout allows customers to specify additional needs including special text, logos, cable lengths and hole cutouts
- 1.72 in H x 3.15 in W x 1.6 in D product dimension
SKU #2235087Part Number #P-P43-B3RXUNSPSC32151910UPC
