Part Number # P-Q7R2-H3R0
SKU # 2214303
P-Q7R2-H3R0

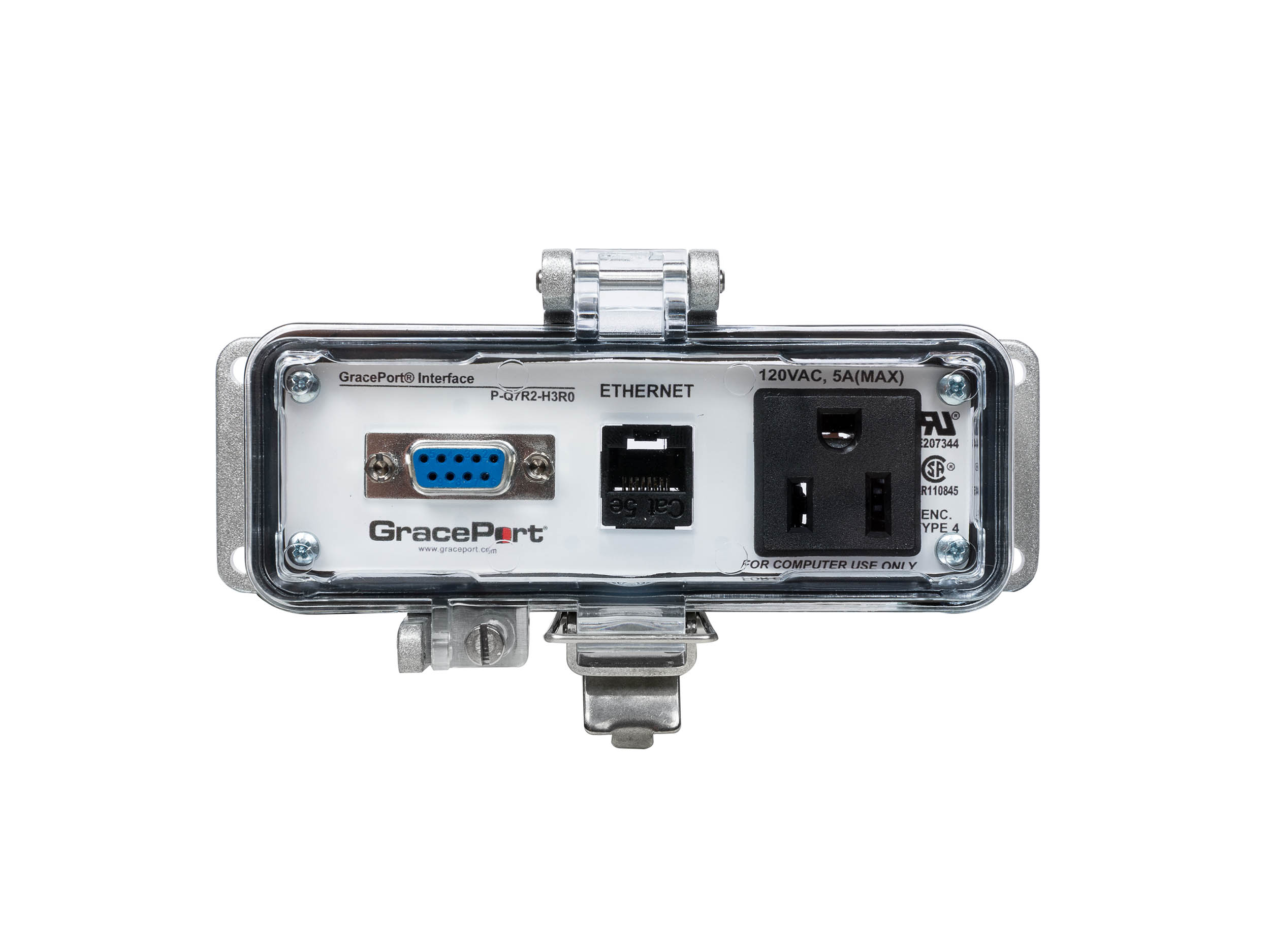

Grace Engineered Products P-Q7R2-H3R0 Panel Interface Connector
Part Number # P-Q7R2-H3R0
SKU # 2214303
Grace Technologies P-Q7R2-H3R0 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-Q7R2-H3R0 |
| SKU #: | 2214303 |
| Connector Type: | DB9 M/F Serial Port/Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 1.72 in H x 5.51 in W x 1.60 in D |
| Temperature Rating (Degrees F): | -10 to 60 deg C |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864101604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-Q7R2-H3R0 Panel Interface Connector
Brand: Grace Technologies
Part Number: P-Q7R2-H3R0
GracePorts , P-Q7R2-H3R0, Panel Interface Connector, Bulkhead, Panel Mounting, 120 VAC, DB9 M/F Serial Port/Cat 5e Ethernet RJ45 F/F Connector, Aluminum Housing Material, -10 to 60 deg C, Gray, 1.72 in H x 5.51 in W x 1.60 in D Dimensions
Additional Description: GRAC-P-Q7R2-H3R0 N12/4 DB9 F-M/ ETHERNET/120VAC F/M, RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, NO CB
Catalog Description: PANEL INTERFACE CONNECTOR WITH DB-9 F/M, RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, NO CB
P-Q7R2-H3R0 Application
For Indoor/OutdoorP-Q7R2-H3R0 Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- Programming ports eliminate the need to open the panel door
- Offer 15,000 combinations of components and outlets
P-Q7R2-H3R0 Standards
UL Listed|NFPA 70ESKU #2214303Part Number #P-Q7R2-H3R0UNSPSC32151708UPC00842864101604
Image provided may only be a representation of final product and may include optional equipment
