Grace Engineered Products P-R2#2-K3RF0 Computer Port Connector Interface
Part Number # P-R2#2-K3RF0
SKU # 2274634
Grace Technologies P-R2#2-K3RF0 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2#2-K3RF0 |
| SKU #: | 2274634 |
| Connector Type: | Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 5.08 in L x 1.65 in W x 3.54 in H |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864101666 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R2#2-K3RF0 Computer Port Connector Interface
Brand: Grace Engineered Products
Part Number: P-R2#2-K3RF0

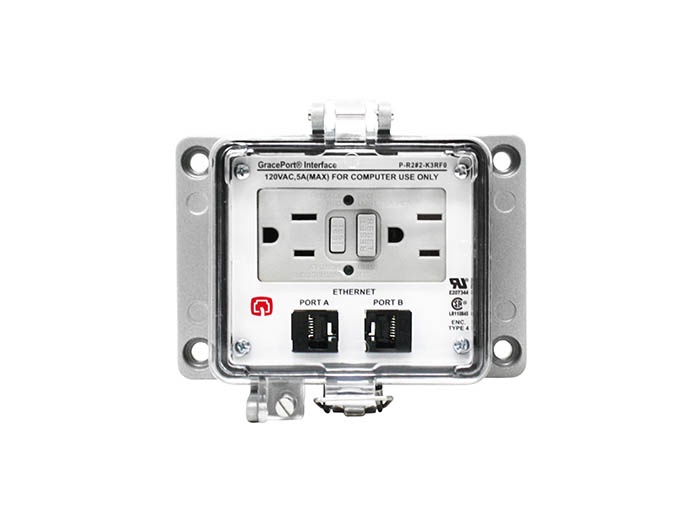

GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
Additional Description: GRAC-P-R2#2-K3RF0 N12/4 (2)10BASET RJ45 BULKHEAD 120VAC 20A GROUND FAULT 2 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, NO CB
Catalog Description: PANEL INTERFACE CONNECTOR WITH QTY 2 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, NO CB
P-R2#2-K3RF0 Application
Outdoor UseP-R2#2-K3RF0 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 2 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 120 VAC GFCI inside-outlet
- Without circuit breaker
P-R2#2-K3RF0 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2274634Part Number #P-R2#2-K3RF0UNSPSC32151708UPC00842864101666
