Part Number # P-R2-F3R3
SKU # 2057396
Image Disclaimers Message
Brand: Grace Technologies
P-R2-F3R3
Grace Engineered Products P-R2-F3R3 Computer Port Connector Interface
Part Number # P-R2-F3R3
SKU # 2057396
$204.51 / Each
Typical price:$211.00 / Each
Grace Technologies P-R2-F3R3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2-F3R3 |
| SKU #: | 2057396 |
| Connector Type: | Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 4.45 in L x 1.65 in W x 1.72 in H |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864101543 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$204.51 / Each
Typical price:$211.00 / Each
Quantity:

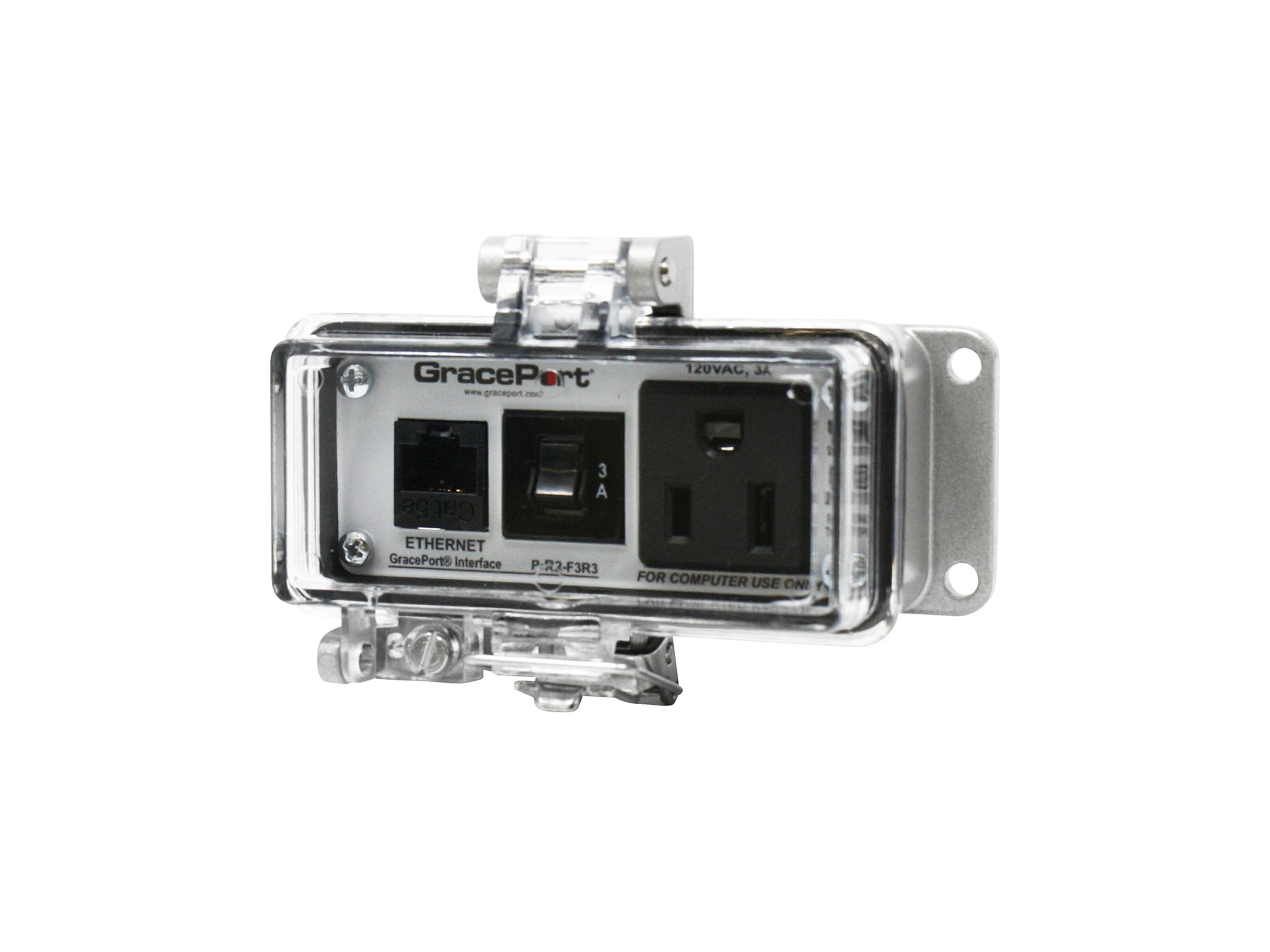

Grace Engineered Products P-R2-F3R3 Computer Port Connector Interface
Brand: Grace Engineered Products
Part Number: P-R2-F3R3
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 4.45 in L x 1.65 in W x 1.72 in H Dimensions
Additional Description: GRAC-P-R2-F3R3 N12/4 10BASET BULKHEAD CONNECT (NO-CABLE)120VAC & 3 AMP CB, RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET
Catalog Description: PANEL INTERFACE CONNECTOR WITH RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, 3 AMP CB
P-R2-F3R3 Application
Outdoor UseP-R2-F3R3 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 16 point, NEMA 12/4, IP65, cast alloy base enclosure
- 3 A 250 V circuit breaker
P-R2-F3R3 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2057396Part Number #P-R2-F3R3UNSPSC32151708UPC00842864101543
