Grace Engineered Products P-R2-H3R3 Ethernet Port Connector
Part Number # P-R2-H3R3
SKU # 1277087
P-R2-H3R3
Grace Engineered Products P-R2-H3R3 Ethernet Port Connector
Part Number # P-R2-H3R3
SKU # 1277087
Grace Technologies P-R2-H3R3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2-H3R3 |
| SKU #: | 1277087 |
| Wiring Code: | R2 |
| UNSPSC: | 32151708 |
| UPC: | 00842864101499 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R2-H3R3 Ethernet Port Connector
Brand: Grace Technologies
Part Number: P-R2-H3R3
GracePorts Ethernet Port Connector, Type 4, Panel Mounting, Wiring Code: R2, Category: Cat 5e
Additional Description: GRAC-P-R2-H3R3 N12/4 10BASET BULKHEAD CONNECTOR (NO-CABLE) 120VAC RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, 3 AMP CB
Catalog Description: PANEL INTERFACE CONNECTOR WITH RJ45, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, 3 AMP CB
P-R2-H3R3 Item Features
- IP65 enclosure rating
- Size H housing
- Low voltage (data), limited to 30 VDC
- High voltage supply (for computer use only) 120 VAC, 15A (UL), 5A (CSA) , 230 to 240 VAC, 16A (CE only)
- Cast aluminum base housing
- Type 304 stainless steel latch (1CR18NI19)
- Polycarbonate, UV rated, V-O flame rated cover
- Thermoplastic elastomer gasket
- Acrylic UL94 HB insert
- RJ45 F/F bulkhead connector
- NEMA 12/4 rated housing
- Simplex power
- 3 A circuit breaker
- ThruView housing
- 1.72 in H x 5.51 in W x 1.6 in D
P-R2-H3R3 Standards
UL E207344|CSA LR110845|CE EN61010/EN60950|RoHS Compliant|UR ListedSKU #1277087Part Number #P-R2-H3R3UNSPSC32151708UPC00842864101499

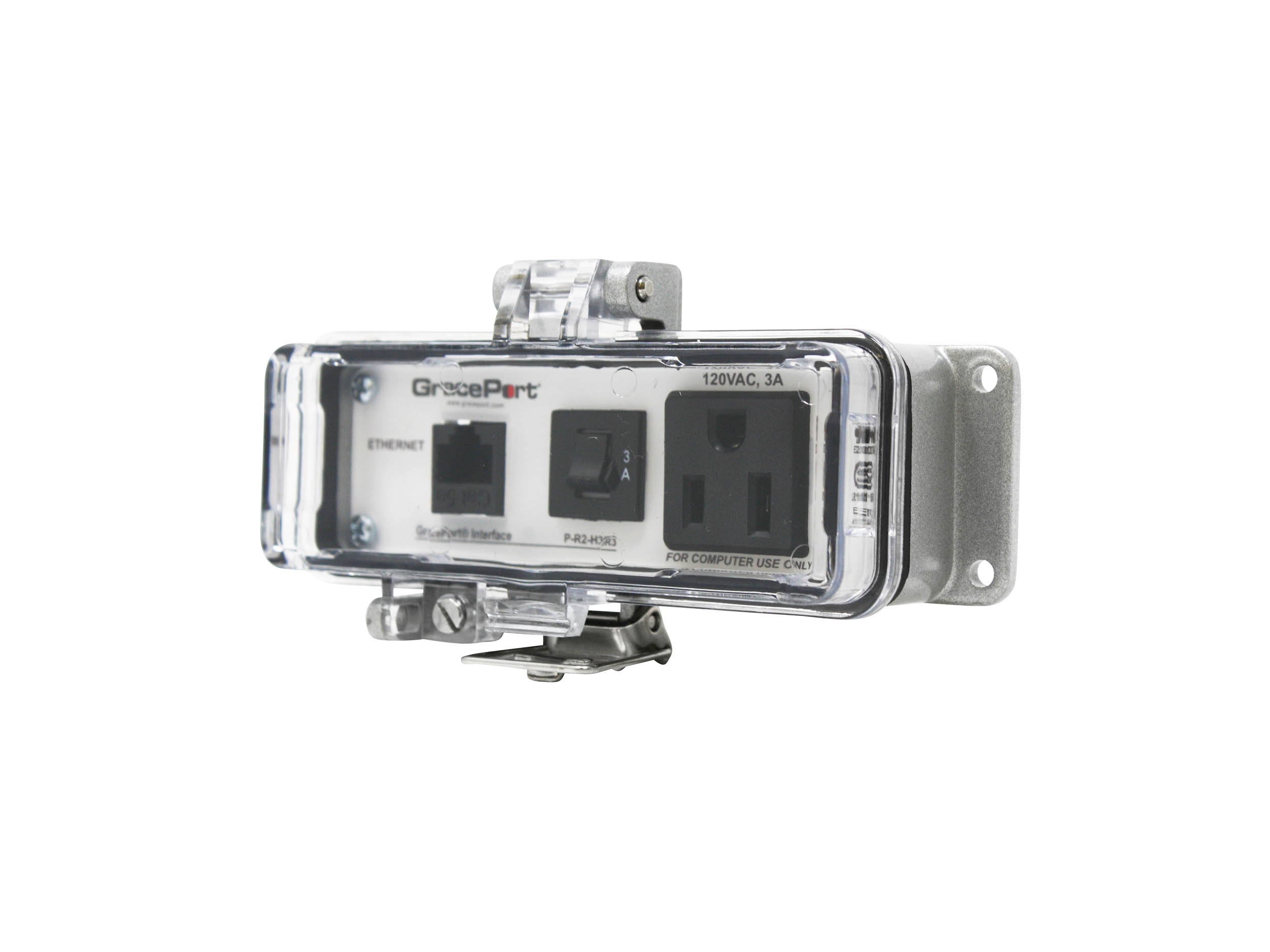

Image provided may only be a representation of final product and may include optional equipment
