Part Number # P-R2-K3RD3
SKU # 2357305
Image Disclaimers Message
Brand: Grace Technologies
P-R2-K3RD3

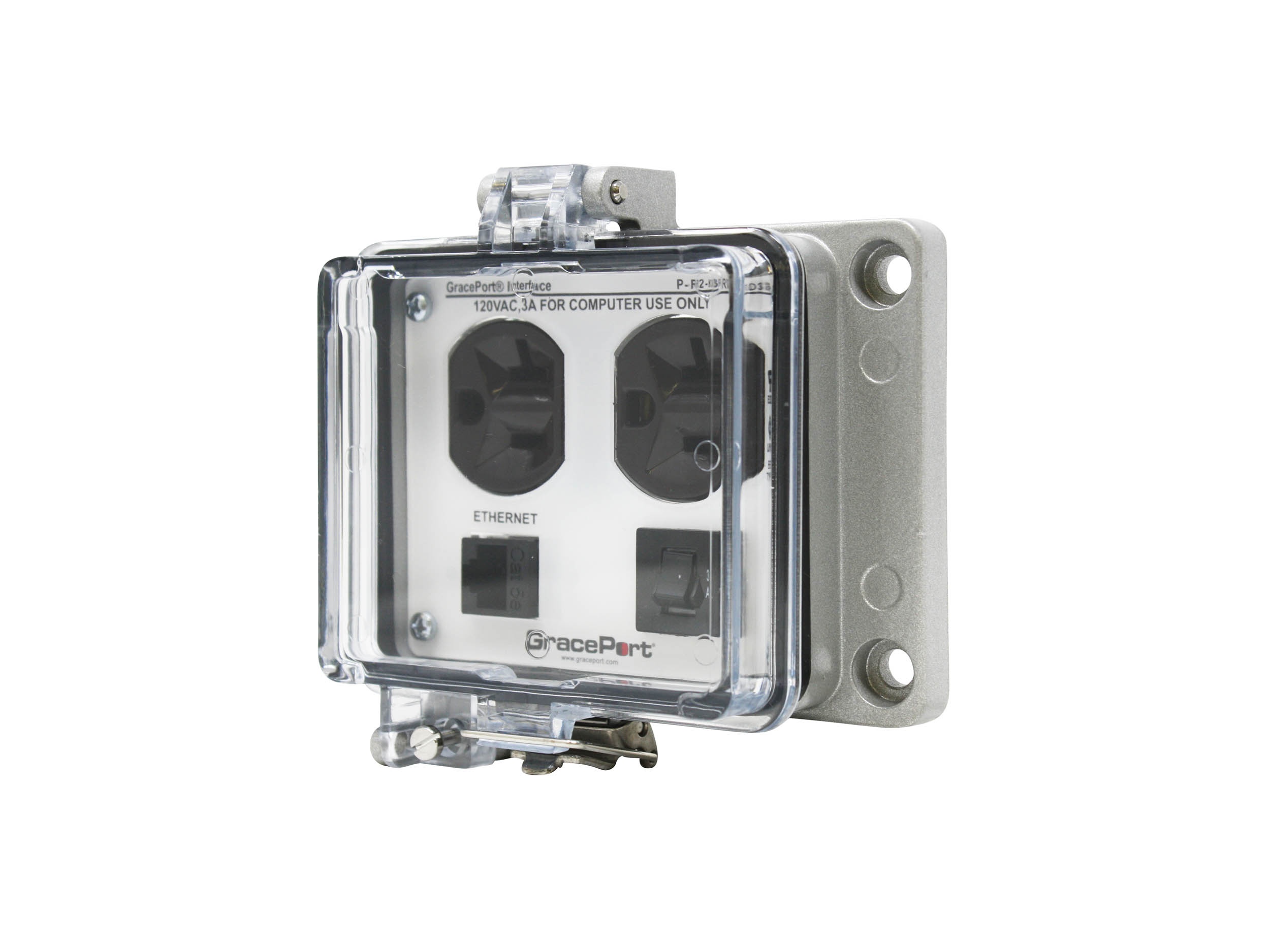

Grace Engineered Products P-R2-K3RD3 Computer Port Connector Interface
Part Number # P-R2-K3RD3
SKU # 2357305
$260.72 / Each
Typical price:$269.00 / Each
Grace Technologies P-R2-K3RD3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2-K3RD3 |
| SKU #: | 2357305 |
| Connector Type: | Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 5.08 in L x 1.65 in W x 3.54 in H |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102007 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$260.72 / Each
Typical price:$269.00 / Each
Quantity:
- GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
P-R2-K3RD3 Application
Outdoor UseP-R2-K3RD3 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 3 A 250 V circuit breaker
- 120 VAC duplex outlet
P-R2-K3RD3 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2357305Part Number #P-R2-K3RD3UNSPSC32151708UPC00842864102007
