Part Number # P-R2-K3RF2
SKU # 2382804
P-R2-K3RF2

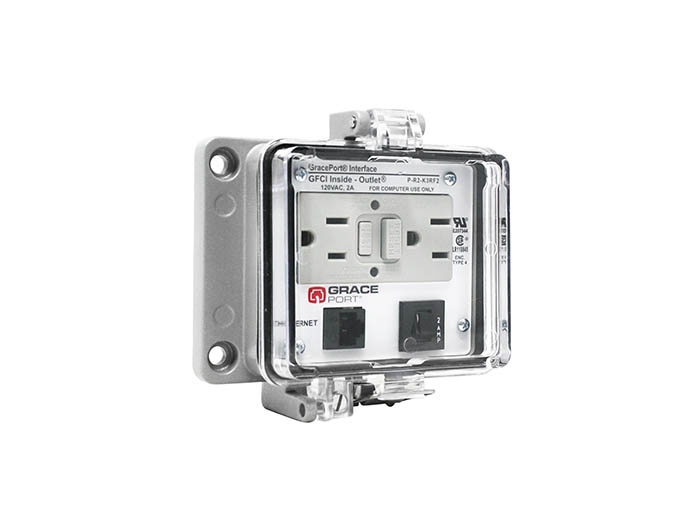

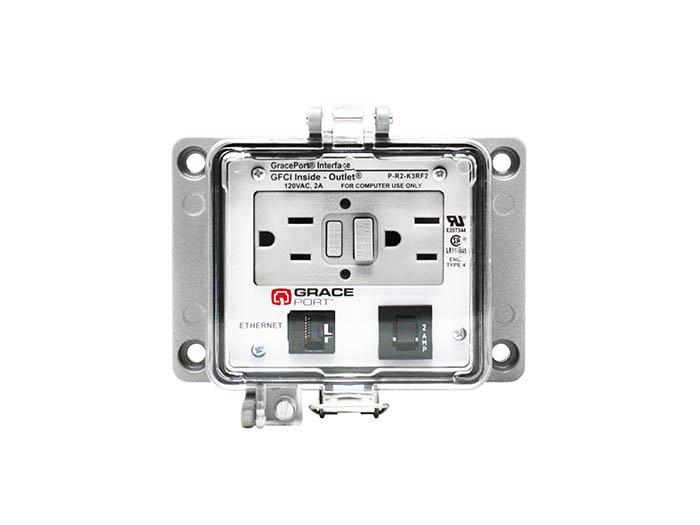

Grace Engineered Products P-R2-K3RF2 Computer Port Connector Interface
Part Number # P-R2-K3RF2
SKU # 2382804
Grace Technologies P-R2-K3RF2 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2-K3RF2 |
| SKU #: | 2382804 |
| Connector Type: | Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 5.08 in L x 1.65 in W x 3.54 in H |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864101956 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R2-K3RF2 Computer Port Connector Interface
Brand: Grace Technologies
Part Number: P-R2-K3RF2
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
Additional Description: GRAC-P-R2-K3RF2 N12/4 CAT 5 ETHERNET /GFCI 2A CB RJ45, PMH, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, 2 AMP CB Interface,GRACEPORT,120 VAC,20 AMP,GFCI Inside-Outlet
Catalog Description: PANEL INTERFACE CONNECTOR WITH RJ45, PMH, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, 2 AMP CB
P-R2-K3RF2 Application
Outdoor UseP-R2-K3RF2 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 120 VAC GFCI inside-outlet
P-R2-K3RF2 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2382804Part Number #P-R2-K3RF2UNSPSC32151708UPC00842864101956
Image provided may only be a representation of final product and may include optional equipment
