Brand: Grace Technologies
P-R2-K3RF5

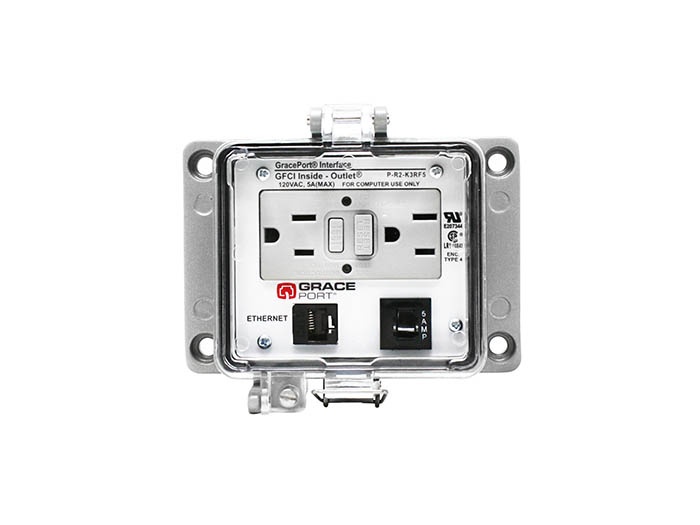

Grace Engineered Products P-R2-K3RF5 Computer Port Connector Interface
Part Number # P-R2-K3RF5
SKU # 2208327
$230.68 / Each
Typical price:$238.00 / Each
Grace Technologies P-R2-K3RF5 Key Features
Brand: Grace Technologies
Part Number # P-R2-K3RF5
SKU #2208327
Connector Type: Cat 5e Ethernet RJ45 F/F
Dimensions: 5.08 in L x 1.65 in W x 3.54 in H
Type: Bulkhead
Voltage Rating: 120 VAC, 30 VDC, 120 VAC/30 VDC
Country of origin: US
Housing material: Plastic
Mounting type: Panel
Manufacturer Name: Grace Technologies
UNSPSC: 32151708
UPC: 00842864101642
$230.68 / Each
Typical price:$238.00 / Each
SKU # 2208327
Part Number # P-R2-K3RF5
Grace Engineered Products P-R2-K3RF5 Computer Port Connector Interface
Brand: Grace Engineered Products
Part Number: P-R2-K3RF5
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
Additional Description: GRAC-P-R2-K3RF5 N12/4 ETHERNET/ GFCI 5A CB RJ45, PANEL MOUNT HOUSING, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, 5 AMP CB
Catalog Description: PANEL INTERFACE CONNECTOR WITH RJ45, PANEL MOUNT HOUSING, UL TYPE 4, GFCI DUPLEX INSIDE-OUTLET, 5 AMP CB
P-R2-K3RF5 Application
Outdoor UseP-R2-K3RF5 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 120 VAC GFCI inside-outlet
P-R2-K3RF5 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2208327Part Number #P-R2-K3RF5UNSPSC32151708UPC00842864101642
