Part Number # P-R2-K4R3
SKU # 2200900
Image Disclaimers Message
P-R2-K4R3

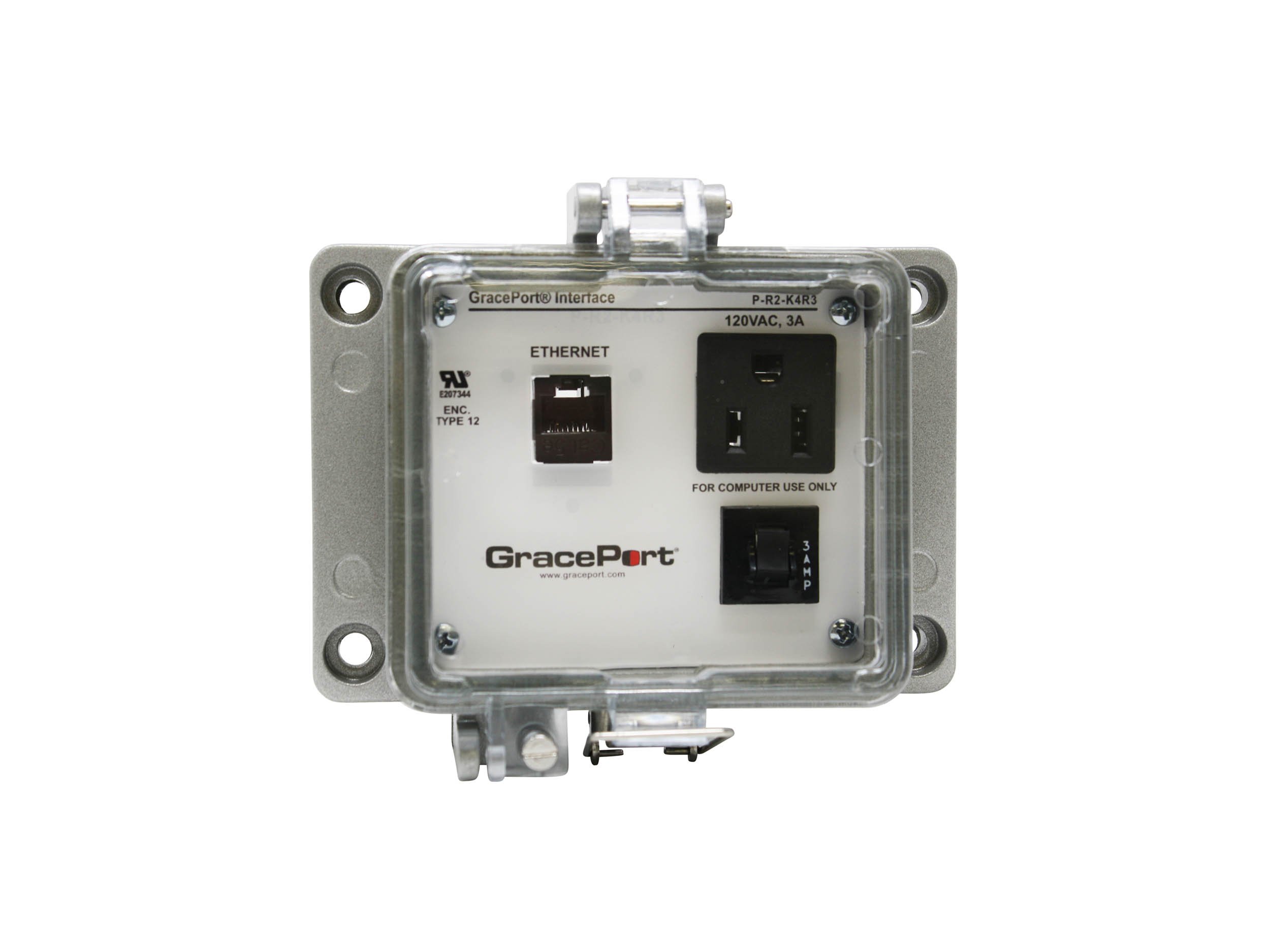

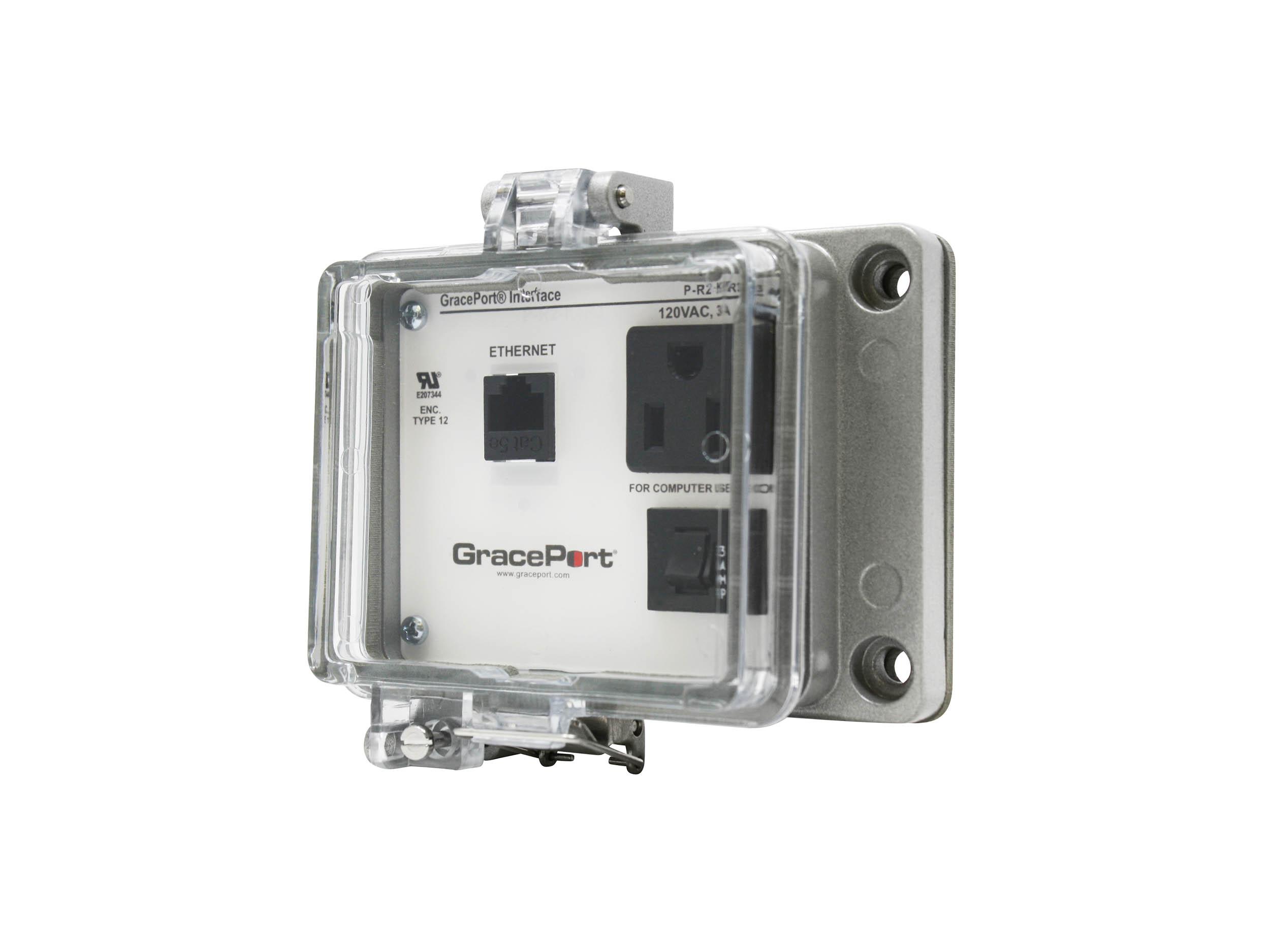

Grace Engineered Products P-R2-K4R3 Computer Port Connector Interface Mounting Panel Length 580 IN Width 1650 IN Height 3540 IN Enclosure 32 Point
Part Number # P-R2-K4R3
SKU # 2200900
Grace Technologies P-R2-K4R3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R2-K4R3 |
| SKU #: | 2200900 |
| Connector Type: | Cat 5e RJ45 Port |
| Dimensions: | 3.54 in H x 5.08 in W x 1.60 in D |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102496 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R2-K4R3 Computer Port Connector Interface Mounting Panel Length 580 IN Width 1650 IN Height 3540 IN Enclosure 32 Point
Brand: Grace Engineered Products
Part Number: P-R2-K4R3
GRACEPORT; Computer Port Connector Interface; Mounting: Panel; Length: 580 IN; Width: 1.650 IN; Height: 3.540 IN; Enclosure: 32 Point, NEMA 12, Cast Alloy Base; Connector: Category 5e Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 3 AMP 250 V; Number Of Ports: 1; Cover Material: Plastic
Additional Description: GRAC-P-R2-K4R3 UL TYPE 12/ETHERNET/ 120VAC/ 3A CB RJ45, PMH, UL TYPE 12, SIMPLEX OUTLET, 3 AMP CB Interface,GRACEPORT,PNL Mount,5.080 IN LEN,1.650 IN W
Catalog Description: PANEL INTERFACE CONNECTOR WITH RJ45, PMH, UL TYPE 12, SIMPLEX OUTLET, 3 AMP CB
P-R2-K4R3 Application
For Indoor applicationP-R2-K4R3 Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
- R2 Component Code, RJ45 Female Front/Back
- Domestic Simplex Power Outlet, 15 Power AMPs, 3A Circuit Breaker
- K Size Housing, Type 304 Stainless Steel Latch
P-R2-K4R3 Standards
NFPA 70E Compliant|UL Type 12|RoHS Compliant|CE Certified|UL E207344SKU #2200900Part Number #P-R2-K4R3UNSPSC32151708UPC00842864102496
