Part Number # P-R33-B3RX
SKU # 2295852
Image Disclaimers Message
P-R33-B3RX

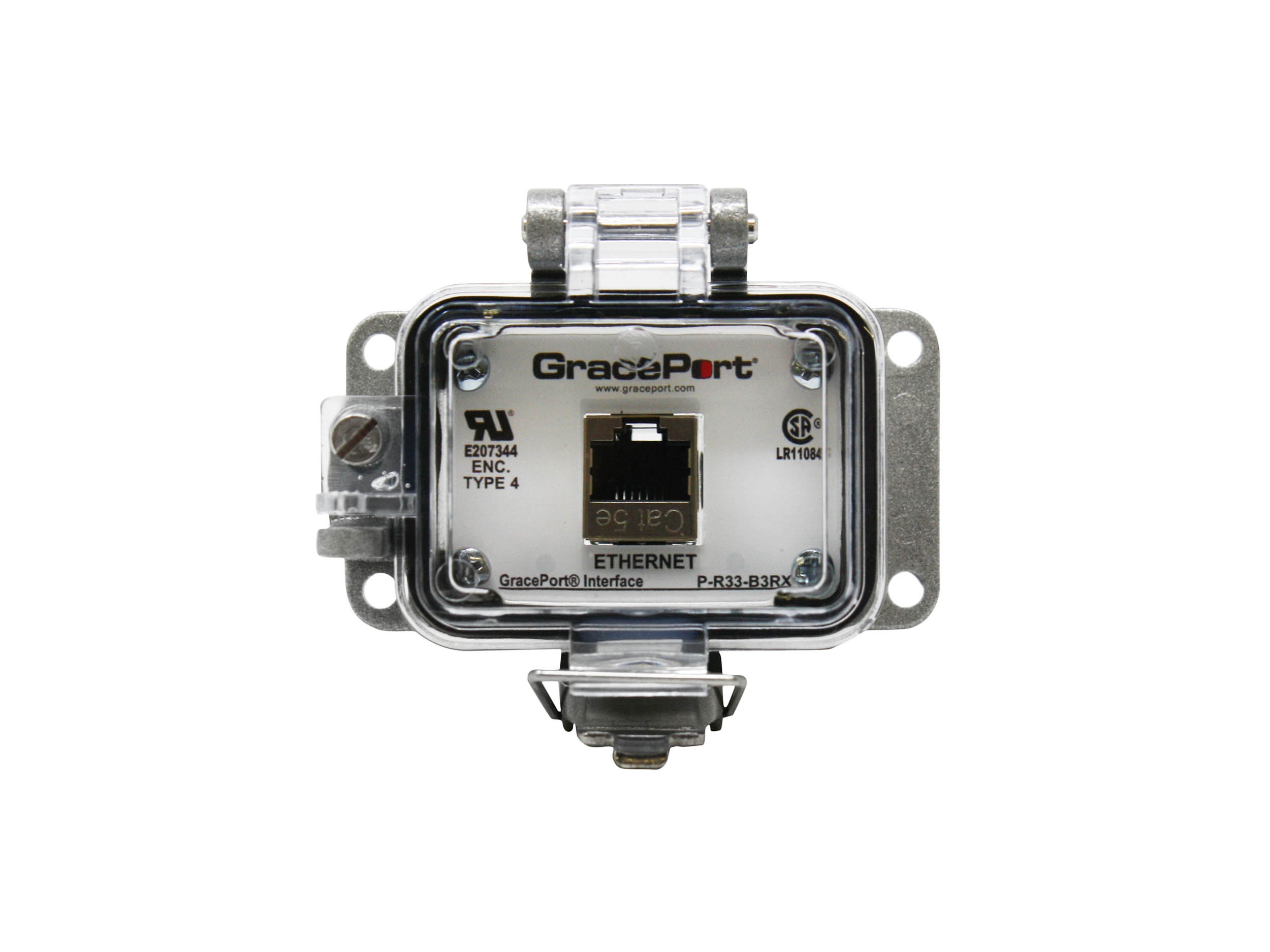

Grace Engineered Products P-R33-B3RX Ethernet Port Connector Mounting Panel Length 3150 IN Width 1650 IN Height 1720 IN Enclosure 6 Point
Part Number # P-R33-B3RX
SKU # 2295852
Grace Technologies P-R33-B3RX Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R33-B3RX |
| SKU #: | 2295852 |
| Connector Type: | Cat 5e Ethernet RJ45 F/F |
| Dimensions: | 1.72 in H x 3.75 in W x 1.60 in D |
| Type: | Bulkhead |
| Color: | Gray |
| Country of origin: | US |
| Housing material: | Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102571 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R33-B3RX Ethernet Port Connector Mounting Panel Length 3150 IN Width 1650 IN Height 1720 IN Enclosure 6 Point
Brand: Grace Engineered Products
Part Number: P-R33-B3RX
GRACEPORT; Ethernet Port Connector; Mounting: Panel; Length: 3.150 IN; Width: 1.650 IN; Height: 1.720 IN; Enclosure: 6 Point, NEMA 12/4, IP-65, Cast Aluminum Base; Connector: Category 5e Shielded RJ45 F/F Bulkhead; Number Of Ports: 1; Cover Material: Polycarbonate, UV Rated, V-O Flame Rated
Additional Description: GRAC-P-R33-B3RX N12/4 CAT 5 ETHERNET 10BASET SHIELDED INTF. SHIELDED RJ45, PMH, UL TYPE 4, NO OUTLET Connector,GRACEPORT,PNL Mount,3.150 IN LEN,1.650 IN W,1.720 IN HT
Catalog Description: PANEL INTERFACE CONNECTOR WITH SHIELDED RJ45, PMH, UL TYPE 4, NO OUTLET
P-R33-B3RX Application
For Indoor/Outdoor applicationP-R33-B3RX Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
- R33 Component Code, RJ45 Female Front/Back
- No Power Option
- B Size Housing, Type 304 Stainless Steel Latch
P-R33-B3RX Standards
UL Type 4|NFPA 70E CompliantSKU #2295852Part Number #P-R33-B3RXUNSPSC32151708UPC00842864102571
