Part Number # P-R62-F3R3
SKU # 2317070
P-R62-F3R3

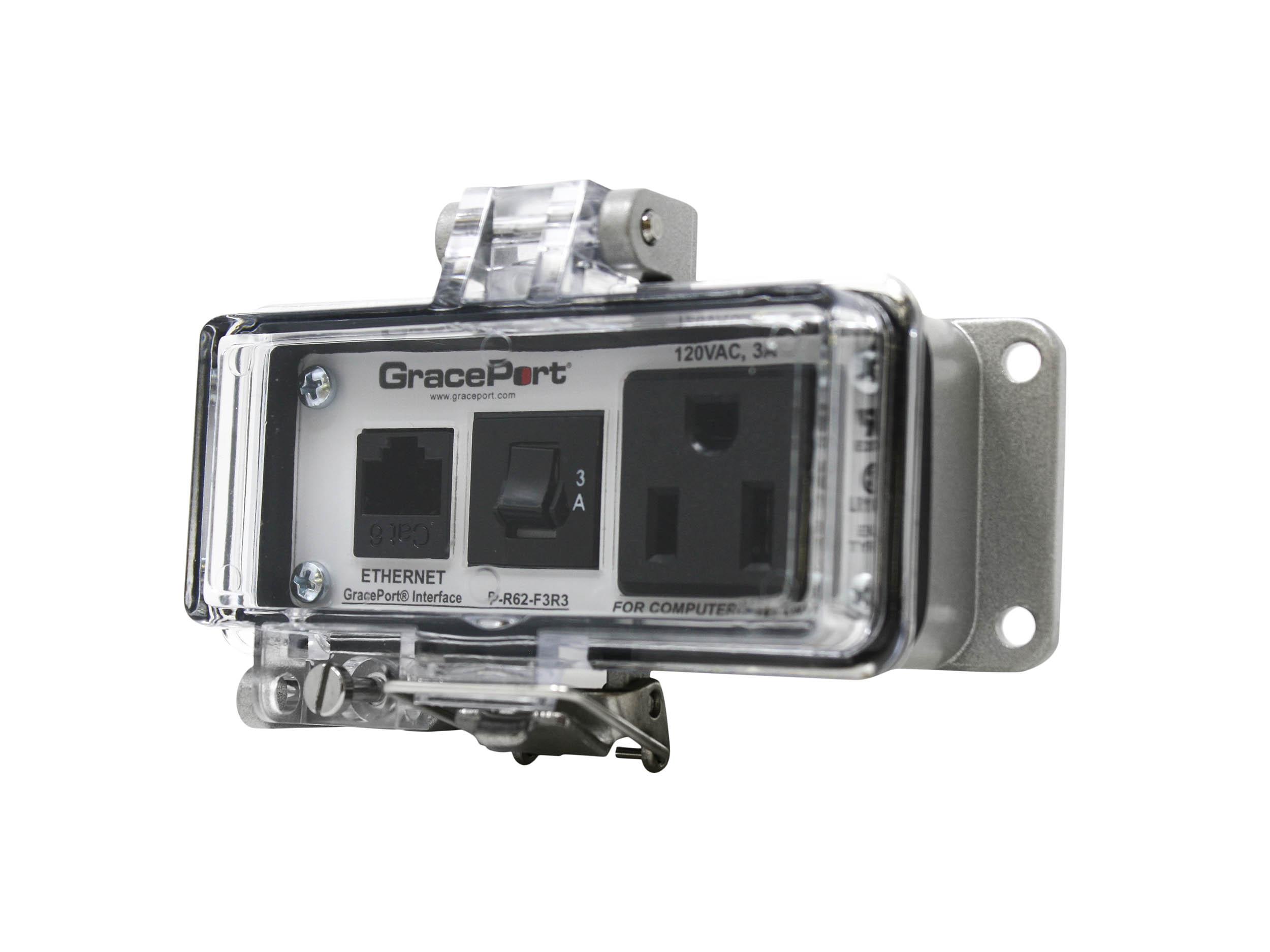

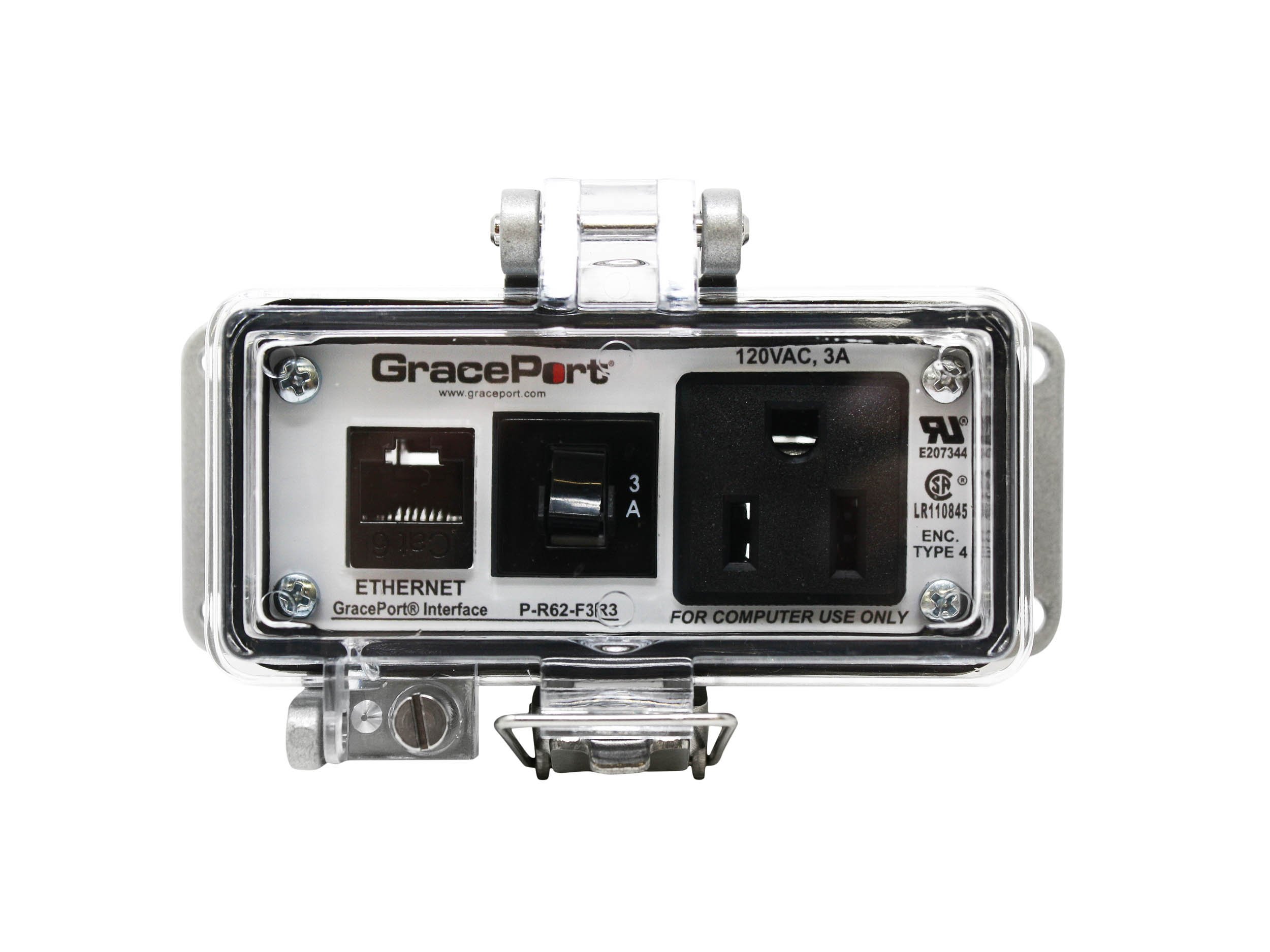

Grace Engineered Products P-R62-F3R3 Computer Port Connector Interface Mounting Panel Length 4450 IN Width 1650 IN Height 1720 IN Enclosure 16 Point
Part Number # P-R62-F3R3
SKU # 2317070
Grace Technologies P-R62-F3R3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R62-F3R3 |
| SKU #: | 2317070 |
| Connector Type: | Cat 6 Ethernet RJ45 F/F |
| Dimensions: | 1.72 in H x 4.45 in W x 1.60 in D |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864102403 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R62-F3R3 Computer Port Connector Interface Mounting Panel Length 4450 IN Width 1650 IN Height 1720 IN Enclosure 16 Point
Brand: Grace Technologies
Part Number: P-R62-F3R3
GRACEPORT; Computer Port Connector Interface; Mounting: Panel; Length: 4.450 IN; Width: 1.650 IN; Height: 1.720 IN; Enclosure: 16 Point, NEMA 12/4, IP-65, Cast Alloy Base; Connector: Category 6 Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 3 AMP 250 V; Number Of Ports: 1; Cover Material: Plastic
Additional Description: GRAC-P-R62-F3R3 N12/4 CAT 6 ETHERNET (NO-CABLE)/120VAC 3A CB CATEGORY 6 ETHERNET BULKHEAD, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, 3 AMP CIRCUIT BREAKER Interface,GRACEPORT,PNL Mount,4.450 IN LEN,1.650 IN W
Catalog Description: PANEL INTERFACE CONNECTOR WITH CATEGORY 6 ETHERNET BULKHEAD, PANEL MOUNT HOUSING, UL TYPE 4, SIMPLEX OUTLET, 3 AMP CIRCUIT BREAKER
P-R62-F3R3 Application
For Indoor/Outdoor applicationP-R62-F3R3 Item Features
- Panel Interface Connector that typically mounts to the outside of a control panel housing
- These programming ports eliminate the need to open the panel door and improve safety and compliance to NFPA 70e
- R62 Component Code, RJ45 Female Front/Back
- Domestic Simplex Power Outlet, 15 Power AMPs, 3A Circuit Breaker
- F Size Housing, Type 304 Stainless Steel Latch
P-R62-F3R3 Standards
NFPA 70E Compliant|UL Type 4SKU #2317070Part Number #P-R62-F3R3UNSPSC32151708UPC00842864102403
Image provided may only be a representation of final product and may include optional equipment
