Part Number # P-R62-K3RF3
SKU # 2267923
P-R62-K3RF3

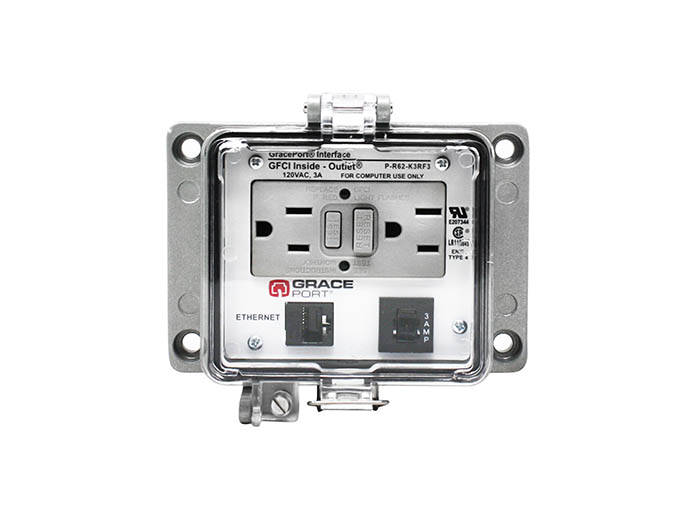

Grace Engineered Products P-R62-K3RF3 Computer Port Connector Interface
Part Number # P-R62-K3RF3
SKU # 2267923
Grace Technologies P-R62-K3RF3 Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-R62-K3RF3 |
| SKU #: | 2267923 |
| Connector Type: | Cat 6 Ethernet RJ45 F/F |
| Dimensions: | 5.08 in L x 1.65 in W x 3.54 in H |
| Type: | Bulkhead |
| Country of origin: | US |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00842864101598 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Grace Engineered Products P-R62-K3RF3 Computer Port Connector Interface
Brand: Grace Technologies
Part Number: P-R62-K3RF3
GracePorts Computer Port Connector Interface, Bulkhead, Panel Mounting, 120 VAC, 30 VDC, Cat 6 Ethernet RJ45 F/F Connector, Plastic Housing Material, 5.08 in L x 1.65 in W x 3.54 in H Dimensions
Additional Description: GRAC-P-R62-K3RF3 N12/4 CAT 6 ETHERNET/ GFCI 3A CB 6 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, UNIVERSAL INTERNATIONAL OUTLET, 3 AMP CB TYPE 4, UNIVERSAL INTERNATIONAL OUTLET, 3 AMP CB 6 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, UNIVERSAL INTERNATIONAL OUTLET, 3 AMP CB 6 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, UNIVERSAL INTERNATIONAL OUTLET, 3 AMP CB Mounting: Panel; Length: 580 IN; Width: 1.650 IN; Height: 3.540 IN; Enclosure: 32 Point, NEMA 12/4, IP-65, Cast Alloy Base; Connector: Category 6 Ethernet RJ45 F/F Bulkhead; Circuit Breaker: 3 AMP 250 V; Number Of Ports: 1; Cover Material: Plastic
Catalog Description: PANEL INTERFACE CONNECTOR WITH CAT 6 RJ45, PANEL MOUNT HOUSING, UL TYPE 4, UNIVERSAL INTERNATIONAL OUTLET, 3 AMP CB
P-R62-K3RF3 Application
Outdoor UseP-R62-K3RF3 Item Features
- Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
- Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
- Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
- Low-profile circuit board interfaces simplify installation where backplane clearance is limited
- The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
- Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
- 1 port
- 32 point, NEMA 12/4, IP65, cast alloy base enclosure
- 3 A 250 V circuit breaker
- 120 VAC GFCI inside-outlet
P-R62-K3RF3 Standards
UL E207344|CSA LR110845|RU/RoHS CompliantSKU #2267923Part Number #P-R62-K3RF3UNSPSC32151708UPC00842864101598
Image provided may only be a representation of final product and may include optional equipment
