Part Number # P-S10S21-M2RX-V
SKU # 2351470
Brand: Grace Technologies
P-S10S21-M2RX-V
Grace Engineered Products P-S10S21-M2RX-V Control Network Pc Interface
Part Number # P-S10S21-M2RX-V
SKU # 2351470
$573.16 / Each
Typical price:$616.00 / Each
Grace Technologies P-S10S21-M2RX-V Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-S10S21-M2RX-V |
| SKU #: | 2351470 |
| Dimensions: | 3.78 in H x 6.50 in W x 1.60 in D |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -45 to 85 deg C Storage Temperature, -20 to 55 deg C Operational Temperature |
| Frequency Rating: | 50/60/400 Hz |
| Maximum Working Voltage: | 600 V AC, 600 VAC |
| Country of origin: | US |
| Material: | Polycarbonate |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151803 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$573.16 / Each
Typical price:$616.00 / Each
Quantity:
Grace Engineered Products P-S10S21-M2RX-V Control Network Pc Interface
Brand: Grace Technologies
Part Number: P-S10S21-M2RX-V
Additional Description: GRAC-P-S10S21-M2RX-V UL 4X R-3W AND TEST POINT WI IMPEDANCE INDICATOR AND SAFE TEST POINT, VERTICAL/FLANGE MOUNT, UL TYPE 4X HOUSING

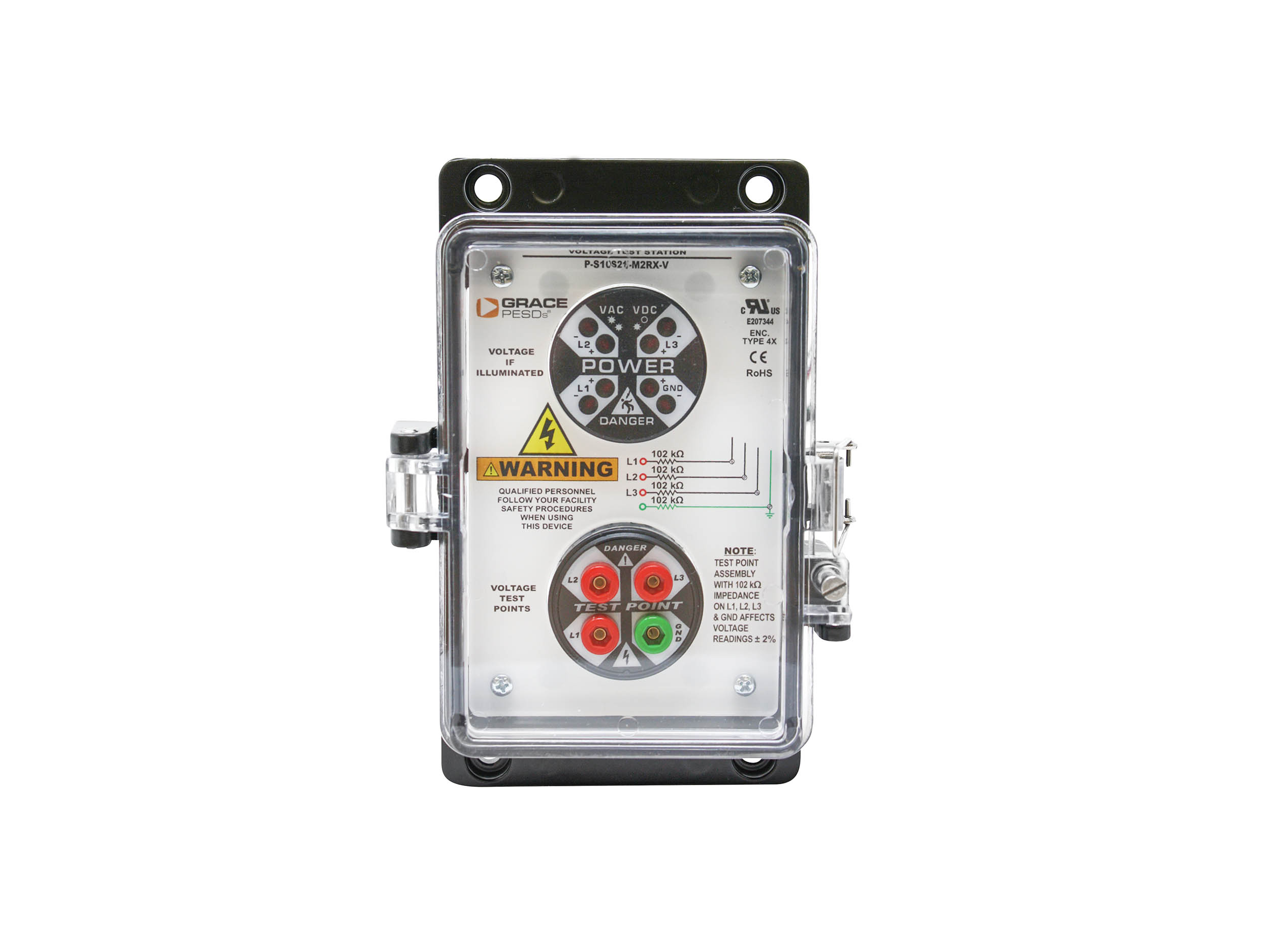

Catalog Description: VOLTAGE TEST STATION WITH VOLTAGE INDICATOR AND SAFE TEST POINT, VERTICAL/FLANGE MOUNT, UL TYPE 4X HOUSING
P-S10S21-M2RX-V Application
For Indoor/Outdoor applicationP-S10S21-M2RX-V Includes
Voltage Indicator (R-3W), Safe-Test Point (R-3MT), UL Type 4X Housing and Vertical/Flange MountP-S10S21-M2RX-V Item Features
- 30-600 VDC Operational Range DC or Stored Energy, M Size Housing
- Type 304 Stainless Steel Latch, Polycarbonate, UV rated Cover
P-S10S21-M2RX-V Standards
UL Type 4X|RoHS Compliant|CE Certified|UL E207344SKU #2351470Part Number #P-S10S21-M2RX-VUNSPSC32151803UPC
Image provided may only be a representation of final product and may include optional equipment
