Part Number # P-S12S21-M3RX-V
SKU # 2415388
P-S12S21-M3RX-V

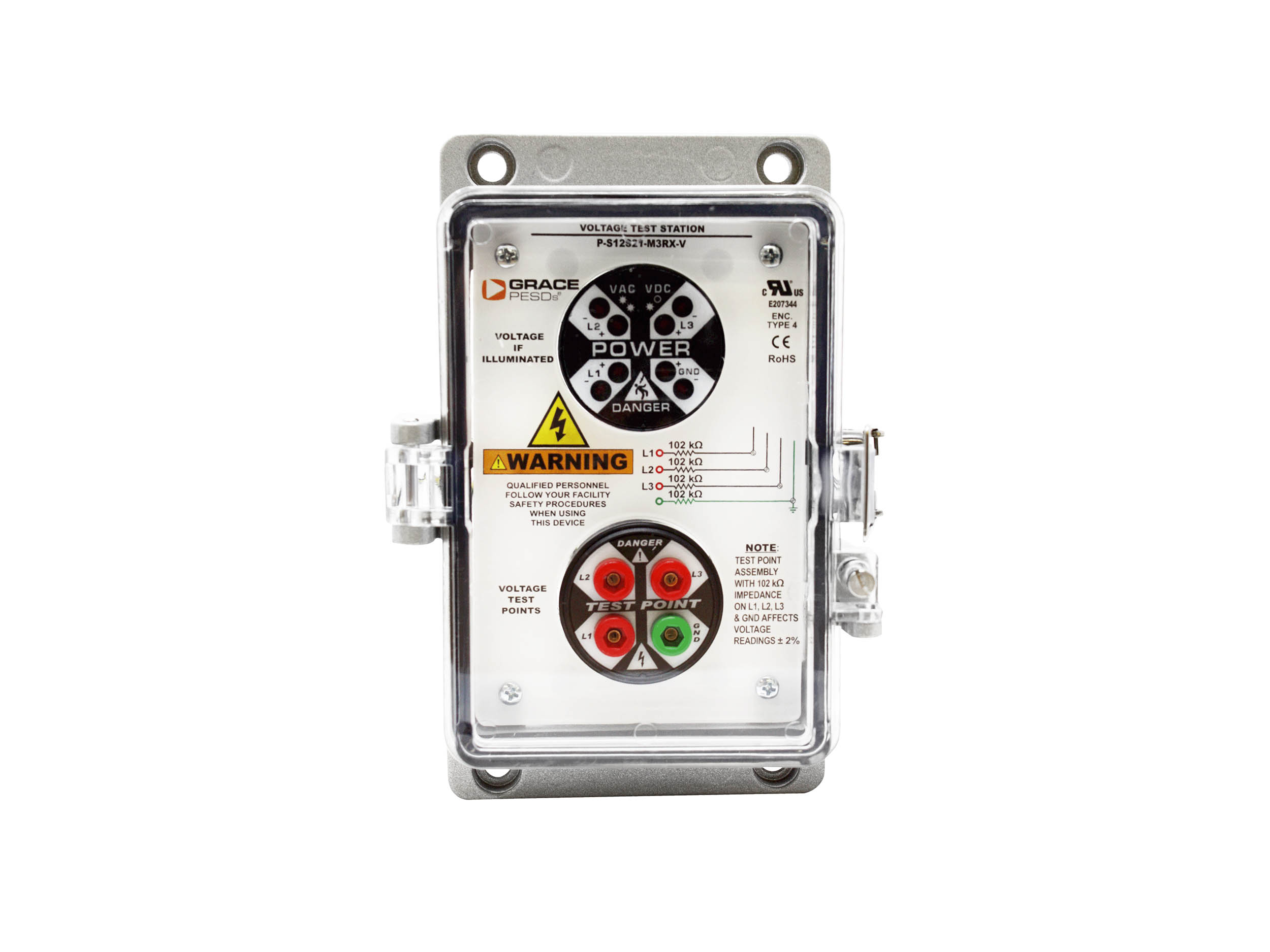

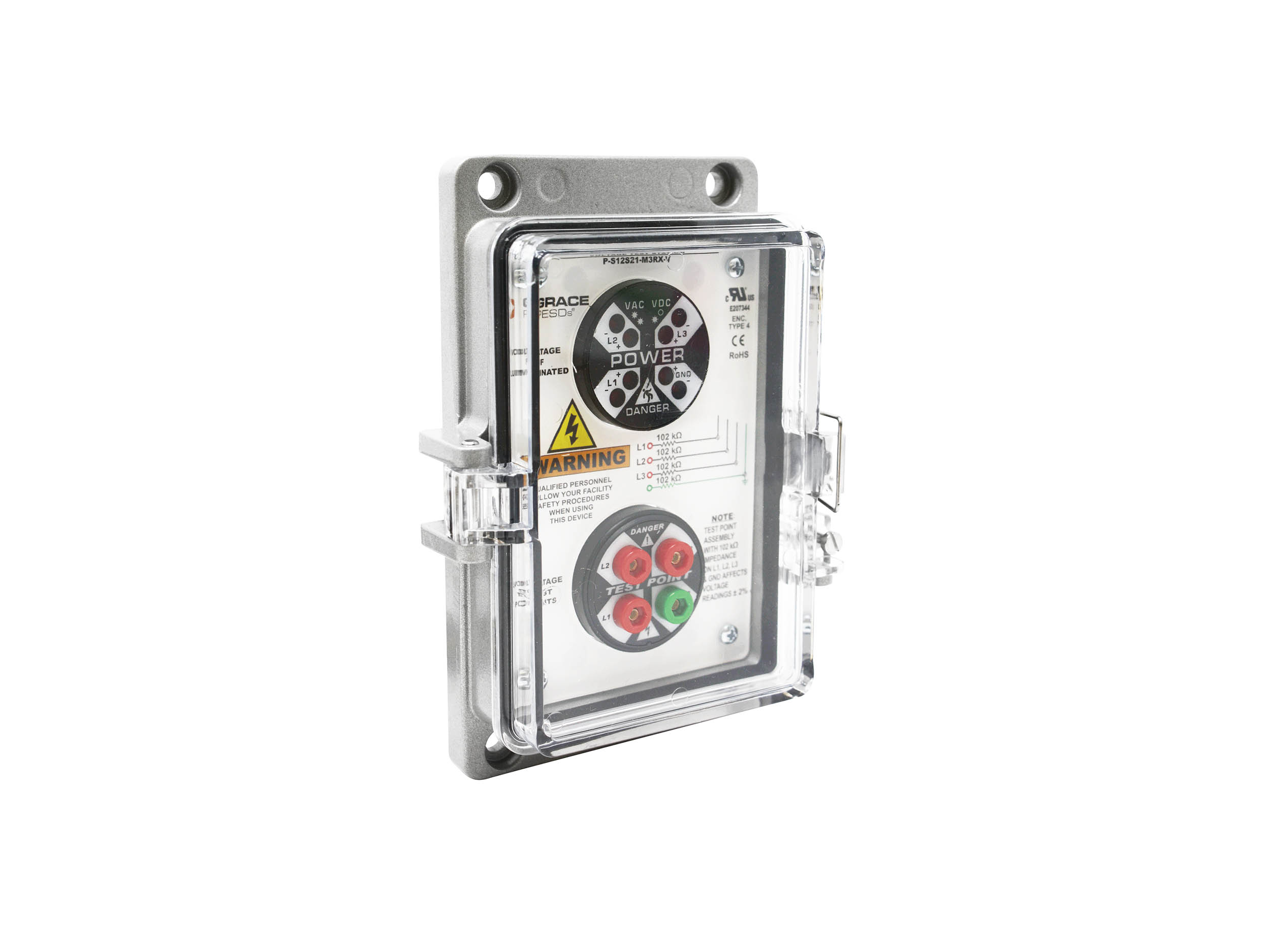

Grace Engineered Products P-S12S21-M3RX-V Voltatest Station
Part Number # P-S12S21-M3RX-V
SKU # 2415388
$523.38 / Each
Typical price:$540.00 / Each
Grace Technologies P-S12S21-M3RX-V Key Features
| Brand: | Grace Technologies |
|---|---|
| Part Number # : | P-S12S21-M3RX-V |
| SKU #: | 2415388 |
| Dimensions: | 3.78 in H x 6.50 in W x 1.60 in D |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -45 to 85 deg C Storage Temperature, -20 to 55 deg C Operational Temperature |
| Frequency Rating: | 50/60/400 Hz |
| Series: | P Series |
| Country of origin: | US |
| Material: | Cast Aluminum/Type 304 Stainless Steel/Polycarbonate |
| Manufacturer Name: | Grace Technologies |
| UNSPSC: | 32151708 |
| UPC: | 00084286410865 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$523.38 / Each
Typical price:$540.00 / Each
Quantity:
- GracePESDs, P-S12S21-M3RX-V, Voltage Test Station, Series: P Series, 50/60/400 Hz Frequency, Environmental Conditions: -45 to 85 deg C Storage Temperature, -20 to 55 deg C Operational Temperature, IP65 Enclosure, Cast Aluminum/Type 304 Stainless Steel/Polycarbonate, Gray, 3.78 in H x 6.50 in W x 1.60 in D Dimensions
P-S12S21-M3RX-V Application
Indoor/OutdoorP-S12S21-M3RX-V Includes
Non Flashing Voltage Indicator (R-3W-SR), Safe-Test Point (R-3MT), UL Type 4 Housing and Vertical/Flange MountP-S12S21-M3RX-V Item Features
- 30 to 600 VDC Operational Range DC or Stored Energy, M Size Housing
P-S12S21-M3RX-V Standards
IP65 Rated|UL Type 4|RoHS Compliant|CE Certified|UL E207344SKU #2415388Part Number #P-S12S21-M3RX-VUNSPSC32151708UPC00084286410865
Image provided may only be a representation of final product and may include optional equipment
