Part Number # 1414N4PHSSG
SKU # 2292959
Image Disclaimers Message
Brand: Hammond Manufacturing
1414N4PHSSG

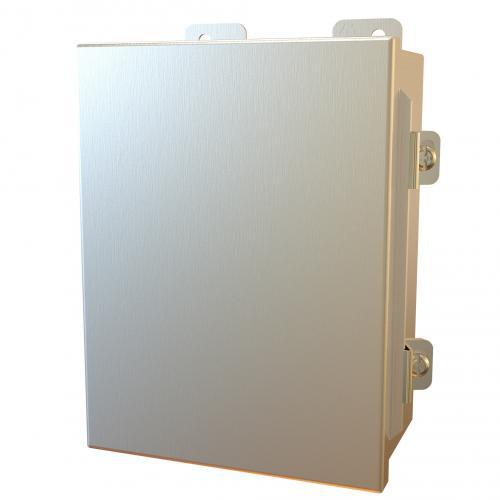

Hammond Manufacturing 1414N4PHSSG Junction Box
Part Number # 1414N4PHSSG
SKU # 2292959
$283.38 / Each
Typical price:$532.20 / Each
Hammond Manufacturing 1414N4PHSSG Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414N4PHSSG |
| SKU #: | 2292959 |
| Capacity: | 168, 168 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4/4X/12/13/IP66 |
| Panel Size: | 6.75 in H x 4.88 in W |
| Series: | 1414 N4 PH SS |
| Color: | Natural/Unpainted |
| Country of origin: | CA |
| Depth: | 3-1/2, 3-1/2 in |
| Height: | 8, 8 in |
| Material: | 14 ga 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 6, 6 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980354200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$283.38 / Each
Typical price:$532.20 / Each
Quantity:
Hammond Manufacturing 1414N4PHSSG Junction Box
Brand: Hammond Manufacturing
Part Number: 1414N4PHSSG
Hammond Junction Box, Series: 1414 N4 PH SS, 8 in Height, 6 in Width, 3-1/2 in Depth, NEMA 3R/4/4X/12/13/IP66 NEMA Rating, Hinged Cover, 6.75 in H x 4.88 in W Panel, 168 cu-in Capacity, Wall Mounting, 14 ga 304 Stainless Steel, Smooth Brushed, Natural/Unpainted
Additional Description: HAMM-1414N4PHSSG N4 HINGE SS BOX 8X6X3.5 X 6 X 3.5 - 304 SS
Catalog Description: N4X J Box, Hinge Cover w/panel - 8 x 6 x 3.5 - 304 SS
1414N4PHSSG Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings, Electrical Junction Boxes/Terminal Wiring Enclosures1414N4PHSSG Item Features
- Smooth, continuously welded seams ground smooth
- Welded brackets provide for enclosure mounting
- Continuous stainless steel hinged cover is secured with stainless steel clamps and screws
- Seamless poured-in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1414N4PHSSG Standards
CSA Certified|CE Marked|JIC EGP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2292959Part Number #1414N4PHSSGUNSPSC39121324UPC00623980354200
