Brand: Hammond Manufacturing
1414N4PHSSG4

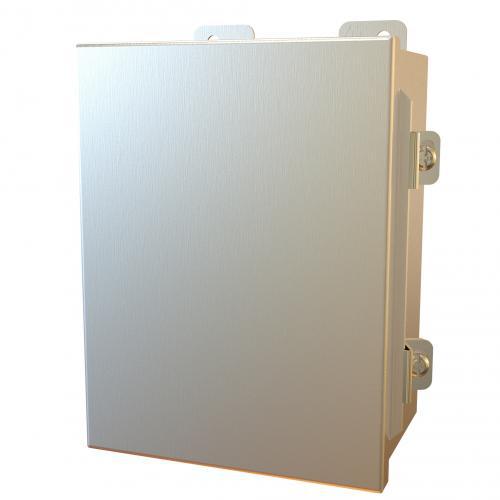

Hammond Manufacturing 1414N4PHSSG4 Junction Box
Part Number # 1414N4PHSSG4
SKU # 2431308
$288.22 / Each
Typical price:$541.30 / Each
Hammond Manufacturing 1414N4PHSSG4 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414N4PHSSG4 |
| SKU #: | 2431308 |
| Capacity: | 192 cu-in |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 3R/4X/13 |
| Panel Size: | 6.75 in H x 4.88 in W |
| Series: | 1414 N4 PH SS |
| Color: | Natural |
| Country of origin: | CA |
| Depth: | 4 in |
| Height: | 8 in |
| Material: | 304 Stainless Steel |
| Mounting type: | Wall |
| Width: | 6 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398035440 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$288.22 / Each
Typical price:$541.30 / Each
Quantity:
- Hammond Junction Box, Series: 1414 N4 PH SS, 8 in Height, 6 in Width, 4 in Depth, NEMA 3R/4X/13 NEMA Rating, Continuous Hinged Cover, 6.75 in H x 4.88 in W Panel, 192 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
1414N4PHSSG4 Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures1414N4PHSSG4 Item Features
- Formed from 14 ga 304 stainless steel
- Smooth, continuously welded seams
- Welded brackets provide for enclosure mounting
- Continuous stainless steel hinged cover is secured with stainless steel clamps and screws
- Seamless poured in place gasket
- Tapped studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion is a serious problem
1414N4PHSSG4 Standards
RoHS Compliant|CSA Certified|CE Certified|UL 508A|IEC 60529SKU #2431308Part Number #1414N4PHSSG4UNSPSC39121324UPC00062398035440
