Part Number # 1414PHC
SKU # 2398712
Image Disclaimers Message
Brand: Hammond Manufacturing
1414PHC

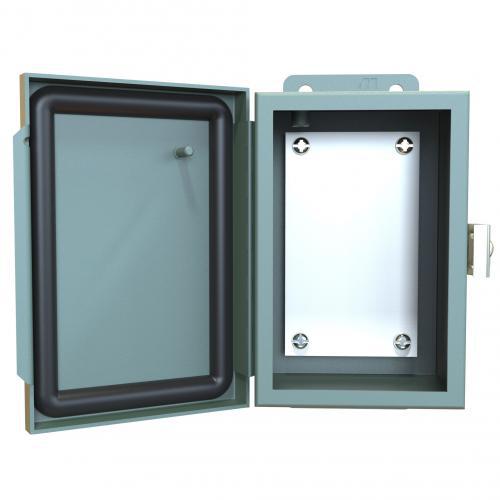

Hammond Manufacturing 1414PHC Junction Box
Part Number # 1414PHC
SKU # 2398712
$66.90 / Each
Typical price:$101.00 / Each
Hammond Manufacturing 1414PHC Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414PHC |
| SKU #: | 2398712 |
| Capacity: | 72 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Panel Size: | 2.88 in W x 4.88 in H |
| Series: | 1414 PH Series |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 3 in |
| Height: | 6 in |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 4 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398034780 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.90 / Each
Typical price:$101.00 / Each
Quantity:
- Hammond Junction Box, 1-Door, Series: 1414 PH Series, 6 in Height, 4 in Width, 3 in Depth, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 2.88 in W x 4.88 in H Panel, 72 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
1414PHC Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1414PHC Item Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
1414PHC Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2398712Part Number #1414PHCUNSPSC39121324UPC00062398034780
