Part Number # 1414PHG
SKU # 2428541
1414PHG
Hammond Manufacturing 1414PHG Junction Box
Part Number # 1414PHG
SKU # 2428541
$81.47 / Each
Typical price:$123.00 / Each
Hammond Manufacturing 1414PHG Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414PHG |
| SKU #: | 2428541 |
| Panel Size: | 4.88 in W x 6.75 in H |
| Series: | 1414 PH Series |
| Material: | Mild Steel |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398034870 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$81.47 / Each
Typical price:$123.00 / Each
Quantity:

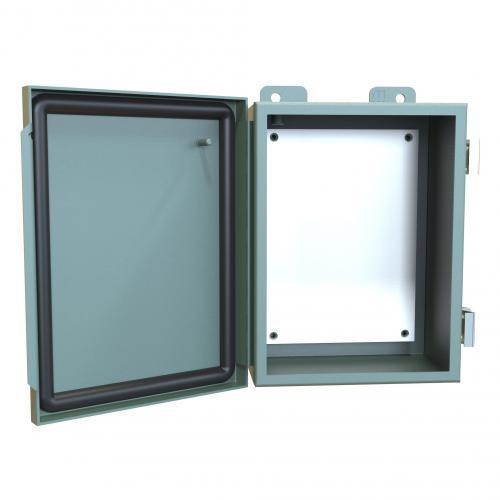

Hammond Manufacturing 1414PHG Junction Box
Brand: Hammond Manufacturing
Part Number: 1414PHG
Hammond® Junction Box, 1-Door, Series: 1414 PH Series, 8 in Height, 6 in Width, 3-1/2 in Depth, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 6.75 in H Panel, 168 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Additional Description: HAMM-1414PHG NEMA12 HNGD CVR 8X6X3.5
Catalog Description: N12 J Box, Hinge Cover w/panel - 8 x 6 x 3.5 - Steel/Gray
1414PHG Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1414PHG Item Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
1414PHG Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2428541Part Number #1414PHGUNSPSC39121324UPC00062398034870
Image provided may only be a representation of final product and may include optional equipment
