Part Number # 1414PHK8
SKU # 2437000
Image Disclaimers Message
1414PHK8

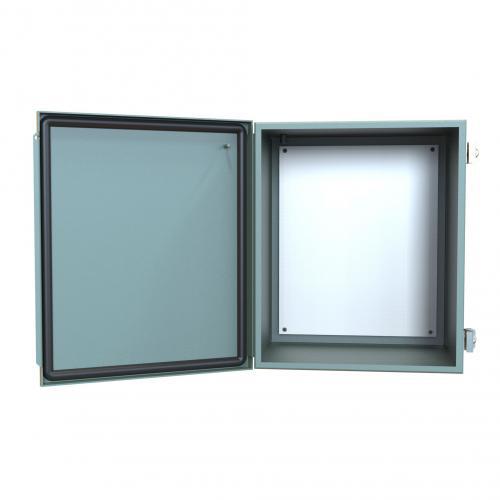

Hammond Manufacturing 1414PHK8 Junction Box
Part Number # 1414PHK8
SKU # 2437000
$159.66 / Each
Typical price:$241.05 / Each
Hammond Manufacturing 1414PHK8 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414PHK8 |
| SKU #: | 2437000 |
| Capacity: | 960 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Panel Size: | 8.88 in W x 10.75 in H |
| Series: | 1414 PH Series |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 8 in |
| Height: | 12 in |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 10 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398035110 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$159.66 / Each
Typical price:$241.05 / Each
Quantity:
- Hammond Junction Box, 1-Door, Series: 1414 PH Series, 12 in Height, 10 in Width, 8 in Depth, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 8.88 in W x 10.75 in H Panel, 960 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
1414PHK8 Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1414PHK8 Item Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
- Models larger than 4 in x 4 in include a removable 14 ga inner panel
1414PHK8 Standards
CSA Certified|CE Marking|ECCN: EAR99|IEC 60529|RoHS Compliant|UL 508ASKU #2437000Part Number #1414PHK8UNSPSC39121324UPC00062398035110
