Part Number # 1414PHM6
SKU # 2276055
1414PHM6
Hammond Manufacturing 1414PHM6 Junction Box
Part Number # 1414PHM6
SKU # 2276055
$167.97 / Each
Typical price:$253.60 / Each
Hammond Manufacturing 1414PHM6 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414PHM6 |
| SKU #: | 2276055 |
| Panel Size: | 10.88 in W x 12.75 in H, 12.75 in H x 10.88 in W |
| Series: | 1414 PH, 1414 PH Series |
| Material: | Mild Steel |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980352008 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$167.97 / Each
Typical price:$253.60 / Each
Quantity:

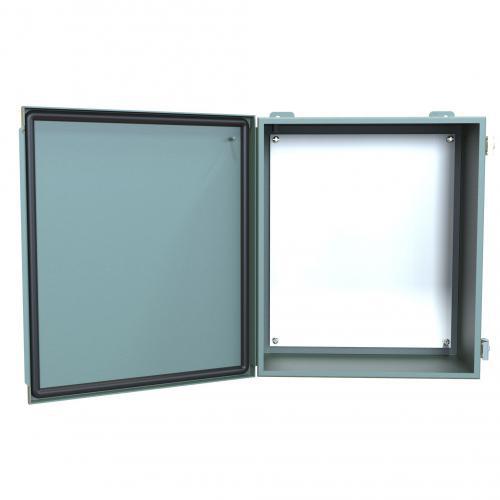

Hammond Manufacturing 1414PHM6 Junction Box
Brand: Hammond Manufacturing
Part Number: 1414PHM6
Hammond Junction Box, 1-Door, Series: 1414 PH Series, 14 in Height, 12 in Width, 6 in Depth, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 10.88 in W x 12.75 in H Panel, 1008 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Additional Description: HAMM-1414PHM6 NEMA12 HNGD CVR 14X12X6 X 12 X 6 - STEEL/GRAY
Catalog Description: N12 J Box, Hinge Cover w/panel - 14 x 12 x 6 - Steel/Gray
1414PHM6 Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1414PHM6 Item Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
- Models larger than 4 in x 4 in include a removable 14 ga inner panel
1414PHM6 Standards
CSA Certified|CE Marking|ECCN: EAR99|IEC 60529|RoHS Compliant|UL 508ASKU #2276055Part Number #1414PHM6UNSPSC39121324UPC00623980352008
Image provided may only be a representation of final product and may include optional equipment
