Part Number # 1414PHMH6
SKU # 2317175
Image Disclaimers Message
1414PHMH6

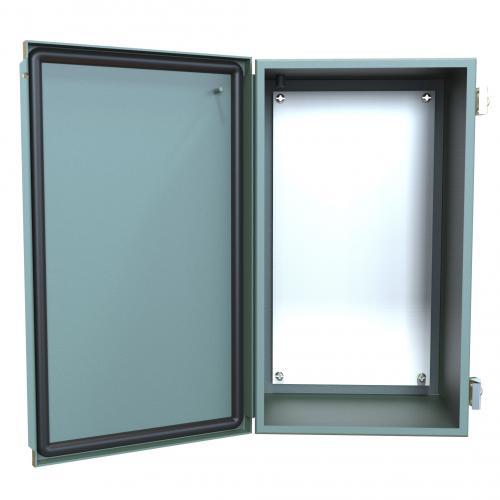

Hammond Manufacturing 1414PHMH6 Junction Box
Part Number # 1414PHMH6
SKU # 2317175
$140.82 / Each
Typical price:$212.60 / Each
Hammond Manufacturing 1414PHMH6 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1414PHMH6 |
| SKU #: | 2317175 |
| Capacity: | 672, 672 cu-in |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 12/13 |
| Panel Size: | 10.88 in W x 12.75 in H, 12.75 in H x 10.88 in W |
| Series: | 1414 PH, 1414 PH Series |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | CA |
| Depth: | 6, 6 in |
| Height: | 14, 14 in |
| Material: | Mild Steel |
| Mounting type: | Wall |
| Width: | 8, 8 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00623980351704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$140.82 / Each
Typical price:$212.60 / Each
Quantity:
- Hammond Junction Box, 1-Door, Series: 1414 PH Series, 14 in Height, 8 in Width, 6 in Depth, NEMA 12/13 NEMA Rating, Continuous Hinged Cover, 10.88 in W x 12.75 in H Panel, 672 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
1414PHMH6 Application
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures1414PHMH6 Item Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuously hinged cover is secured with stainless steel clamps and plated steel screws
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
1414PHMH6 Standards
CSA Certified|CE Marking|IEC 60529|RoHS Compliant|UL 508ASKU #2317175Part Number #1414PHMH6UNSPSC39121324UPC00623980351704
